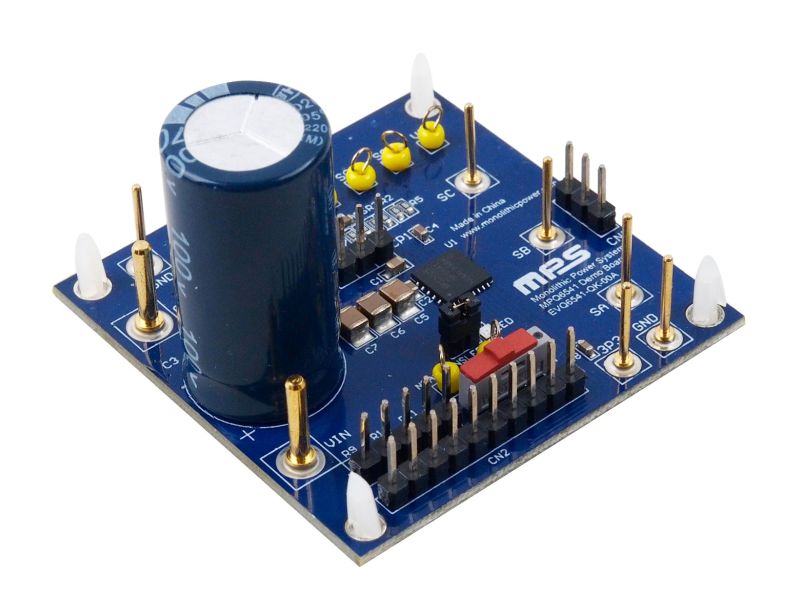

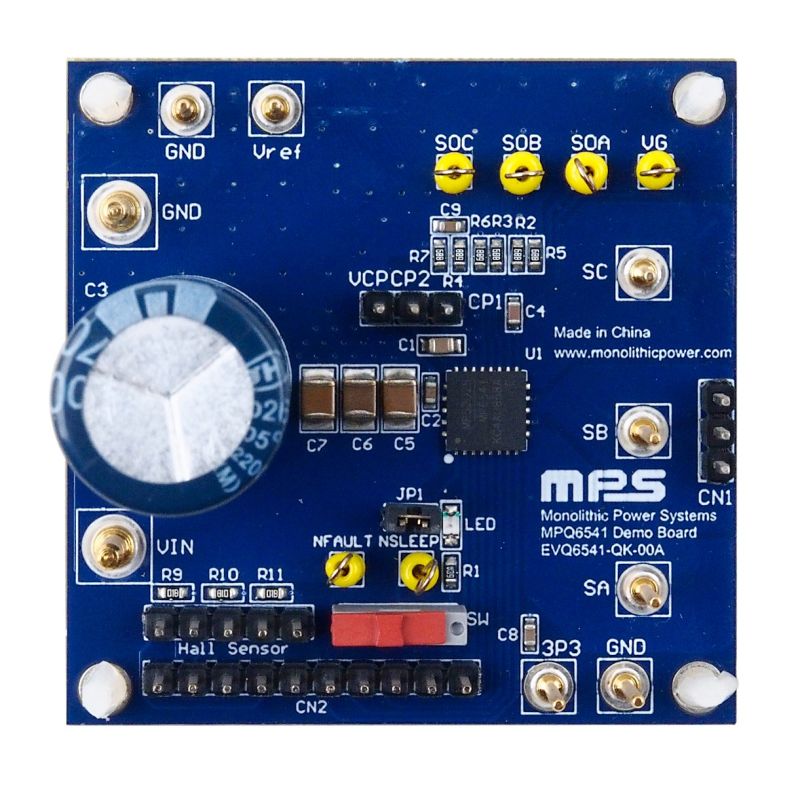

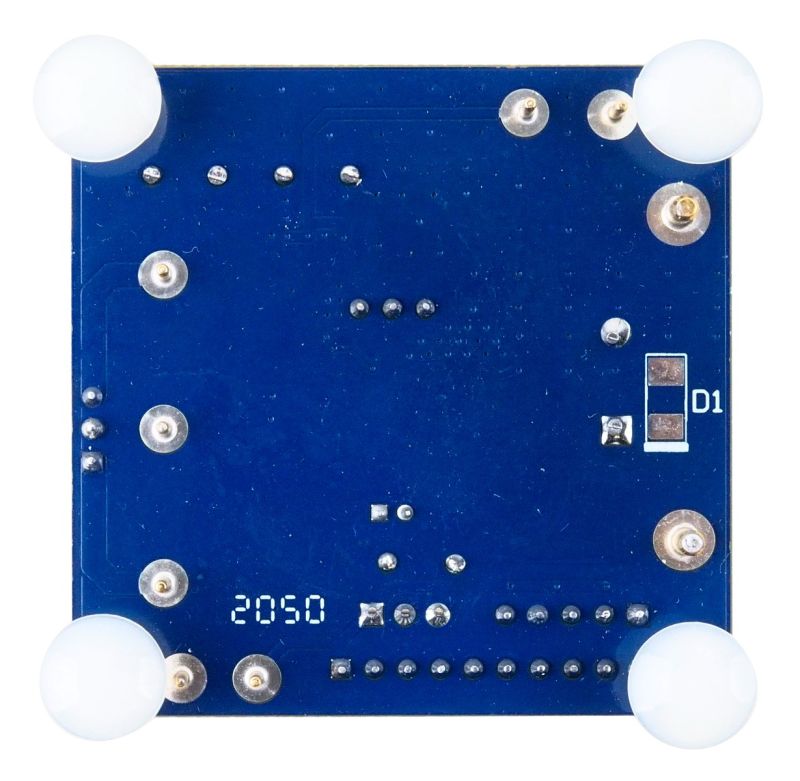

The EVQ6541-QK-00A is an evaluation board designed to demonstrate the capabilities of the MPQ6541-AEC1, a three-phase brushless DC (BLDC) motor driver. It operates from a wide 4.75V to 40V input voltage (VIN) range.
The MPQ6541-AEC1 has three integrated half-bridges consisting of six N-channel power MOSFETs. The rotor position information is provided by the Hall sensors assembled in the motor. The driver control signals are generated via an external controller, such as a microcontroller unit (MCU) or field-programmable gate array (FPGA).
The MPQ6541-AEC1 is available in a QFN-26 (6mmx6mm) package.
