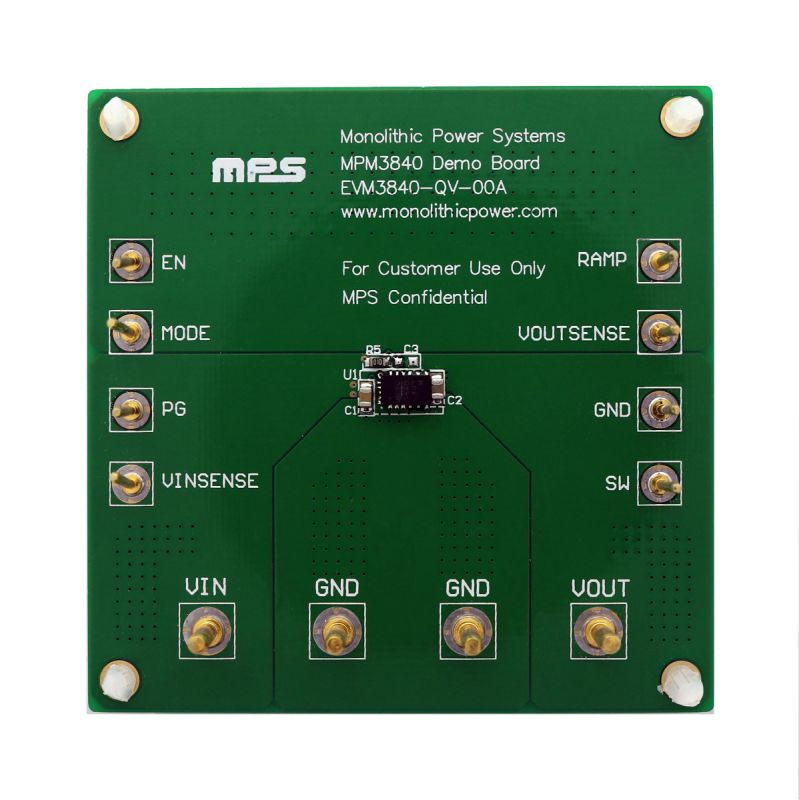

EVM3840-QV-00A

The MPM3840 is a monolithic step-down converter with built-in internal power MOSFETs and inductor. The DC-DC module is housed in a small surface QFN package which is sized 3mm width by 5mm length by 1.6mm height. It can provide 4A continuous output current from a 2.8V to 5.5V input voltage with excellent load and line regulation. The MPM3840 is ideal for powering portable equipment that runs with a single cell Lithium-Ion (Li+) Battery. The output voltage can be regulated as low as 0.6V. Only input, output capacitors and FB resistors are needed to complete the design.

The Constant-On-time (COT) control scheme provides fast transient response high light-load efficiency and easy loop stabilization. Fault condition protection includes cycle-by-cycle current limit and thermal shutdown.

The MPM3840 requires a minimum number of readily available standard external components and is available in an ultra-small QFN-20 (3mmx5mm) package.
