EV2229-Q-00A

アクティブ

High-Efficiency, 21V, 6A, Synchronous Step-Down Converter Evaluation Board

  • 個数 価格
  • 1
    ¥2,716.25 /単位


評価ボード詳細をご覧ください。
エンジニアにコンタクト、もしくは見積もり入手

製品説明

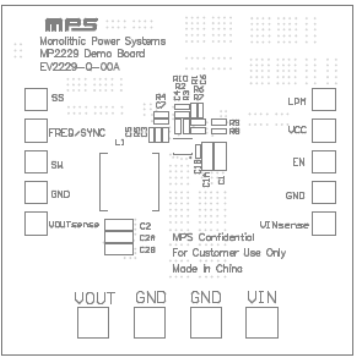

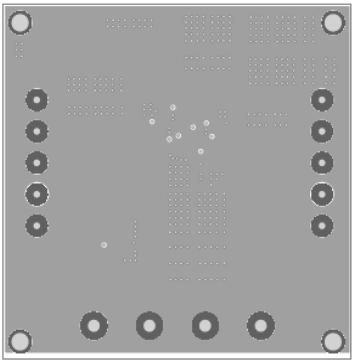

The EV2229-Q-00A is the evaluation board for MP2229, a high-frequency, synchronous, rectified, step-down switch mode converter with internal power MOSFETs. It offers a very compact solution to achieve 6A of continuous output current over a wide input supply range with excellent load and line regulation. The MP2229 has synchronous mode operation for higher efficiency over the output current load range. Current mode operation provides fast transient response and eases loop stabilization. Full protection features include over-current protection and thermal shutdown.

The MP2229 requires a minimal number of readily available, standard external components, and is available in a space-saving QFN-14 (3mmx3mm) package.

製品の特長

  • Wide 4.5V to 21V Operating Input Range
  • 6A Output Current
  • Low 40mΩ/18mΩ RDS(ON) of Internal Power MOSFETs
  • Programmable Switching Frequency
  • Frequency SYNC from 300kHz to 2MHz External Clock
  • Low-Power Mode Selectable by External Signal
  • External Soft Start
  • Pre-Bias Start-Up
  • OCP with Hiccup Mode
  • Thermal Shutdown
  • Output Adjustable from 0.6V
  • Available in a QFN-14 (3mmx3mm) Package

パラメータ


High Efficiency, 21V, 6A, Synchronous Step-Down Converter with External Sync, Low-Power Mode, and External Soft Start

The MP2229 is a high-frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a compact solution to achieve a 6A continuous output current over a wide input supply range with excellent load and line regulation. The MP2229 has synchronous-mode operation for higher efficiency over the output current load range.

Current-mode operation provides fast transient response and eases loop stabilization. Full protection features include over-current protection (OCP) and thermal shutdown (TSD).

The MP2229 requires a minimal number of readily available, standard, external components and is available in a space-saving 3mm x 3mm 14-pin QFN package.

Configurable

品質方針、証明書および信頼性レポート
すべてのMPS部品は鉛フリー、ハロゲンフリーで、RoHS指令に準拠しています。詳細については、環境セクションを参照してください。
