EV2225-J-00A

アクティブ

High-Efficiency, 5A, 18V, 500kHz, Synchronous Step-Down Switch Evaluation Board

  • 個数 価格
  • 1
    ¥2,716.25 /単位

在庫あり

Arrives 3-4 business days.
Shipping only $5 per order.


評価ボード詳細をご覧ください。
エンジニアにコンタクト、もしくは見積もり入手
すべての購入オプションを見る
代理店価格と詳細はこちらをご参照ください

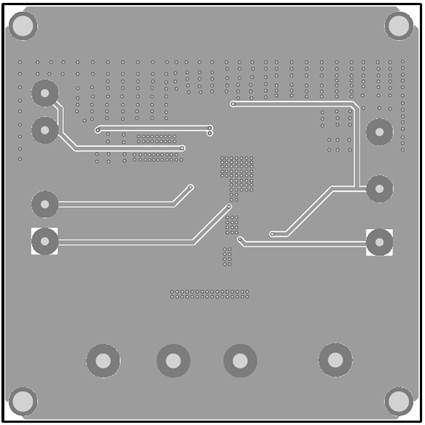

製品説明

The EV2225-J-00A demonstrates MPS’s MP2225, a high-frequency, synchronous, rectified, step-down converter with built-in high-side and low-side power MOSFETs. The MP2225 offers a very compact solution to achieve a 5A continuous output current with excellent load and line regulation over a wide input supply range. The MP2225 has synchronous mode operation for higher efficiency over the output current load range.

Current-mode operation provides fast transient response and eases loop stabilization. Full protection features include over-current protection and thermal shutdown.

The MP2225 is available in a space-saving, 8-pin TSOT23 package.

製品の特長

  • Wide 4.5V to 18V Operating Input Range
  • Adjustable Output Voltage From 0.6V
  • 5A Continuous Output Current
  • 47mΩ/18mΩ Low RDS(ON) Internal Power MOSFETs
  • High Efficiency Up to 97%
  • Fixed 500kHz Switching Frequency
  • Synchronizes from a 200kHz to 2MHz External Clock
  • 2.4ms Internal Soft-Start Time
  • 1% Reference Accuracy at Room Temperature
  • Power-Save Mode
  • OCP Protection and Hiccup Mpde
  • Available in an 8-Pin TSOT23

パラメータ


5A, 18V, 500kHz, High Efficiency Synchronous Step Down Converter

The MP2225 is a high-frequency, synchronous, rectified, step-down, switch-mode converter with built-in power MOSFETs. It offers a very compact solution to achieve a 5A output current with excellent load and line regulation over a wide input supply range. The MP2225 has synchronous mode operation for higher efficiency over the output current load range. Current-mode operation provides fast transient response and eases loop stabilization. Full protection features include over-current protection and thermal shut down. The MP2225 requires a minimal number of readily-available standard external components, and is available in a space-saving 8-pin TSOT23 package.

Configurable


High-Efficiency, 4A, 18V, 500kHz Synchronous Step-Down Converter

The MP2224 is a high-efficiency, synchronous, rectified, step-down, switch-mode converter with built-in power MOSFETs. It offers a very compact solution to achieve a 4A output current with excellent load and line regulation over a wide input supply range. The MP2224 has synchronous mode operation for higher efficiency over the output current load range. Current-mode operation provides fast transient response and eases loop stabilization. Full protection features include over-current protection and thermal shutdown. The MP2224 requires a minimal number of readily available, standard, external components and is available in a space-saving 8-pin TSOT23 package.

Configurable

品質方針、証明書および信頼性レポート
すべてのMPS部品は鉛フリー、ハロゲンフリーで、RoHS指令に準拠しています。詳細については、環境セクションを参照してください。
