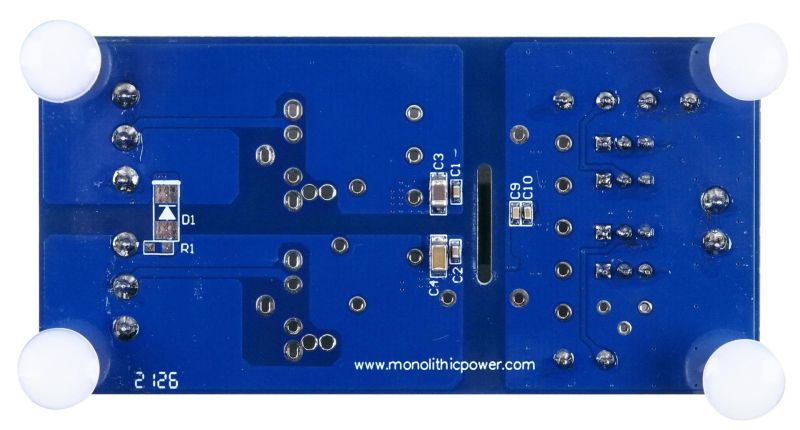

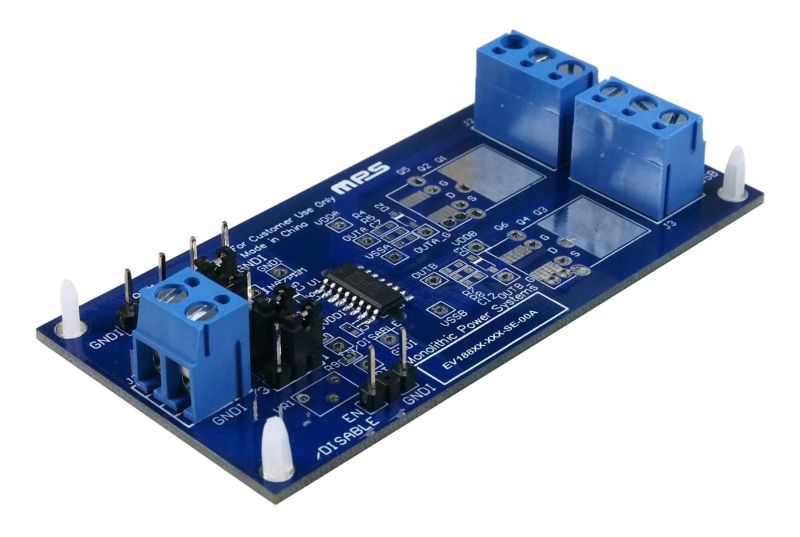

The EV188XX-XXX-SE-00A is an evaluation board designed to demonstrate the capabilities of the MP188xx family, a dual-channel, isolated gate driver solution for driving power switching devices with a short propagation delay and minimal pulse-width distortion.
By utilizing MPS’s proprietary, capacitive-based isolation technology, the SOIC narrow-body (NB) package option can provide up to 3kVRMS of withstand voltage (per UL 1577).
The MP188xx family can also provide a common-mode transient immunity (CMTI) rating exceeding 100kV/µs between the input side and output driver. With these advanced features, the driver operates at high efficiency, high power density, and with robustness across a wide variety of automotive power applications.
It is recommended to read the datasheet of the MP18831, MP18851, and MP18871 prior to making any changes to the EV188XX-XXX-SE-00A.
