MPQ6590A-AEC1
Active Part Numbers:
MPQ6590AGLE-AEC1-Z MPQ6590AGLE-AEC1-P
Meaning of P & Z
Related Products

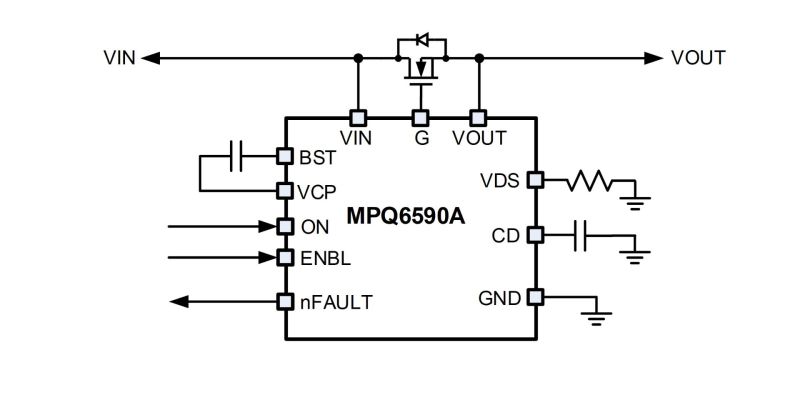

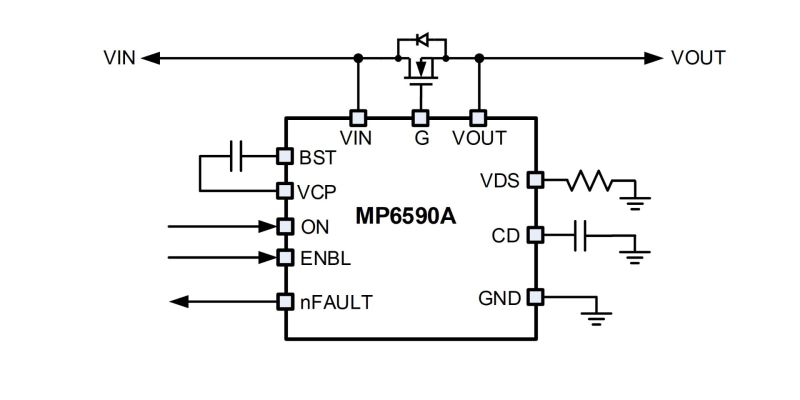

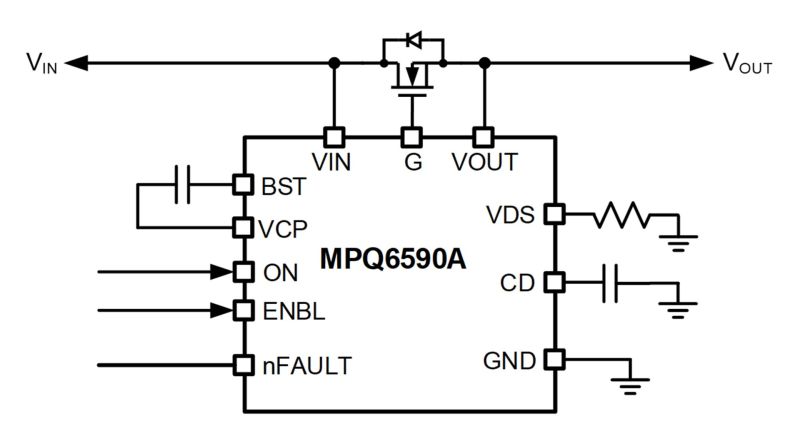

The MP6590A is a driver for a high-side N-channel power MOSFET (HS-FET). It generates a gate drive voltage above the input supply voltage to drive an N-channel gate. It can source and sink 1A of current to quickly enable and disable large power MOSFETs. The MP6590A can operate from supply voltages up to 80V.
Internal safety features include over-current protection (OCP), under-voltage lockout (UVLO), and thermal shutdown.

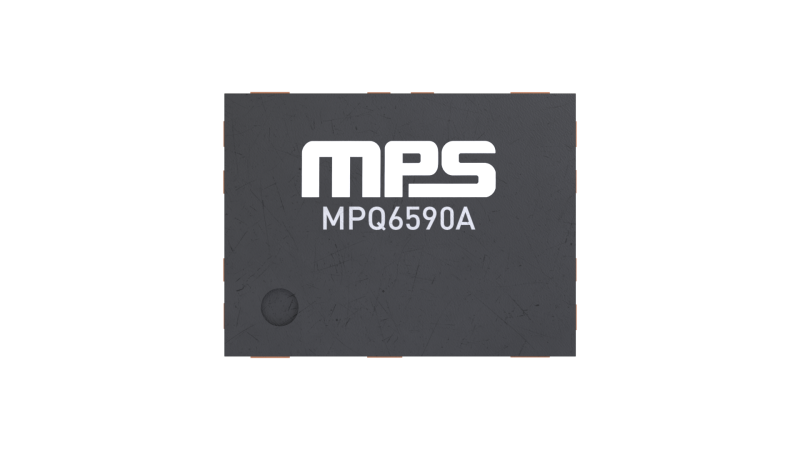

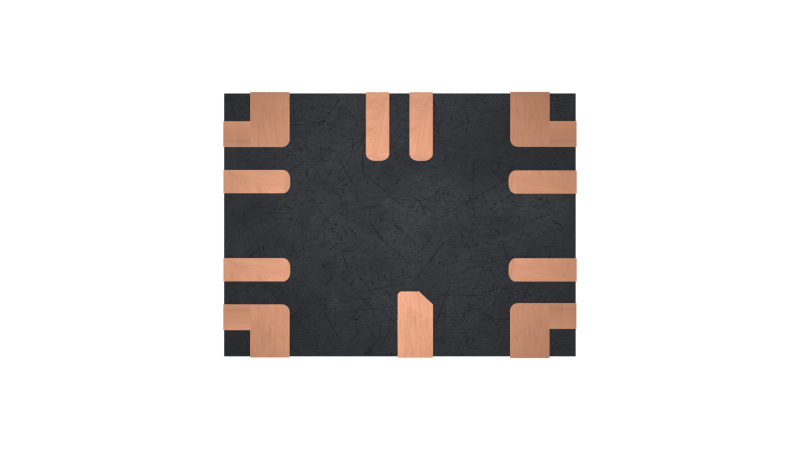

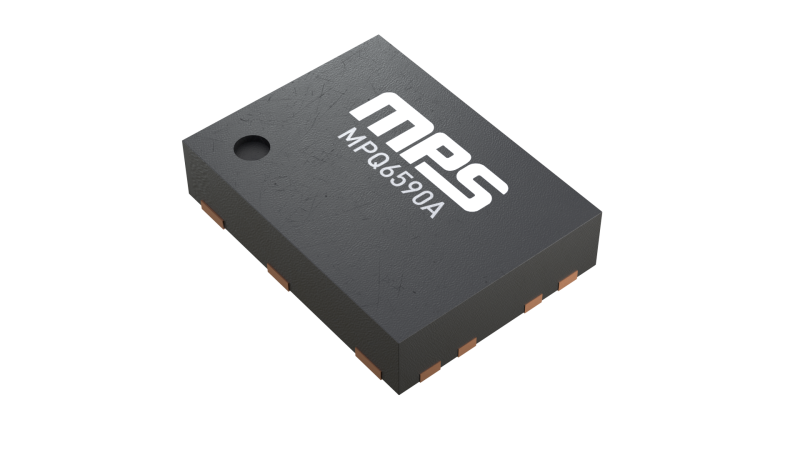

The MP6590A is available in a QFN-11 (3mmx4mm) package with wettable flanks. A low-voltage (LV) version with a lower gate drive voltage and UVLO is available on special order.
