OrderMP6539C
Active Part Numbers:
MP6539CGV-Z MP6539CGV-P
Meaning of P & Z
Related Products
EV6539C-V-00A 80V, Three-Phase BLDC Motor Pre-Driver Evaluation Board
The EV6539C-V-00A is an evaluation board designed to demonstrate the capabilities of the MP6539C, a 3-phase brushless DC (BLDC) motor pre-driver.

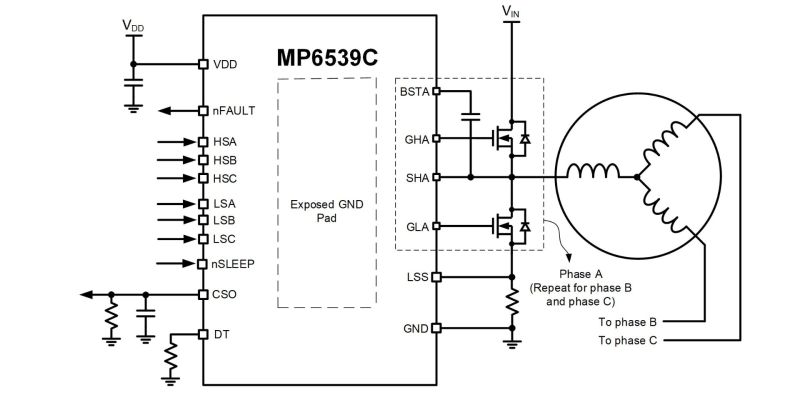

The MP6539C is capable of driving three half-bridges, consisting of 6 N-channel power MOSFETs, up to 80V. The MP6539C uses a bootstrap (BST) capacitor (CBST) to generate a supply voltage for the high-side MOSFET (HS-FET) driver. An internal charge pump maintains the high-side (HS) gate drive if the output is held high for an extended period.
Internal safety features include shoot-through protection, adjustable dead-time (DT) control, under-voltage lockout (UVLO), and thermal shutdown.
The driving control signals are generated by the external controller, such as the microcontroller unit (MCU) or field-programmable gate array (FPGA).
The MP6539C is available in a QFN-28 (4mmx5mm) package with an exposed thermal pad.
