MPQ29261-AEC1

MPQ29261-AEC1

18A, Synchronous Step-Down Converter with 2-Bit VID, AEC-Q100 Qualified

Datasheet

Description

The MPQ29261-AEC1 is a fully integrated, high-frequency, synchronous, rectified, step-down switch-mode converter with 2-bit voltage identification (VID). It offers an ultra-compact solution that can achieve up to 18A of continuous output current (I_OUT), with an adjustable current limit (I_LIMIT).

MPS’s proprietary switching loss reduction technique and internal low on resistance (R_DS(ON)) MOSFETs allow the device to operate at high efficiency across the wide I_OUT load range.

Adaptive constant-on-time (COT) control provides fast transient response and eases loop stabilization. The DC auto-tune loop works with the differential remote sense to provide excellent load and line regulation.

Full protection features include over-current limitation (OCL), over-voltage protection (OVP), under-voltage protection (UVP), and thermal shutdown.

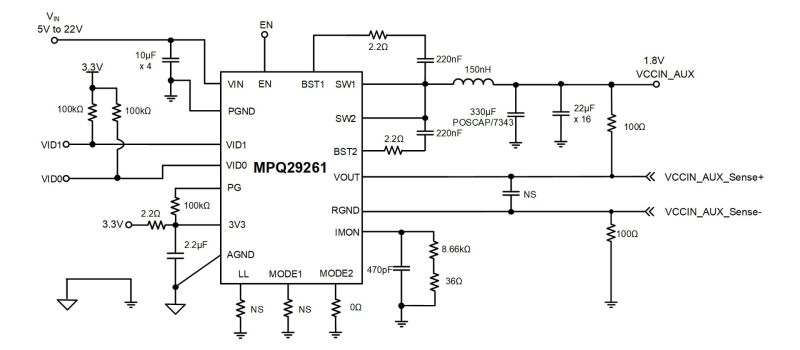

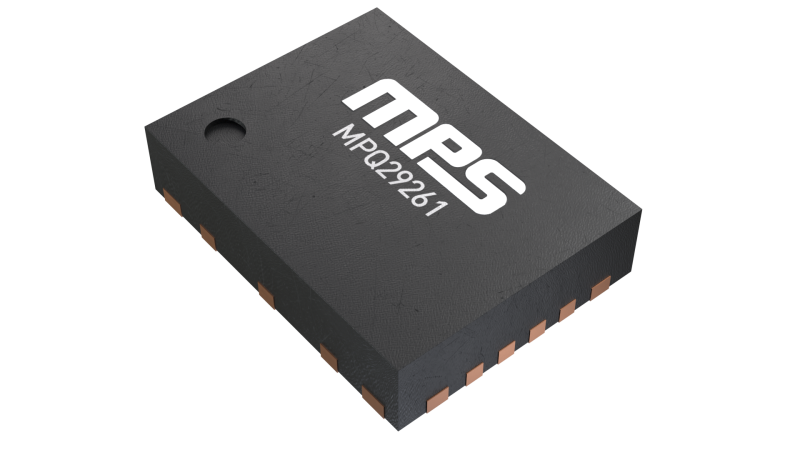

The MPQ29261-AEC1 requires a minimal number of standard external components, and it is available in a QFN-19 (3mmx4mm) package. It is AEC-Q100 qualified.

Features & Benefits

Wide Operating Input Voltage (V_IN) Range
2-Bit Voltage Identification (VID)
190µA Low Quiescent Current (I_Q)
18A Continuous Output Current (I_OUT)
IMON Function
Selectable Load Line
Adjustable Current Limit (I_LIMIT)
800kHz Fixed Switching Frequency (f_SW)
Adaptive Constant-On-Time (COT) Control for Fast Transient Response
Remote Differential Sense
Stable with POSCAP and Ceramic Capacitors
Internal Soft Start (SS)
Output Discharge
Over-Current Limitation (OCL), Over-Voltage Protection (OVP), Under-Voltage Protection (UVP), and Thermal Shutdown

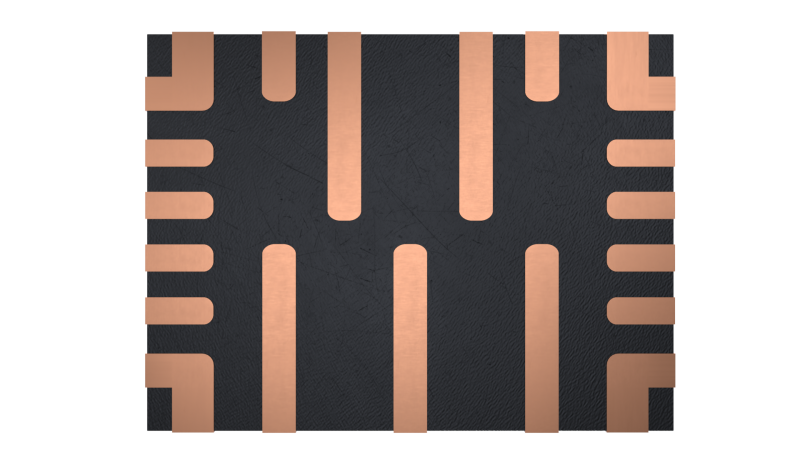

Available in a QFN-19 (3mmx4mm) Package with Wettable Flanks
Available in AEC-Q100 Grade 1
