Order- MPQ2179A-AEC1
MPQ2179A-AEC1
6V, 3A, 2.4MHz, Synchronous Step-Down Converter with Power Good and Soft Start, AEC-Q100 Qualified
Session textval
Session Titefor popup
Description
The MPQ2179A is a monolithic, step-down switch-mode converter with integrated internal power MOSFETs. It can achieve up to 3A of output current (IOUT) across a 2.5V to 6V input voltage (VIN) range, with excellent load and line regulation. The output voltage (VOUT) can be regulated to as low as 0.6V.
The MPQ2179A is ideal for a wide range of applications, including automotive clusters, telematics, and infotainment systems.
Constant-on-time (COT) control provides fast transient response and eases loop stabilization. Full protection features include cycle-by-cycle current limiting, output over-voltage protection (OVP), and thermal shutdown.

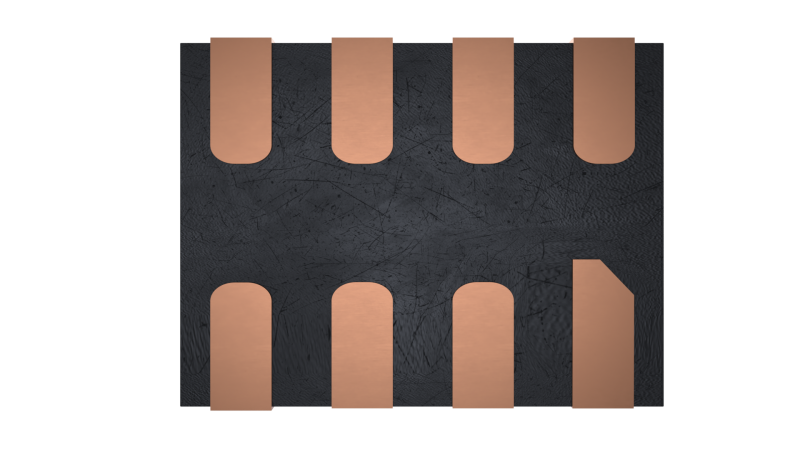

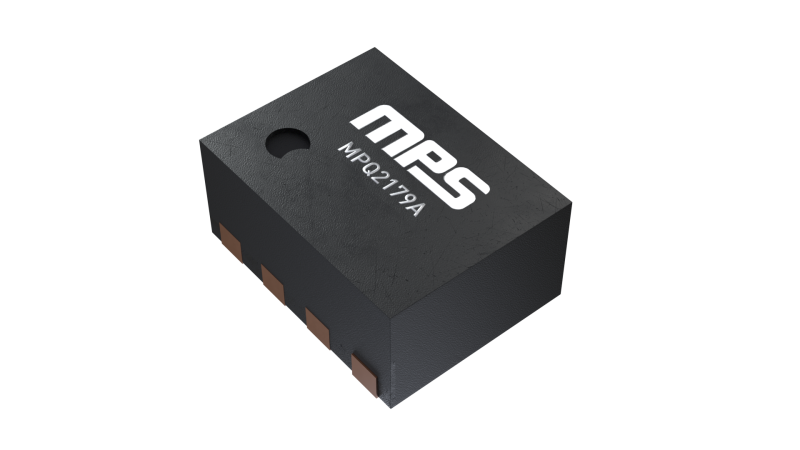

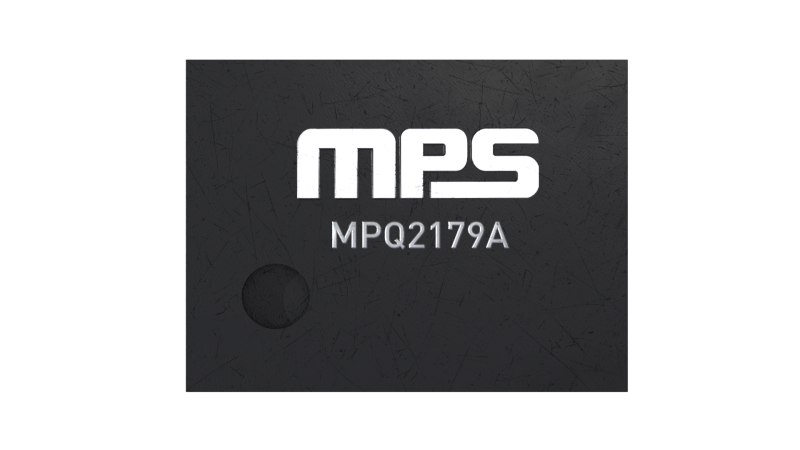

The MPQ2179A requires a minimal number of readily available, standard external components, and is available in a compact QFN-8 (1.5mmx2mm) package.
-
Show more
Show less
Features & Benefits
- Designed for Automotive Applications:
- Wide 2.5V to 6V Operating Input Voltage (VIN) Range
- Up to 3A Output Current (IOUT)
- 1% Feedback (FB) Accuracy
- -40°C to +150°C Operating Junction Temperature (TJ) Range
- Available in AEC-Q100 Grade 1
- Increased Battery Life:
- 21μA Sleep Mode Quiescent Current (IQ)
- Advanced Asynchronous Modulation (AAM) Mode for Increased Efficiency under Light-Load Conditions
- High Performance for Improved Thermals:
- 65mΩ and 35mΩ Integrated Internal Power MOSFETs
- Optimized for EMC and EMI Reduction:
- 4MHz Switching Frequency (fSW)
- MeshConnectTM Flip-Chip Package
- Optimized for Board Size and BOM:
- Integrated Internal Power MOSFETs
- Integrated Compensation Network
- Available in a Compact QFN-8 (1.5mmx2mm) Package
- Fixed Output Options: 0.7V, 0.75V, 0.8V, 0.85V, 0.88V, 0.9V, 1.05V, 1V, 1.1V, 1.2V, 1.25V, 1.5V, 1.8V, 2.5V, 2.8V, and 3.3V
- Additional Features:
- Enable (EN) for Power Sequencing
- Power Good (PG)
- 100% Duty Cycle
- External Soft Start (SS) Control
- Output Discharge
- Over-Voltage Protection (OVP) and Short-Circuit Protection (SCP) with Hiccup Mode
- Available in a Wettable Flank Package
- MPSafeTM QM (Documentation Available)
Active Part Numbers:
MPQ2179AGQHE-AEC1-Z MPQ2179AGQHE-AEC1-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
