MPQ2169

New

6V, Dual 1.4A/1.4A or 2A/0.8A Low Quiescent Current, Synchronous Buck with PG and SS AEC-Q100 Qualified



Talk to an Engineer or get a Quote

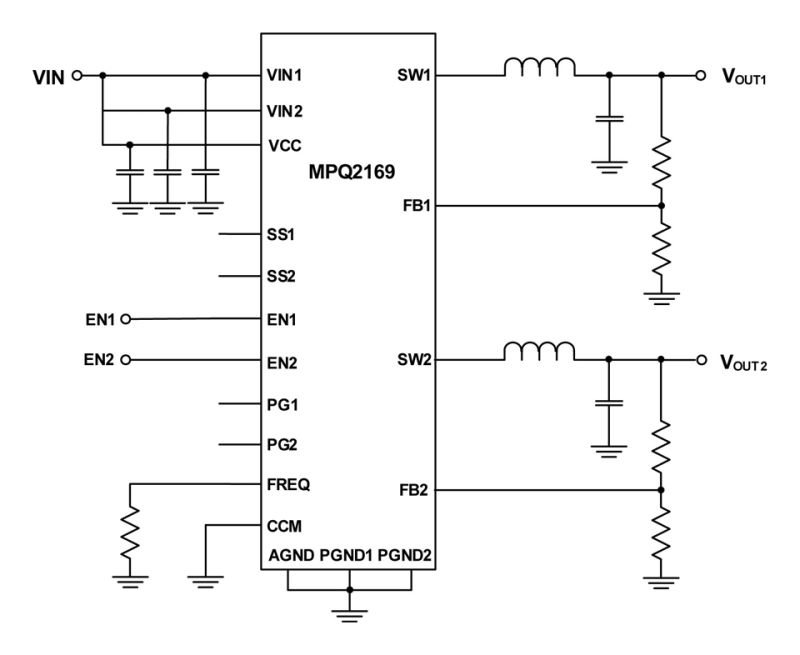

Product Description

The MPQ2169 is an internally compensated, dual, PWM, synchronous, step-down regulator that operates from a 2.7V to 6V input and generates an output voltage as low as 0.6V. The MPQ2169 can be configured as a 1.4A/1.4A or 2A/0.8A output current regulator and is ideal for powering portable equipment that runs on a single-cell lithium-ion (Li+) battery due to its low 60µA quiescent current.

The MPQ2169 integrates dual, 60mΩ, high-side switches and 25mΩ synchronous rectifiers to achieve high efficiency without an external Schottky diode. The MPQ2169 has peak-current-mode control and internal compensation and is capable of low dropout configurations. Both channels can operate at 100% duty cycle.

Full protection features include cycle-by-cycle current limit and thermal shutdown.

The MPQ2169 requires a minimal number of readily available, standard, external components and is available in QFN-18 (2mmx3mm) and QFN-18 (2.5mmx3.5mm) packages.

Product Features

  • 2.7V to 6V OperatingInputRange
  • 1.4A/1.4A or 2A/0.8A Continuous Current
  • 60mΩ/25mΩ RDS(ON)
  • Programmed Frequency up to 3MHz
  • External Sync Clock up to 3MHz
  • 180° Phase-Shifted Operation
  • Power Good (PG) Indicators
  • External Soft Start (SS) and Track
  • Adjustable Advanced Asynchronous Mode (AAM) or Forced Continuous Conduction Mode (FCCM)
  • Peak Efficiency >90%
  • Output Adjustable from 0.6V to 5.5V
  • 100% Duty Cycle Operation
  • 60µA Quiescent Current
  • Cycle-by-Cycle Over-Current Protection (OCP)
  • Short-Circuit Protection (SCP) with Hiccup Mode and Valley Current Detection
  • Thermal Shutdown
  • Available in QFN-18 (2mmx3mm) and QFN-18 (2.5mmx3.5mm) Packages
  • Available in a Wettable Flank Package
  • Available in AEC-Q100 Grade-1

Parametrics

  • fsw (max) (kHz)3000
  • Vin (min) (V)2.7
  • Vin (max) (V)6
  • Iout (max) (A)1.4
  • Vfb (V)0.6
  • Iq (typ) (mA)0.06
  • PGNo
  • GradeAutomotive
  • PackageQFN-18 (2.5x3.5), QFN-18 (2x3)
  • Control ModeCurrent Mode
  • Common FeaturesDual Output, External Soft Start, Power Good
  • Special FeaturesProgrammable Frequency, Ultra-Low Iq
