MP4689

MP4689

NOT RECOMMENDED FOR NEW DESIGNS

100V 1A Buck WLED Driver with Hysteretic Control

ALTERNATIVE PART

NRFND Datasheet

MP4689 continues to be in production for existing customers. Please consider this alternative for new designs:

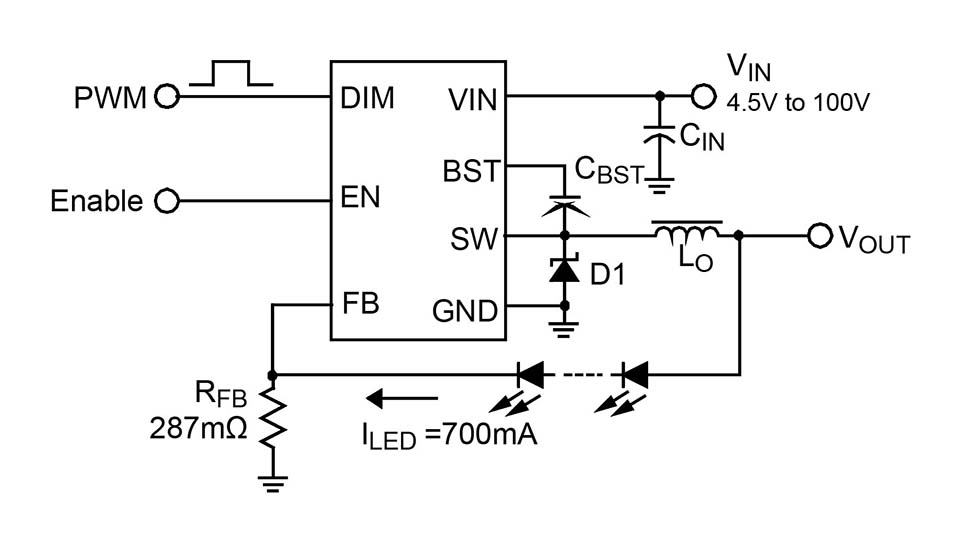

MP4689A

100V Input, 1A, High-Power LED Driver

Features & Benefits

Wide 4.5V to 100V Operating Input Range
No Output Capacitor Required
±3% LED Current Accuracy
Hysteretic Control: No Compensation
Up to 1MHz Switching Frequency
Up to 20kHz Dimming Frequency
Dedicated PWM Dimming Control Input
Short-Circuit Protection (SCP) with Integrated High-Side MOSFET
Thermal Shutdown
200mV Reference Voltage for High Efficiency
Up to 95% Efficiency
170µA Quiescent Current
Available in a SOIC-8 Package with an Exposed Pad

… and many more!

Description

The MP4689 is a high voltage input step-down switching regulator to deliver a constant current of up to 1A to high power LEDs. It integrates a high-side high voltage power MOSFET with a current limit of 2.5A (typical value). The wide 4.5V to 100V input range accommodates a variety of step-down applications, making it ideal for automotive, industrial and general lighting applications. Hysteresis current mode control is applied for very fast response, which makes the 20kHz dimming frequency possible. MPSs proprietary feedback control scheme minimizes the number of external components while delivering a LED current with typical ±3% accuracy. The switching frequency is up to 1MHz, thus allowing for small component size. The thermal shut down, short circuit protection, and optional output voltage limitation provide reliable, fault tolerant operations. A 170µA quiescent current allows its use in battery-powered applications. The MP4689 is available in SOIC8 with exposed pad packages.

Features & Benefits

Wide 4.5V to 100V Operating Input Range
No Output Capacitor Required
±3% LED Current Accuracy
Hysteretic Control: No Compensation
Up to 1MHz Switching Frequency
Up to 20kHz Dimming Frequency
Dedicated PWM Dimming Control Input
Short circuit protection with integrated high side MOSFET
Optional Output Voltage Limitation
Thermal shut down
200mV reference voltage for high efficiency
Up to 95% Efficiency
170µA Quiescent Current
Available in SOIC8 with Exposed Pad Packages

Active Part Numbers:

MP4689DN-LF-P MP4689DN-LF-Z

Meaning of P & Z

Evaluation Tools

EV4689DN-00A Evaluation Kit 80V Input 1A High Power LED Driver

The EV4689DN-00A is an evaluation board for high power LED driver. It is implemented by MP4689DN, an integrated Buck white LED driver which is suitable for automotive, industry and general lighting applications with MPS patented pending technology.

The EV4689DN-00A is recommended to drive a single-string LEDs. It can drive up to 19 LEDs in one string. It regulates the LED current at about 730mA.
