MP2341
24V, 2A, 1MHz, High-Efficiency, Synchronous Step-Down LED Driver in an SOT583 Package
Session textval
Session Titefor popup
Description
The MP2341 is a 24V, monolithic, synchronous, rectified, step-down switch-mode white LED (WLED) driver with built-in power MOSFETs and a synchronous rectifier switch. The MP2341 can achieve up to 2A of continuous output current (IOUT), with excellent load and line regulation.
Peak current control mode provides fast transient response, easy loop design, and tight output regulation. Full protection features include cycle-by-cycle peak current limiting, output short-circuit protection (SCP), open LED protection, and thermal shutdown.
The MP2341 requires a minimal number of readily available, standard external components, and is available in a space-saving SOT583 package.
-
Show more
Show less
Features & Benefits
- Wide 4.2V to 24V Operating Input Voltage (VIN) Range
- 125mΩ/75mΩ Low RDS(ON) Internal Power MOSFETs
- High-Efficiency Synchronous Mode
- Forced Pulse-Width Modulation (PWM) Mode
- Fast Load Transient Response
- 1MHz Switching Frequency (fSW)
- Internal Soft Start (SS)
- Analog Dimming via the DC Voltage (EN/DIM Pin)
- Analog Dimming via the PWM Signal (PDIM Pin)
- PWM Dimming via the PWM Signal (EN/DIM Pin)
- 50:1 Dimming Ratio with Analog Dimming
- 1000:1 Dimming Ratio with PWM Dimming
- LED Open Protection
- Over-Current Protection (OCP) with Hiccup Mode
- Over-Voltage Protection (OVP) with Auto-Recovery
- Thermal Shutdown
- 100mV Feedback Voltage (VFB)

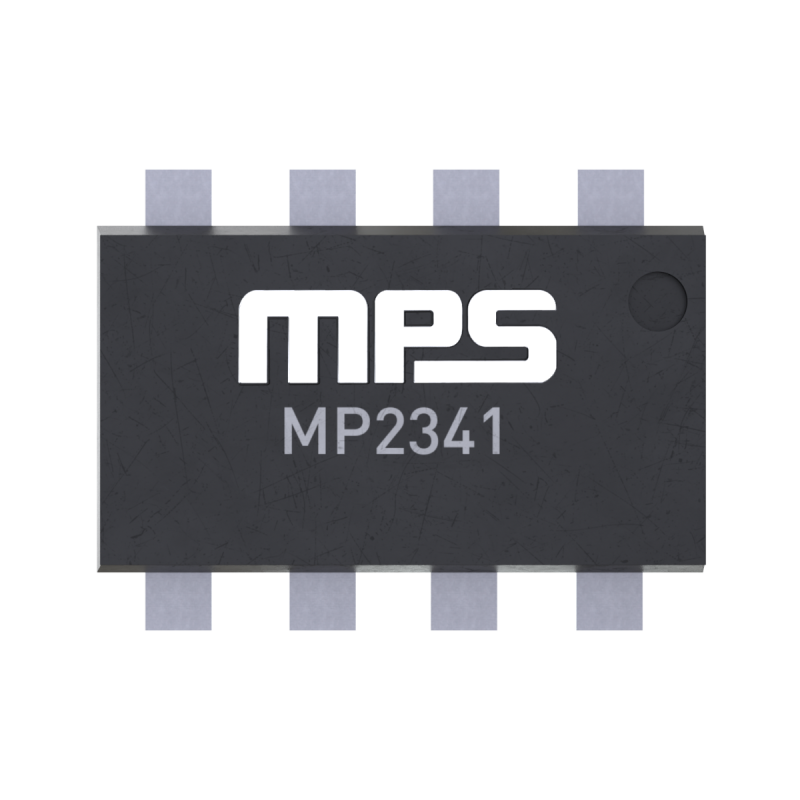

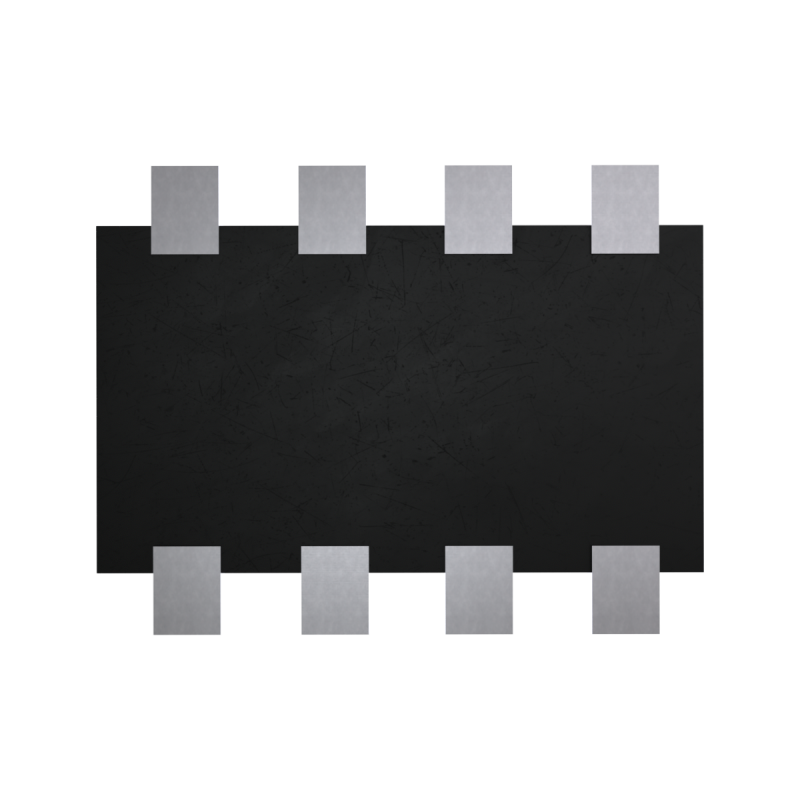

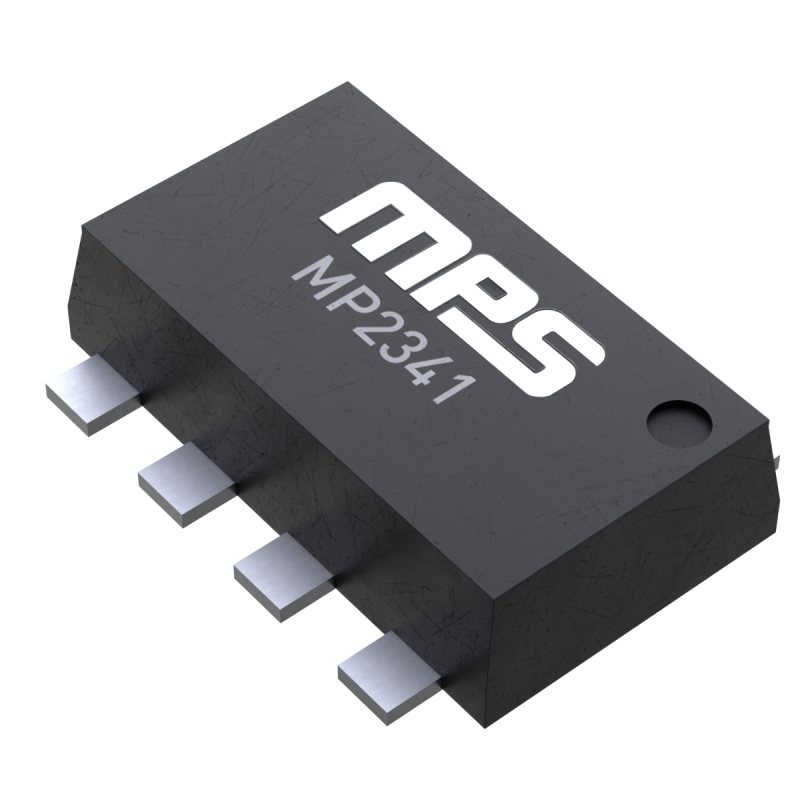

- Available in an SOT583 package
Active Part Numbers:
MP2341GTL-Z MP2341GTL-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
