MP44020
Session textval
Session Titefor popup
Description
The MP44020 is a multi-mode, critical condution mode (CrM)/discontinuous conduction mode (DCM) power factor correction (PFC) controller that provides simple, high-performance active PFC using minimal external components. The device offers lower total harmonic current distortion (THD) and near-unity power factor (PF) by utilizing a variable on-time control solution through the THD and PF optimizer compared to conventional constant-on-time (COT) control.
The MP44020 reduces the switching frequency (fSW) using dead time (DT) extension technology under light loads, thus improving light-load efficiency. It offers options that do not use burst mode, which can eliminate PFC output voltage (VOUT) fluctuations under light-load conditions to avoid flickering in LED applications.
Comprehensive protections enhance the safety and reliability of the system, including over-voltage protection (OVP), over-current limiting (OCL), over-current protection (OCP), under -voltage protection (UVP), brown-in and brownout (BI and BO, respectively), VCC voltage (VCC) under-voltage lockout (UVLO), and over-temperature protection (OTP).

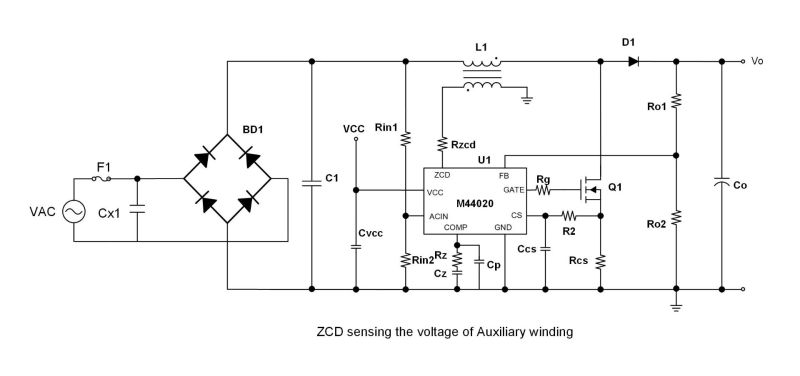

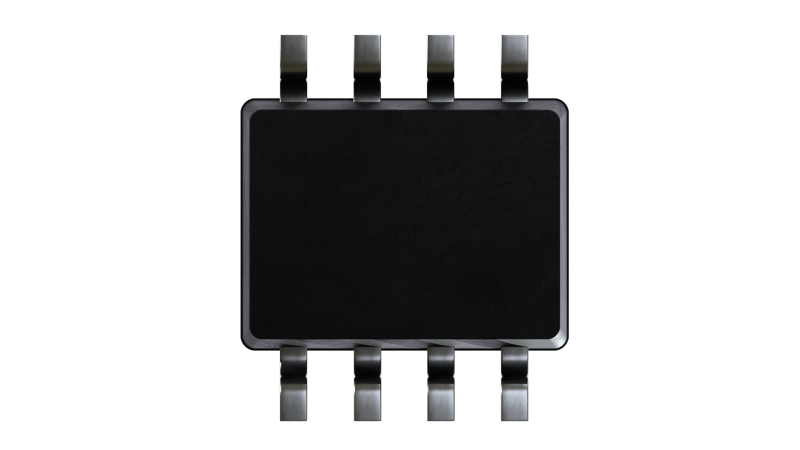

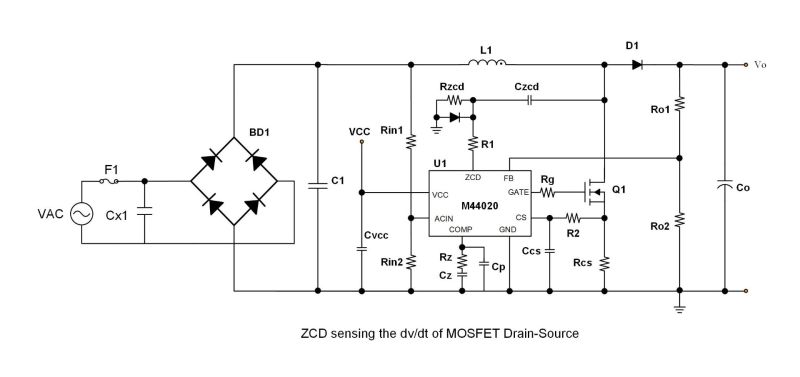

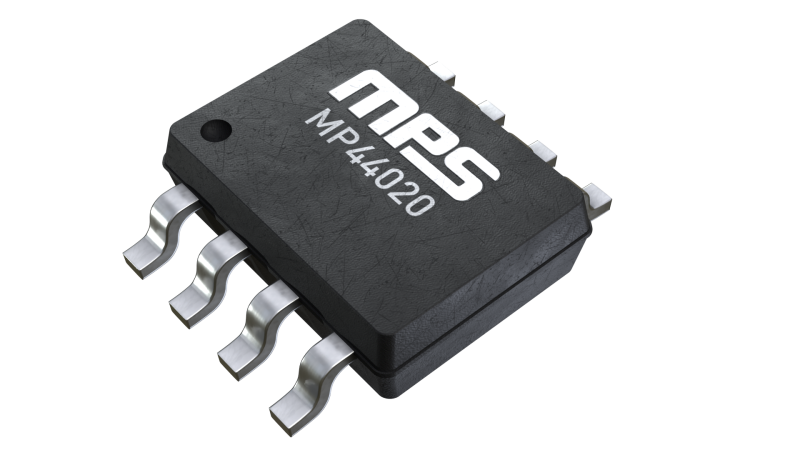

The MP44020 is available in an SOIC-8 package.
-
Show more
Show less
Features & Benefits
- Valley Turn-On for Minimal Switching Loss
- Switching Frequency (fSW) Reduction to Reduce Switching Loss under Light-Load Conditions
- Low Supply Current in Burst Mode
- Soft-On/Off Burst for Low Audible Noise
- Total Harmonic Distortion (THD) and Power Factor (PF) Enhancement
- Soft Start (SS)
- Enhanced Dynamic Response
- Under-Voltage Protection (UVP)
- Over-Current Limiting (OCL)
- Over-Current Protection (OCP)
- Over-Voltage Protection (OVP)
- Brown-In (BI) and Brownout (BO)
- Over-Temperature Protection (OTP)
- Available in an SOIC-8 Package
Active Part Numbers:
MP44020GS-0000-Z MP44020GS-0000-P MP44020GS-0001-Z MP44020GS-0001-P MP44020GS-0008-Z MP44020GS-0008-P MP44020GS-0009-Z MP44020GS-0009-P MP44020GS-000C-Z MP44020GS-000C-P MP44020GS-000D-Z MP44020GS-000D-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
