MP4562
60V, 2A Step-Down Converter with Configurable Frequency Up to 2.5MHz in a TSOT23-8 Package
Session textval
Session Titefor popup
Description

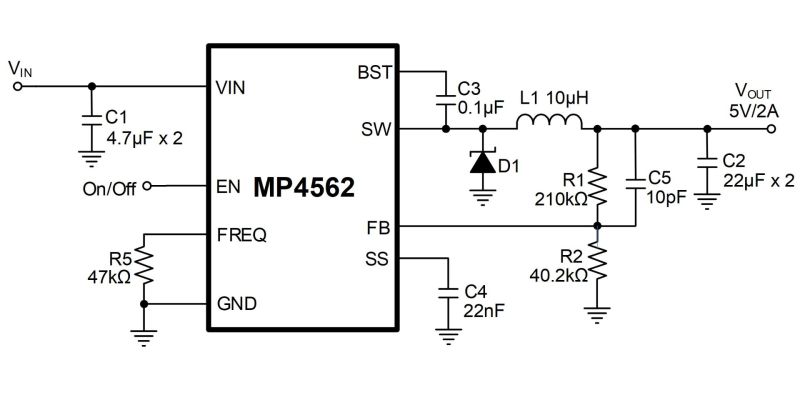

The MP4562 is a configurable-frequency, step-down converter with an integrated, high-voltage high-side MOSFET (HS-FET). It provides up to 2A of output current (IOUT) across a 4.5V to 60V input voltage (VIN) range.
Peak current mode control with internal compensation provides fast transient response and eases loop design. It supports a wide 100kHz to 2.5MHz switching frequency (fSW) range. The device provides a small-sized, high-efficiency solution for a wide variety of step-down applications.
The MP4562 features cycle-by-cycle current limit (ILIMIT) foldback and frequency foldback, which protects against overload and short-circuit conditions, regardless of whether VIN is high. The frequency stretch-down function improves efficiency and reduces the output voltage (VOUT) ripple (∆VOUT).

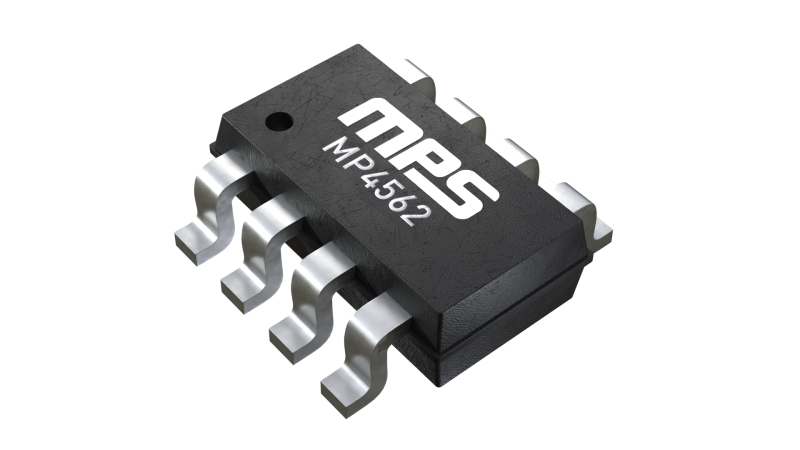

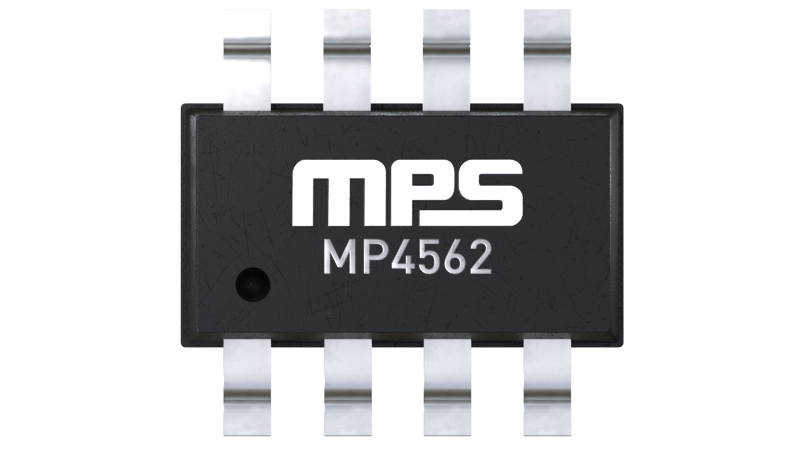

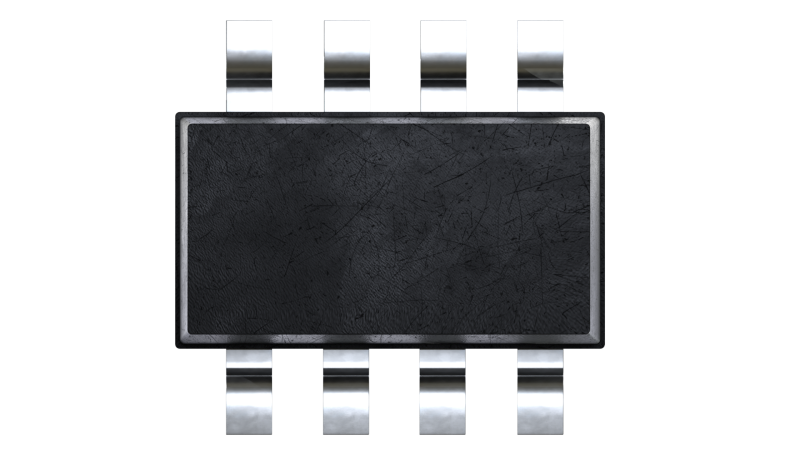

The MP4562 is available in a space-saving TSOT23-8 package.
-
Show more
Show less
Features & Benefits
- 4.5V to 60V Input Voltage (VIN) Range
- 0.8V to 30V Output Voltage (VOUT) Range
- 30μA Low Quiescent Current (IQ)
- 99% Duty Low-Dropout (LDO) Regulation
- 120mΩ Integrated
Active Part Numbers:
MP4562GJ-Z MP4562GJ-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
