MP28210
Ultra-Low 500nA IQ, Wide Input 2V to 5.5V, 1A Step-Down Regulator with 1.2mmx1.6mm CSP Package
Session textval
Session Titefor popup

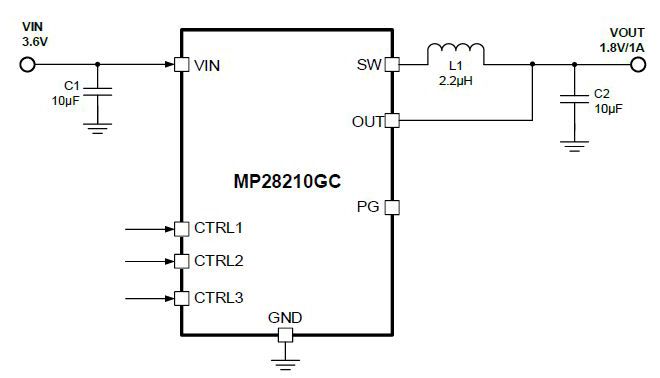

Description
The MP28210 is a monolithic power management unit containing a 1A, high efficiency, step-down, switching converter. The nA quiescent current provides extremely high efficiency when the load current is within the μA range. With a minimum input voltage as low as 2V, the MP28210 allows the system to operate directly from the battery.
The constant-on-time (COT) control scheme provides fast transient response, high light-load efficiency, and requires minimal capacitance. The regulation can be made tight by integring an error amplifier to correct the output voltage.
The CTRL pins control the on/off and output voltage selection functions.
Fault protection features include under-voltage lockout (UVLO), over-current protection (OCP), and thermal shutdown.
The MP28210 requires a minimal number of readily available, standard external components, and is available in a small CSP-12 (1.2mmx1.6mm) package.
-
Show more
Show less
Features & Benefits
- Ultra-Low 500nA IQ
- Wide 2.0V to 5.5V Operating Input Range
- 7 Selectable Output Voltages
- Up to 1A Output Current
- 1.5MHz Switching Frequency in Continuous Conduction Mode (CCM)
- 100% Duty Cycle in Dropout Mode
- 0.25Ω and 0.25Ω Internal Power MOSFET Switches
- Cycle-by-Cycle Over-Current Protection (OCP)
- Short-Circuit Protection (SCP) with Hiccup Mode
- Available in a CSP-12 (1.2mmx1.6mm) Package
Active Part Numbers:
MP28210GC-P MP28210GC-Z
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
