- MP1609
MP1609
Session textval
Session Titefor popup
- Vin (min) (V)2.4
- Vin (max) (V)5.5
- Iout (max) (A)8
- Iq (typ) (mA)0.0045
- Vfb (V)0.4
- fsw (max) (kHz)1200
- Control ModeCOT Control
- Package (mm)QFN-7 (2x3)
- GradeCatalog

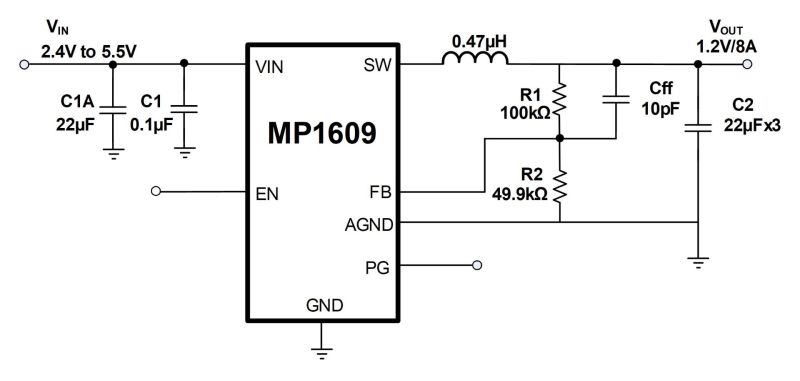

The MP1609 is a monolithic, step-down switch-mode converter with built-in internal power MOSFETs. It achieves up to 8A of continuous output current (IOUT) from a 2.4V to 5.5V input voltage (VIN) range, with excellent load and line regulation. The output voltage (VOUT) can be regulated to as low as 0.4V.
The constant-on-time (COT) control scheme provides fast transient response and eases loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown.
The MP1609 is ideal for a wide range of applications, including high-performance DSPs, wireless power, portable and mobile devices, and other low-power systems.
The MP1609 is available in QFN-7 (2mmx3mm) package, and requires a minimal number of readily available, standard external components.
-
Show more
Show less
Features & Benefits
- Wide 2.4V to 5.5V Operating Input Voltage (VIN) Range
- Up to 8A Output Current (IOUT)
- 15mΩ and 8mΩ Internal Power MOSFET Switches
- Low Quiescent Current (IQ): 4.5µA Typical
- 1.2MHz Fixed Switching Frequency (fSW)
- Enable (EN) Function
- High Feedback Accuracy: ±0.75% at 25°C Junction Temperature (TJ)
- Up to 98% Duty Cycle
- Output Discharge Function
- Power Good (PG) Indication
- Adjustable Output Voltage (VOUT) from 0.4V
- Internal Soft Start (SS)
- Pre-Biased Start-Up
- Short-Circuit Protection (SCP) with Hiccup Mode
- Thermal Shutdown
- Available in a QFN-7 (2mmx3mm) Package
- Optimized Performance with MPS Inductor MPL-AL5030 Series
Active Part Numbers:
MP1609GD-Z MP1609GD-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
