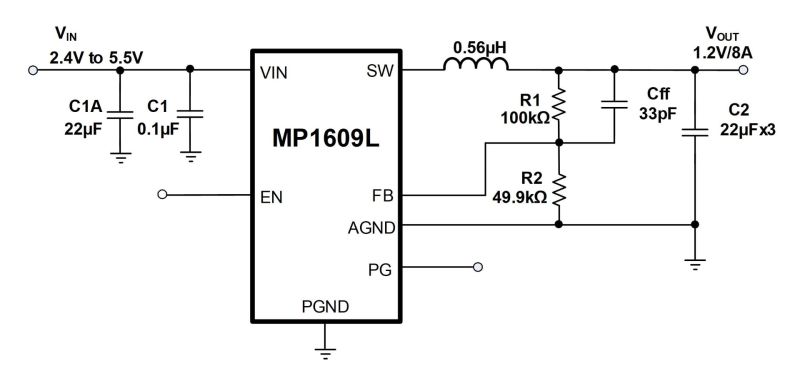

MP1609L
5.5V, 8A, 700kHz, Synchronous Step-Down Converter with 4.5μA IQ in a QFN-7 (2mmx3mm) Package
Active Part Numbers:
MP1609LGD-Z MP1609LGD-P
Meaning of P & Z
Recommended Inductors
Part Number
L (µH)
RDC (typ) (mΩ)
IR (40K) (A)
Isat (30%) (A)
MPL-AL5030-R47
Low-Profile Molded Inductor 0.47µH
0.47
3.78
13.6
26.5
L (µH)
RDC (typ) (mΩ)
IR (40K) (A)
Isat (30%) (A)
0.47
3.78
13.6
26.5
MPL-AL5030-R56
Low-Profile Molded Inductor 0.56µH
0.56
3.92
13.2
22
L (µH)
RDC (typ) (mΩ)
IR (40K) (A)
Isat (30%) (A)
0.56
3.92
13.2
22
MPL-AL5030-R82
Low-Profile Molded Inductor 0.82µH
0.82
5.0
12.8
18
L (µH)
RDC (typ) (mΩ)
IR (40K) (A)
Isat (30%) (A)
0.82
5.0
12.8
18
Show more
