MP2332C
Active Part Numbers:
MP2332CGTL-Z MP2332CGTL-P
Meaning of P & Z
Evaluation Tools
EV2332C-TL-00A Evaluation Kit High-Efficiency, 650kHz, 2A, 18V, Step-Down Converter Evaluation Board

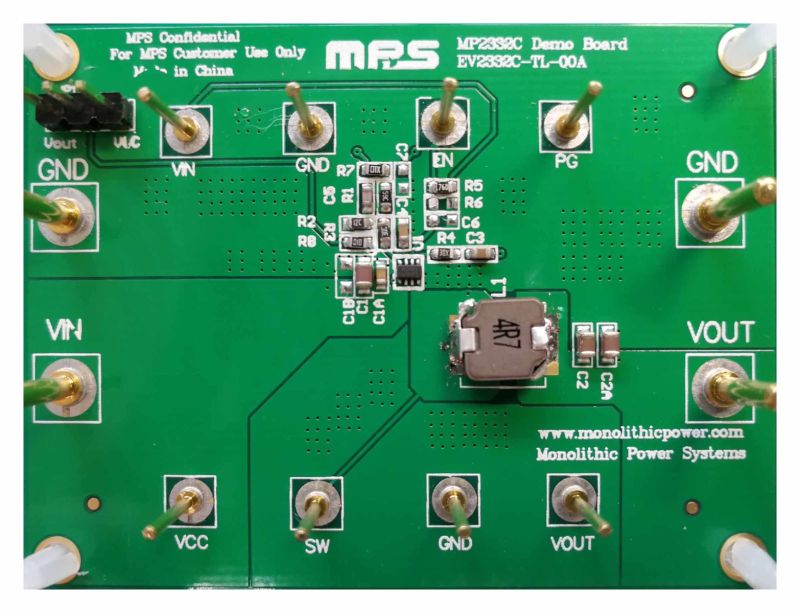

The EV2332C-TL-00A evaluation board is designed to demonstrate the capabilities of MPS’s MP2332C, a fully integrated, high-frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve 2A of continuous output current over a wide input range, with excellent load and line regulation. The MP2332C has synchronous mode operation for higher efficiency over the output current load range.
Constant-on-time control operation provides very fast transient response and easy loop design, as well as very tight output regulation.
Full protection features include SCP, OCP, UVP, and thermal shutdown.
The MP2332C requires a minimal number of readily available, standard external components, and is available in a space-saving SOT583 (1.6mmх2.1mm) package.
