- HF86
HF86
Session textval
Session Titefor popup
Description

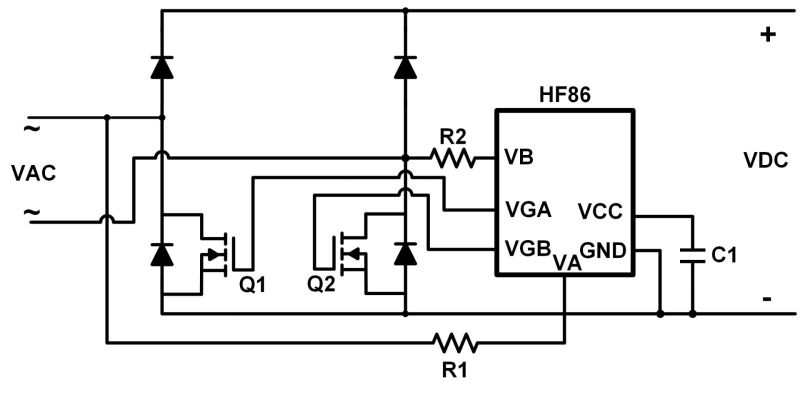

The HF86 is a dual-channel, intelligent rectifier controller designed to drive two external N-channel MOSFETs, replacing the two low-side diodes of a traditional diode bridge. It powers VDD through an internal self-supply circuit without the need for an external power supply, which allows the IC to require a minimal number of external components.
The HF86 is available in an SOIC-8 package.
-
Show more
Show less
Features & Benefits
- <2mW Ultra-Low Power Consumption
- 1kV Drain-Source Voltage (VDS) Rating
- Integrated VDD Charging
- Internal Gate Driver Lock to Prevent Error Triggering
- Internal Gate Clamp before VCC Under-Voltage Lockout (UVLO)
- VCC UVLO
- Available in an SOIC-8 Package
Active Part Numbers:
HF86GS-Z HF86GS-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
