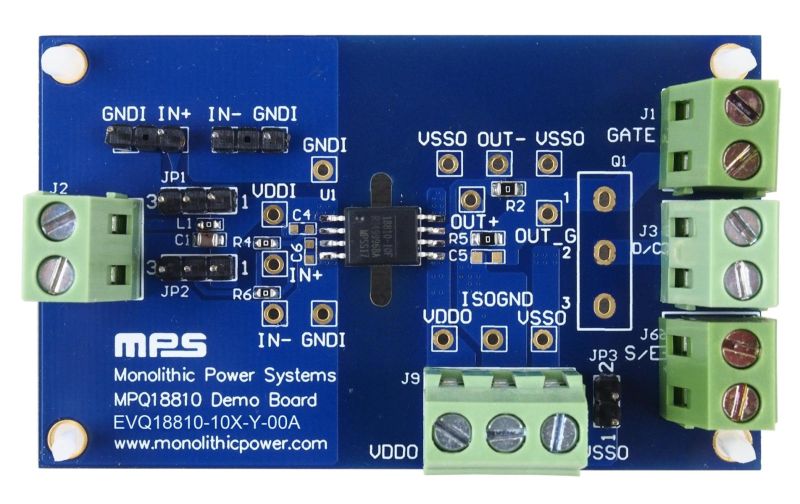

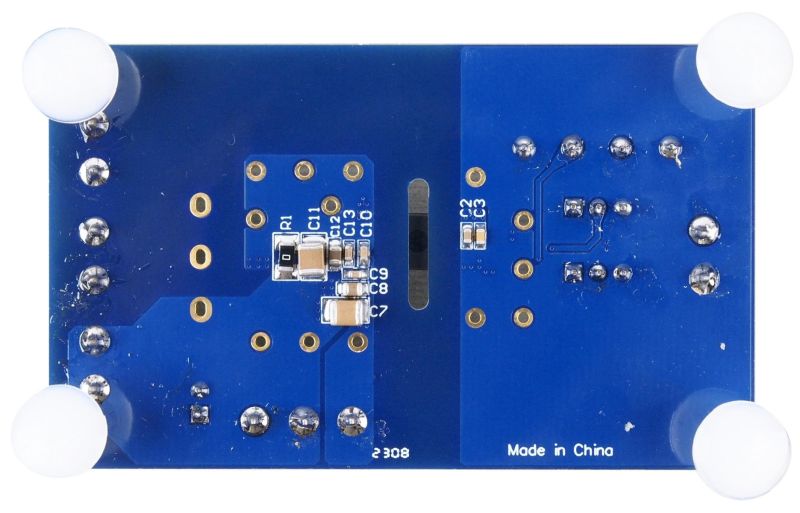

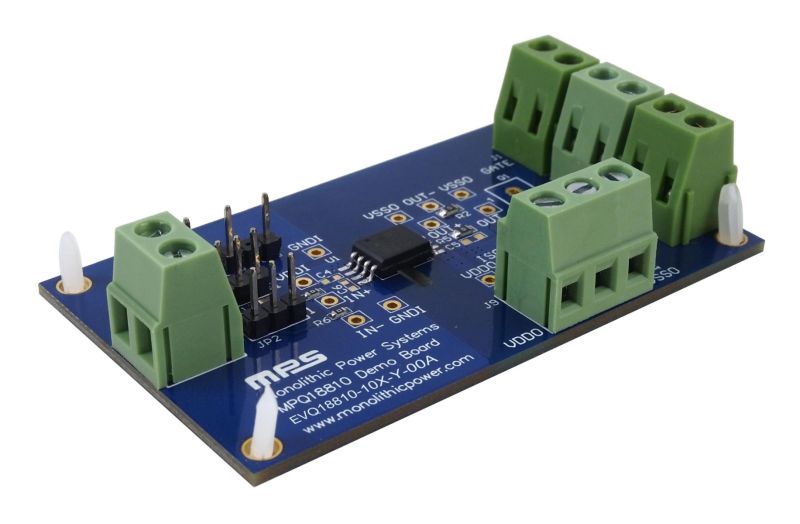

EVQ18810-10X-Y-00A

The EVQ18810-10X-Y-00A is a set of evaluation boards designed to demonstrate the capabilities of the MPQ18810, a single-channel, isolated gate driver solution for driving power switching devices with a short propagation delay and minimal pulse-width distortion. There are three versions: the EVQ18810-10C-Y-00A, the EVQ18810-10E-Y-00A, and the EVQ18810-10F-Y-00A. The EVQ18810-10X-Y-00A applies to all versions throughout the datasheet, unless otherwise noted.

By utilizing MPS’s proprietary capacitive-based isolation technology, the SOIC wide-body (WB) package option can provide up to 5kV_RMS of withstand voltage (per UL 1577). It can also provide a common-mode transient immunity (CMTI) rating above 150kV/µs between the input side and output driver. With these advanced features, the driver operates at high efficiency, high power density, and with robustness in a wide variety of automotive power applications.

It is recommended to read the MPQ18810 datasheet prior to making any changes to the EVQ18810-10X-Y-00A.
