Description
The MP2002A is a low-current, low-dropout linear regulator operating over a single input supply between 1.35V and 6.5V. The output voltage can be adjusted via an external resistor divider. The MP2002A can supply up to 500mA of load current, and the enable (EN) pin allows the part to be put into a low-current shutdown mode (EN = 0).
The MP2002A features thermal overload and current-limit protection. It is available in a QFN-8 (2mmx3mm) package.
-
Show more
Show less
Features & Benefits
- Power Good Open-Drain Output
- Operates from 1.35V to 6.5V Input Voltage
- Low 300mV Dropout at 500mA Output
- Stable with Very Small Ceramic Capacitors
- 2% Feedback Reference
- Adjustable Output Voltage Option from 0.5V to 5V Using an External Resistor Divider
- Better Than 0.001%/mA Load Regulation
- Low 100μA Ground Current
- Internal Thermal Protection
- Current-Limit Protection
- 7μA Typical Shutdown Current
- Available in a QFN-8 (2mmx3mm) Package
Active Part Numbers:
MP2002AGD-P MP2002AGD-Z
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
MP2002A Resources
-
REFERENCE DESIGN
ZYNQ ULTRASCALE+ MPSOC PMIC POWER SOLUTIONREFERENCE DESIGNThis is a power solution for AMD Xilinx Zynq UltraScale+ MPSoC’s XCZU3EG using PMICs and LDOs. This solution meets the tight regulation of each rail in a small footprint.
-
REFERENCE DESIGN
ZYNQ ULTRASCALE + MPSOC PMIC MODULE POWER SOLUTIONREFERENCE DESIGNThis is a power solution for AMD Xilinx Zynq UltraScale+ MPSoC’s XCZU3EG using PMIC modules and LDOs. This solution meets the tight regulation of each rail in a small footprint.
-
REFERENCE DESIGN
ARTIX ULTRASCALE+ AU10P/15P MINIMUM RAILS – HIGHEST POWER REFERENCE DESIGNREFERENCE DESIGN -
REFERENCE DESIGN

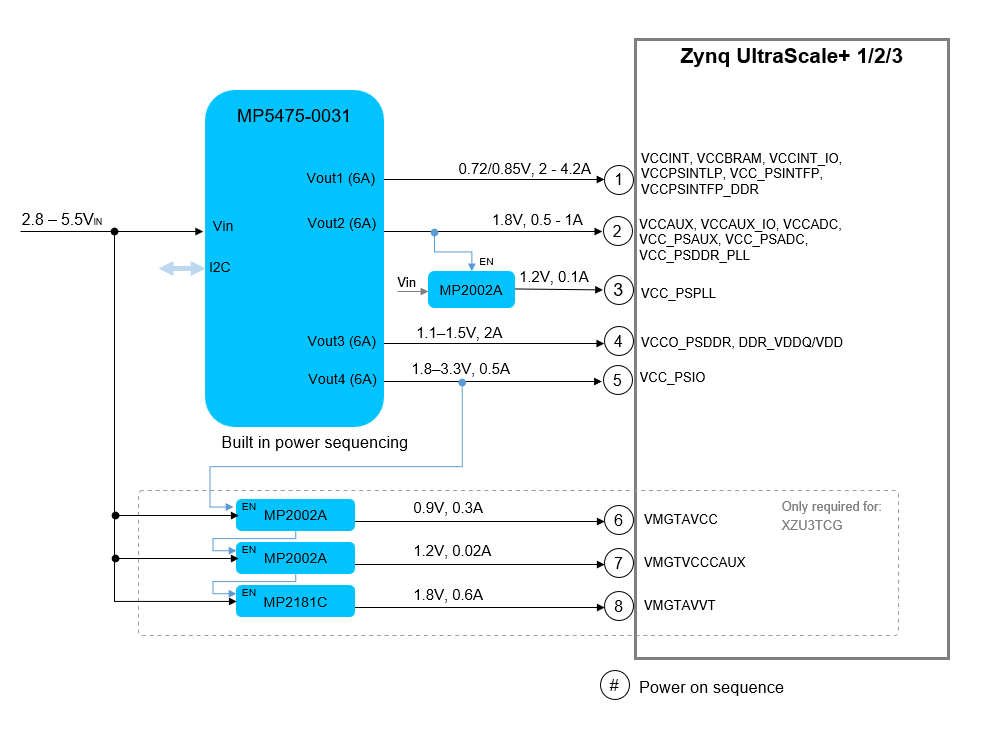

ZU1/2/3 MINIMUM RAILS: HIGHEST POWERREFERENCE DESIGN -
REFERENCE DESIGN
ARTIX ULTRASCALE+ AU10P/15P MINIMUM RAILS – SMALLEST SIZEREFERENCE DESIGN -
