MPQ4572

MPQ4572

High-Efficiency, 2A, 60V, Fully Integrated, Synchronous Buck Converter, AEC-Q100 Qualified

Datasheet

Description

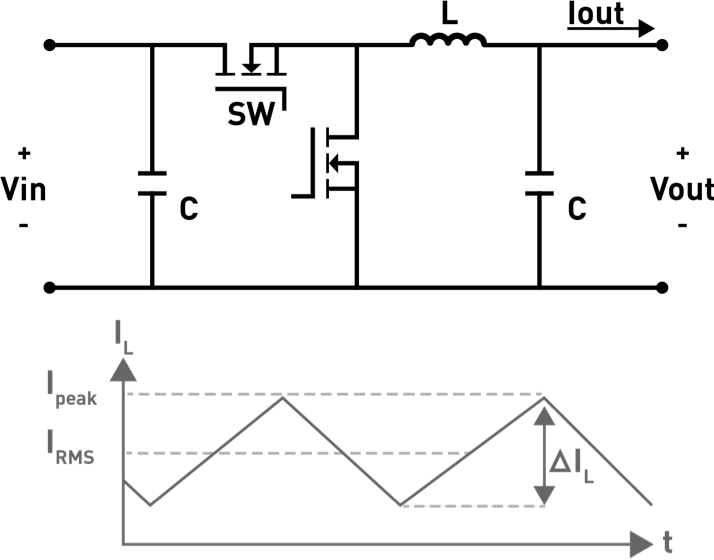

The MPQ4572 is a fully integrated, fixed-frequency, synchronous step-down converter. It can achieve up to 2A of continuous output current with peak current control for excellent transient response.

The wide 4.5V to 60V input voltage range accommodates a variety of step-down applications in an automotive input environment. The device’s 2μA shutdown mode quiescent current makes it ideal for battery-powered applications.

The MPQ4572 integrates internal high-side and low-side power MOSFETs for high efficiency without an external Schottky diode. It employs advanced asynchronous modulation (AAM) to achieve high efficiency during light-load conditions by scaling down the frequency to reduce switching and gate driver losses.

Standard features include built-in soft start, enable control, and power good indication. High-duty cycle and low-dropout mode are provided for automotive cold crank conditions.

The chip provides over-current protection (OCP) with valley-current detection to avoid current runaway. It also has hiccup short-circuit protection (SCP), input under-voltage lockout (UVLO), and auto-recovery thermal protection.

With internal compensation, the MPQ4572 can offer a very compact solution with a minimal number of readily available, standard external components. It is available in a QFN-12 (2.5mmx3mm) package.

Features & Benefits

Wide 4.5V to 60V Operating Input Range
2A Continuous Output Current
High-Efficiency, Synchronous Mode Control
250mΩ/45mΩ Internal Power MOSFETs
Configurable Frequency Up to 2.2MHz
180° Out-of-Phase SYNC Out Clock
40μA Quiescent Current
Low Shutdown Mode Current: 2μA
FB-Tolerance: 1% at Room Temp, 2% at Full Temp
Selectable AAM or Forced CCM Operation during Light-Load Conditions
Internal 0.45ms Soft Start
Remote EN Control
Power Good Indicator
Low-Dropout Mode
Over-Current Protection (OCP)
Short-Circuit Protection with Hiccup Mode
V_IN Under-Voltage Lockout (UVLO)
Thermal Shutdown
Available in a QFN-12 (2.5mmx3mm) Package
Available in a Wettable Flank Package
Available in AEC-Q100 Grade-1

Active Part Numbers:

MPQ4572GQB-P MPQ4572GQB-Z

Meaning of P & Z

Related Products

EVQ4572-QB-00A 60V, 2A, High Efficiency Synchronous Buck Converter Evaluation Board

The EVQ4572-QB-00A Evaluation Board is designed to demonstrate the capabilities of MPS’ MPQ4572/MPQ4572-AEC1.

MPQ4572/MPQ4572-AEC1 is a fully-integrated, fixed-frequency synchronous step-down converter. It can achieve up to 2A continuous output current with peak current control for excellent transient response.

The MPQ4572/MPQ4572-AEC1 employs AAM (Advanced Asynchronous Modulation) mode which helps to achieve high efficiency at light load condition by scaling down the switching frequency to reduce the switching and gate driving losses.

The EVQ4572-QB-00A is a fully assembled and tested evaluation board, it generates +5V output voltage at load current up to 2A from a 5V to 60V input range.
