MPM3632C

Active

18V Input, 3A Module, Synchronous, Forced CCM, Step-Down Converter with Integrated Inductor

  • Quantity Price
  • 1+
    $3.14 /unit
  • 10+
    $2.54 /unit  19 % Discount
  • 100+
    $2.32 /unit  26 % Discount
  • 250+
    $2.15 /unit  32 % Discount
  • 500+
    $1.97 /unit  37 % Discount
  • 1000+
    $1.62 /unit  48 % Discount

In stock

Learn about our Evaluation Kit
Talk to an Engineer or get a Quote

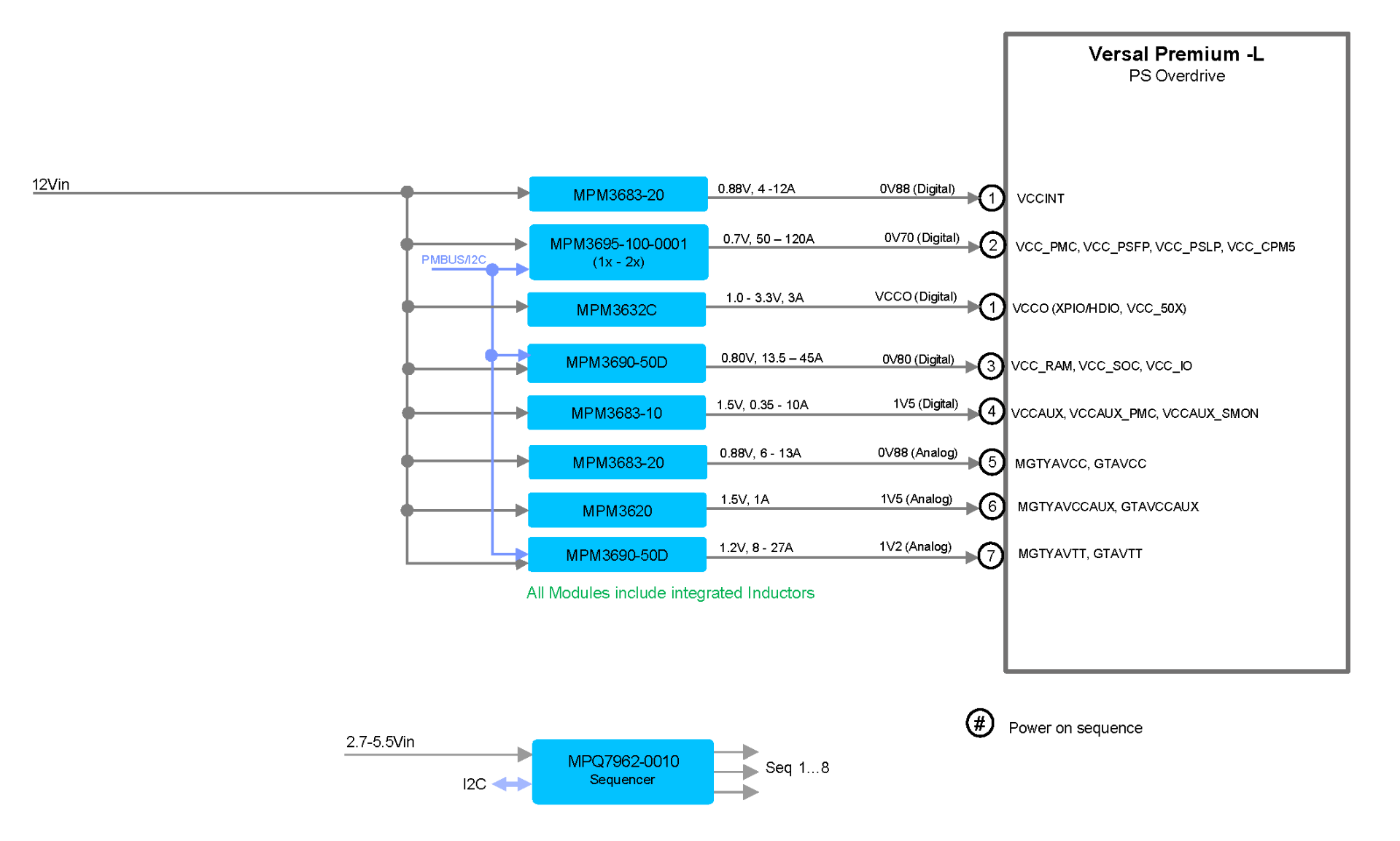

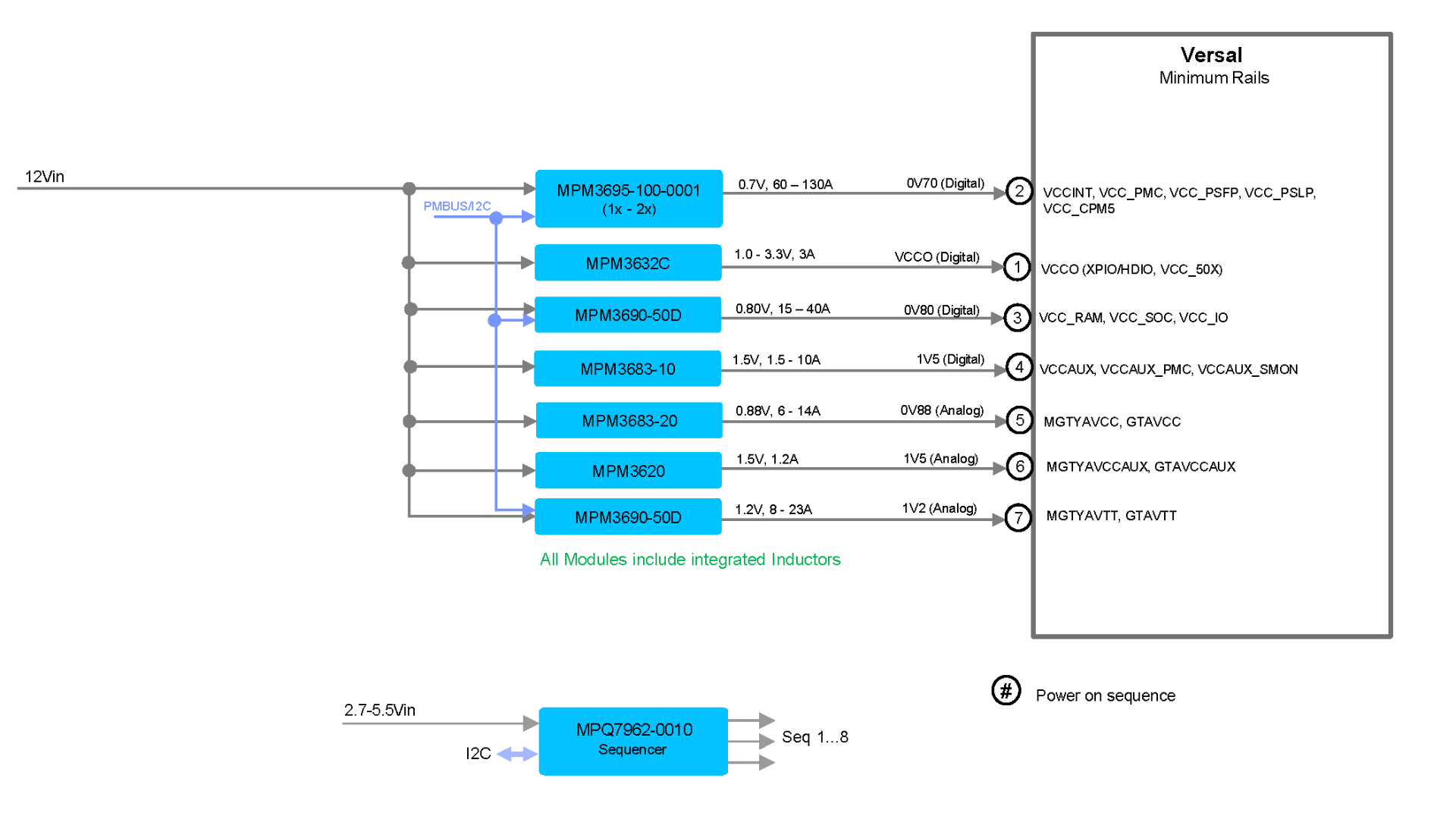

Product Description

The MPM3632C is a step-down, regulator module integrated with a synchronous, rectifying power MOSFET, inductor, and three capacitors. The MPM3632C offers a very compact solution that requires only input and output capacitors to achieve 3A of continuous output current with excellent load and line regulation over a wide input range. The MPM3632C operates at a fixed 3MHz switching frequency and employs constant-on-time (COT) control, which provides a fast load transient response.

The MPM3632C eliminates design and manufacturing risks while improving the time to market dramatically.

Full protection features include output over-voltage protection (OVP), over-current protection (OCP), and thermal shutdown.

The MPM3632C is available in a space-saving QFN-20 (3mmx5mmx1.6mm) package.

Product Features

  • Complete Switch-ModePowerSupply
  • 3MHz Switching Frequency
  • Wide 4V to 18V Operating Input Range
  • Output Adjustable from 0.8V
  • Internal Fixed Soft-Start Time
  • 3A Continuous Output Current
  • Forced CCM for Low Output Ripple
  • Power Good (PG) Indicator
  • Hiccup Over-Current Protection (OCP)
  • Output Over-Voltage Protection (OVP)
  • Thermal Shutdown
  • Fast Transient Response
  • Available in a QFN-20 (3mmx5mmx1.6mm) Package
  • Total Solution Size: 7mmx7.9mm

Parametrics

  • fsw (max) (kHz)3300
  • fsw (min) (kHz)2700
  • Vin (min) (V)4
  • Vin (max) (V)18
  • Iout (max) (A)3
  • Vfb (V)0.8
  • Iq (typ) (mA)1.2
  • Regulated Outputs1
  • Vout (max) (V)5.5
  • Vout (min) (V)0.8
  • EN ControlNo
  • GradeIndustrial
  • PackageQFN-20 (3x5)
  • Special FeaturesEMI Tested, Forced CCM
  • SSInternal
  • Dimension (H) (mm)4.2
  • Mounting TypeSurface Mount
  • Dimension WxL (mm)3x5
  • I2C InterfaceNo
  • PGYes
  • Operating Junction Temp Range (°C) -40 to 125
  • Module Assembly Encapsulated

18V Input 3A Module Step-Down Converter Evaluation Board

The EVM3632C-QV-00B Evaluation Board is designed to demonstrate the capabilities of MPS’ MPM3632C, a step-down regulator module integrated with a synchronous, rectifying power MOSFET, inductor, and three capacitors. The MPM3632C offers a very compact solution that requires only input and output capacitors to achieve 3A of continuous output current with excellent load and line regulation over a wide input range.

The MPM3632C operates at a fixed 3MHz switching frequency and employs constant-on-time (COT) control, which provides a fast load transient response.

Full protection features include output over-voltage protection (OVP), over-current protection (OCP), and thermal shutdown.

The MPM3632C is available in a space-saving QFN-20 (3mmx5mmx1.6mm) package.

$25.00 + tax
