MP5002
3.3V, 1A-3A Programmable Current Limit Switch
NRFND

MP5002

NOT RECOMMENDED FOR NEW DESIGNS

3.3V, 1A-3A Programmable Current Limit Switch
NRFND

MP5002 continues to be in production for existing customers. Please consider this alternative for new designs:

MP5013A

Active

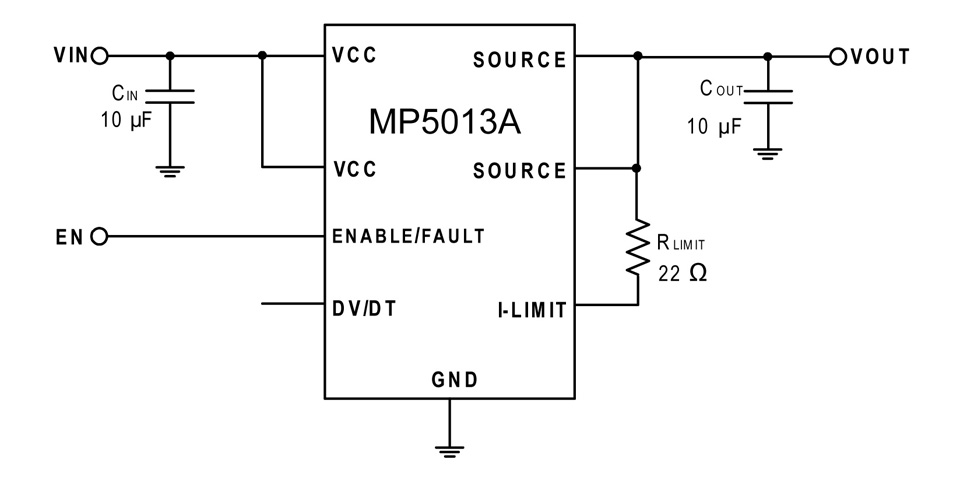

MP5013A

Active

5V, 5A Programmable Current-Limit Switch with Over-Voltage Clamp and Slew-Rate Control in TSOT23-8

Features & Benefits

  • 3 V to 5.5 V Operating Input Range
  • 5.7 V Typical Output Over-Voltage Clamp
  • Absolute Maximum Voltage of 22 V
  • Input Under-Voltage Lockout
  • Low Inrush Current during Start-Up
  • Integrated 36 mΩ Power FET
  • Enable/Fault Pin
  • Adjustable Output Voltage Slew Rate
  • Adjustable Current Limit
  • Thermal Shutdown Protection
  • TSOT23-8 Package

… and many more!

Active Part Numbers:

MP5002DQ-LF-P MP5002DQ-LF-Z

Design Resources

Symbol, Footprint & 3D Model
30+ more formats Show more
Cad Symbols Symbols (36)
Cad Footprints Footprint (34)
Cad 3D Models 3D Models (15)

Buy direct from MPS



Talk to an Engineer or get a Quote
Quality Policy, Certificates & Reliability Reports
All MPS parts are lead-free, halogen-free and adhere to the RoHS directive. See Environmental section for details.
