MPQ18811-AEC1
Active Part Numbers:
MPQ18811-10CGY-AEC1-Z MPQ18811-10CGY-AEC1-P MPQ18811-10EGY-AEC1-Z MPQ18811-10EGY-AEC1-P MPQ18811-10FGY-AEC1-Z MPQ18811-10FGY-AEC1-P
Meaning of P & Z
Related Products

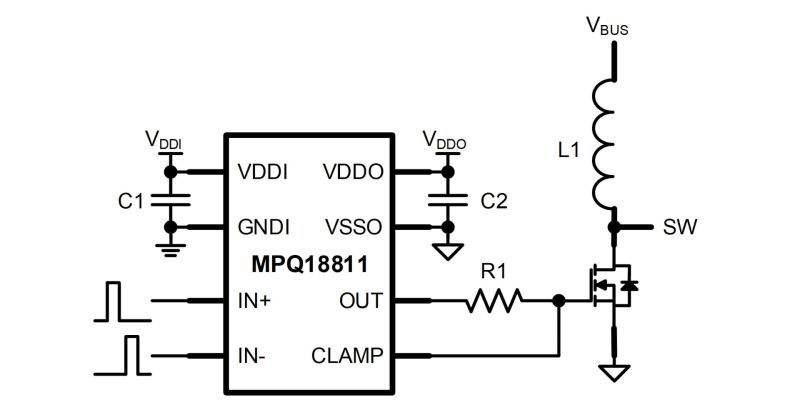

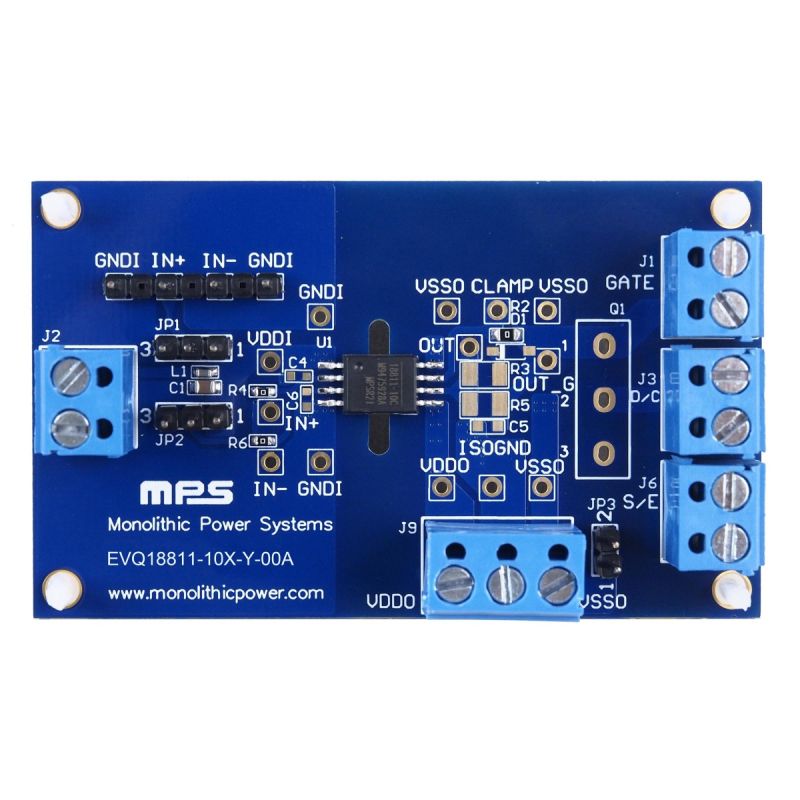

The EVQ18811-10X-Y-00A is a set of evaluation boards designed to demonstrate the capabilities of the MPQ18811-AEC1, a single-channel, isolated gate driver solution for driving power switching devices with a short propagation delay and minimal pulse-width distortion. There are three versions: the EVQ18811-10C-Y-00A, the EVQ18811-10E-Y-00A, and the EVQ18811-10F-Y-00A. The EVQ18811-10X-Y-00A applies to all versions, unless otherwise noted.
By utilizing MPS's proprietary, capacitive-based isolation technology, the SOIC wide-body (WB) package option can provide up to 5kVRMS of withstand voltage (per UL 1577). It can also provide a common-mode transient immunity (CMTI) rating exceeding 150kV/μs between the input side and output driver. With these advanced features, the driver operates at a high efficiency, high power density, and with robustness in a wide variety of automotive power applications.
It is recommended to read the MPQ18811-AEC1 datasheet prior to making any changes to the EVQ18811-10X-Y-00A.
