6A, 36V, Frequency Programmable Step-Down Converter with Smart, Dual, USB Charging Ports

Active

Datasheet

Description

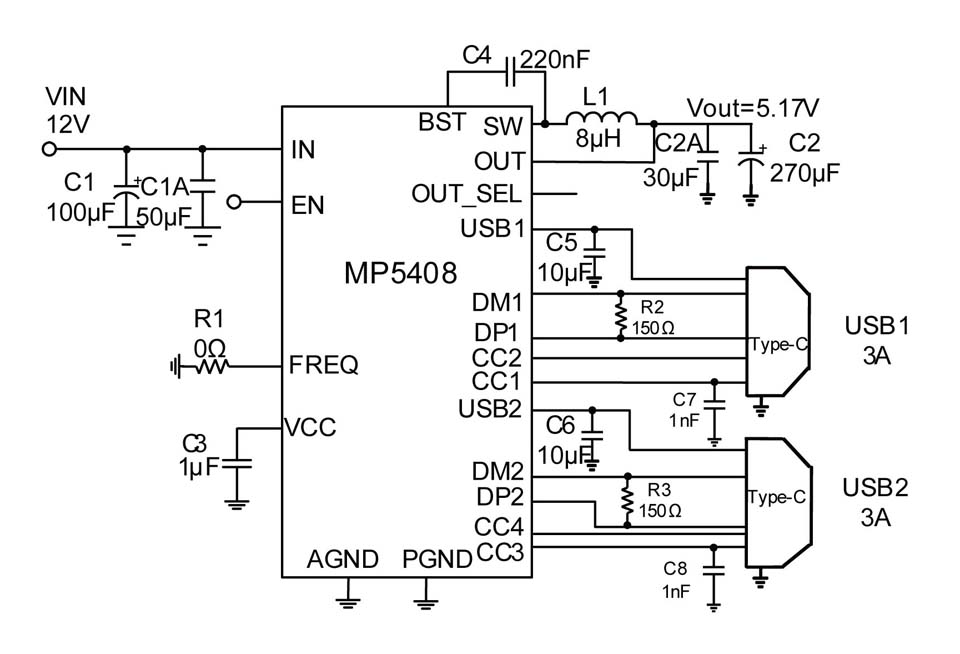

The MP5408M integrates a monolithic, step-down, switch-mode converter with two USB current-limit switches and charging port identification circuitry for each port. The MP5408M achieves 6A of output current with excellent load and line regulationover a wide input-supply range.
The output of the USB switch is current-limited. Both USB ports support DCP schemes for battery charging specification (BC1.2), divider mode, 1.2V/1.2V modeand USB Type-C 5V@3A DFPmode,eliminating the need for outside user interaction.
Full protection features include hiccup current limiting, output over-voltage protection (OVP), and thermal shutdown.
The MP5408M requires a minimal number of readily available, standard, external componentsand is available in a QFN-26 (5mmx5mm) package.

Features & Benefits

EMI Reduction Technique
Wide 6V to 36V Operating InputVoltage Range
Selectable Output Voltage: 5.1V, 5.17V, and 5.3V
90mV Line Drop Compensation
Accurate USB1/USB2 OutputCurrent Limit
18mΩ/15mΩ Low RDS(ON) Internal Buck Power MOSFETs
13mΩ/13mΩ Low RDS(ON) Internal USB1/USB2 Power MOSFETs
Frequency Adjustable (200kHz to 2.2MHz)
Forced Continuous Conduction Mode (CCM) Operation
Hiccup Current Limit for both Buck and USB
Supports DCP Schemes for BC1.2, Divider Mode, and 1.2V/1.2V Mode
Supports USB Type-C 5V@3A DFP Mode
±8kV HBM ESD Rating for USB, DP, and DM pins
Available in a QFN-26 (5mmx5mm) Package
