MP5472

MP5472

12V, 6A, Fully Integrated Dual-Output PMIC with I²C Interface and Flexible System Configurations

MPL

Description

MPL

Optimized Performance with MPS Inductor

The MP5472 is a complete power management IC (PMIC) that integrates two high-efficiency, step-down DC/DC converters, one adjustable output low-dropout (LDO) regulator, and a flexible logic interface.

The integrated DC/DC converters provide constant-on-time (COT) control for fast transient response. The configurable 500kHz to 1.25MHz switching frequency (f_SW) minimizes the external inductor and capacitor size. Full protection features include under-voltage lockout (UVLO), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown.

The output voltage (V_OUTx) (where x = 1 or 2) can be adjusted via the I²C bus, or it can be preset by the multiple-time programmable (MTP) memory. The start-up/shutdown sequence can also be configured by the MTP, or it can be controlled online via the I²C.

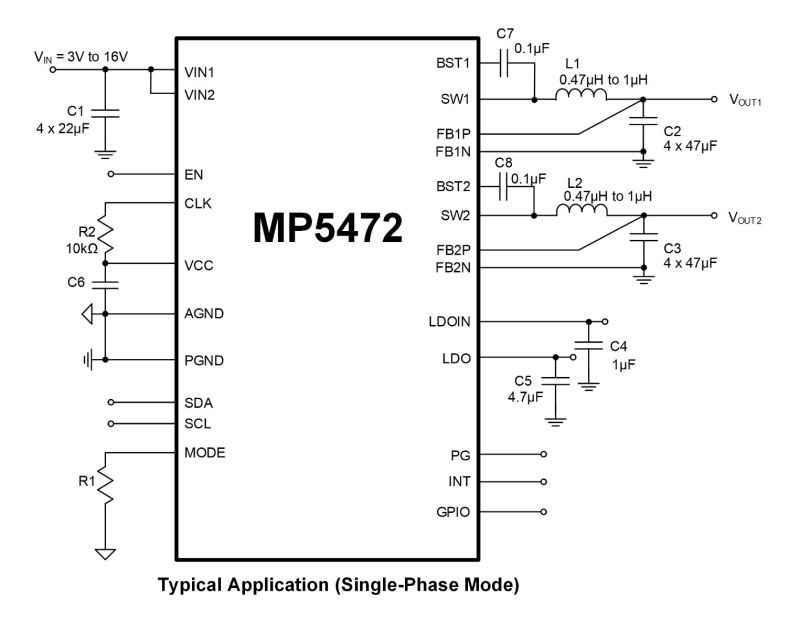

The two rails can work in either independent mode or parallel mode, which can be configured. The current-sharing function is implemented in parallel mode.

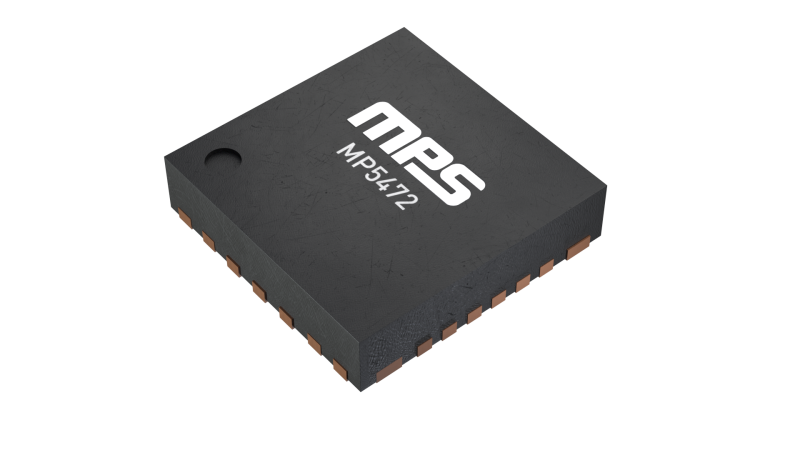

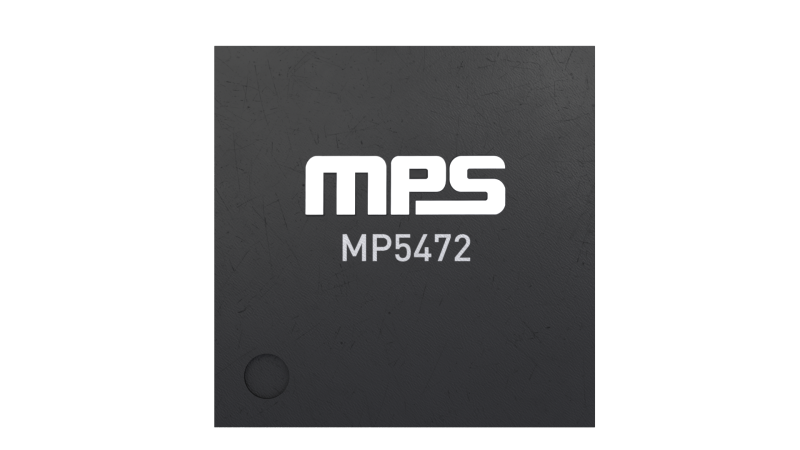

The MP5472 requires a minimal number of external components, and is available in a space-saving QFN-26 (4mmx4mm) package.

Features & Benefits

Wide 3V to 16V Input Voltage (V_IN) Range
Adaptive Constant-On-Time (COT) Control for Ultra-Fast Transient Response
Two High-Efficiency Step-Down Converters:
- Buck 1: 12A, DC/DC Converter, 15mΩ/5mΩ
- Buck 2: 12A, DC/DC Converter, 15mΩ/5mΩ

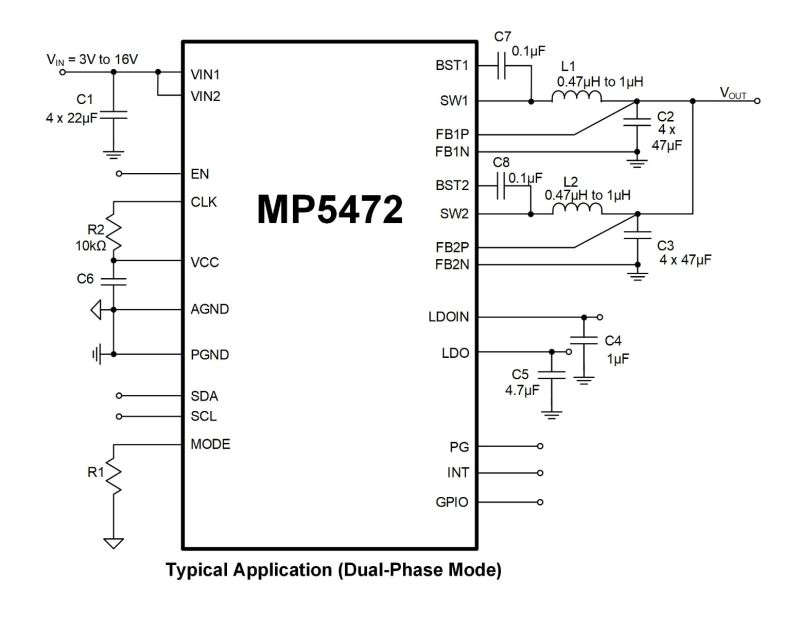

Buck 1/Buck 2 Support up to 12A of Continuous Current in Dual-Phase Mode
One 500mA Low-Dropout (LDO) Regulator with Adjustable Output Voltage (V_OUT)
I²C-Configurable Reference Voltage (V_REF) with Slew Rate Control
Configurable Switching Frequency (f_SW): 500kHz, 750kHz, 1MHz, 1.25MHz
Accurate V_OUT, Output Current (I_OUT), and Junction Temperature (T_J) Monitoring via the I²C
Open-Drain Power Good (PG) Indication and General Status Interrupt
Multiple-Time Programmable (MTP) Memory Soft-Start/Soft Shutdown and Delay with MPS-Patented FLEX-Timer Sequence Control
Selectable Pulse-Frequency Modulation (PFM)/Pulse-Width Modulation (PWM) Mode
Adjustable Frequency and Current Limit via the I²C
Over-Current Protection (OCP), Under-Voltage Protection (UVP), Over-Voltage Protection (OVP), and Thermal Shutdown Protection

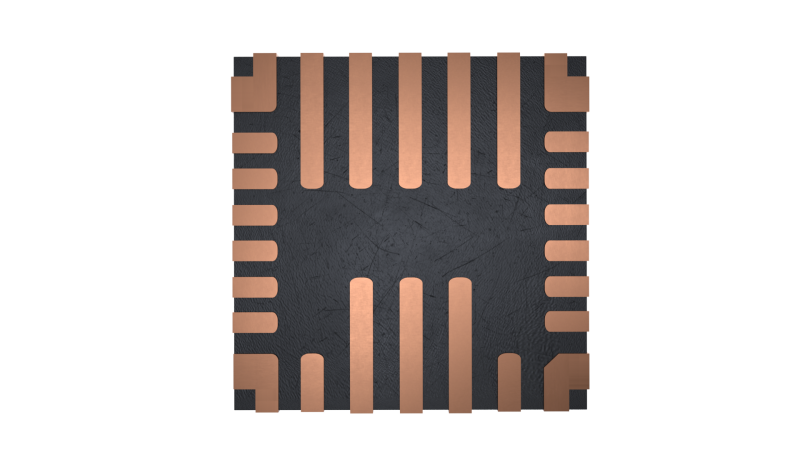

Available in a QFN-26 (4mmx4mm) Package

Active Part Numbers:

MP5472GR-xxxx-Z MP5472GR-xxxx-P MP5472GR-0000-Z MP5472GR-0000-P

Meaning of P & Z

Related Products

Optimized Performance with MPS Inductor

EVL5472-Q-00A 12V, 6A, Fully Integrated Dual-Output PMIC with I²C Interface and Flexible System Configurations Evaluation Board

MPL

Optimized Performance with MPS Inductor

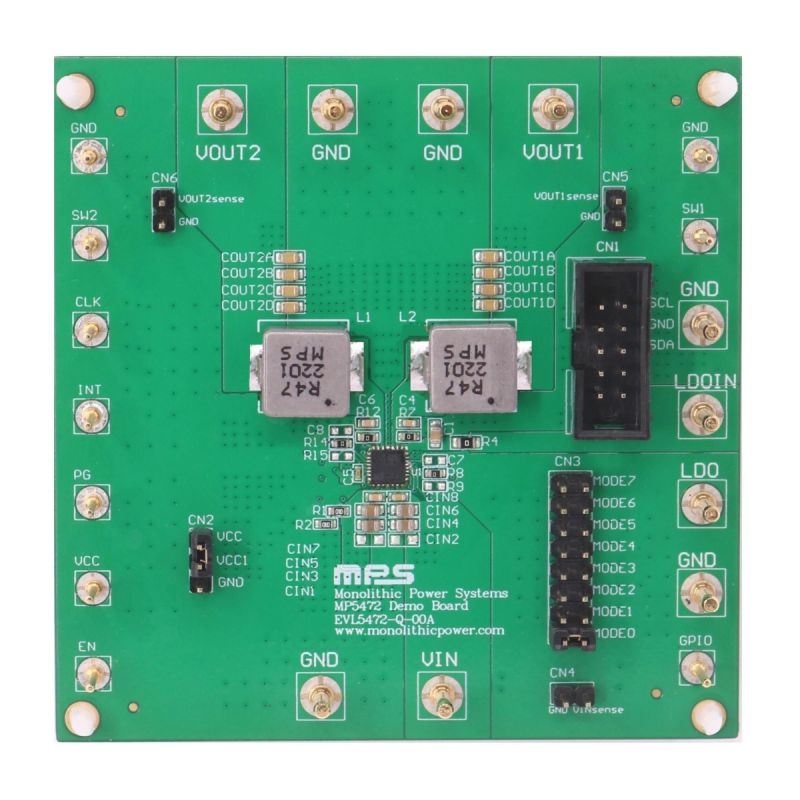

The EVL5472-Q-00A evaluation board is designed to demonstrate the capabilities of the MP5472, a complete power management IC (PMIC) that integrates two highly efficient stepdown DC/DC converters, one adjustable-output low-dropout (LDO) regulator, and flexible logic interface.

The MP5472 adopts constant-on-time (COT) control, and the DC/DC converters provide fast transient response. A configurable 500kHz to 1.25MHz switching frequency (f_SW) greatly reduces external capacitance.

Full protection features include under-voltage lockout (UVLO), over-current protection (OCP), under-voltage protection (UVP), over-voltage protection (OVP), and thermal shutdown.

The output voltage (V_OUT) is adjustable via the I²C bus, or can be preset uding the multiple-time programmable (MTP) memory. The power-on and power-off sequence and delay are configurable via the MTP or can be controlled via the I²C bus.

The two rails can be configured to work in either independent mode or parallel mode. Current-sharing is implemented when working in parallel mode.

The MP5472 requires a minimal number of external components, and is available in a space-saving QFN-26 (4mmx4mm) package. It is recommended to read the MP5472 datasheet prior to making any changes to the EVL5472-Q-00A.

$50.00
+ tax
