MP5408
36V, 6A, Frequency Programmable, Step-Down Converter with Smart, Dual, USB Charging Ports
Active Part Numbers:
MP5408GU-P MP5408GU-Z
Meaning of P & Z
Evaluation Tools

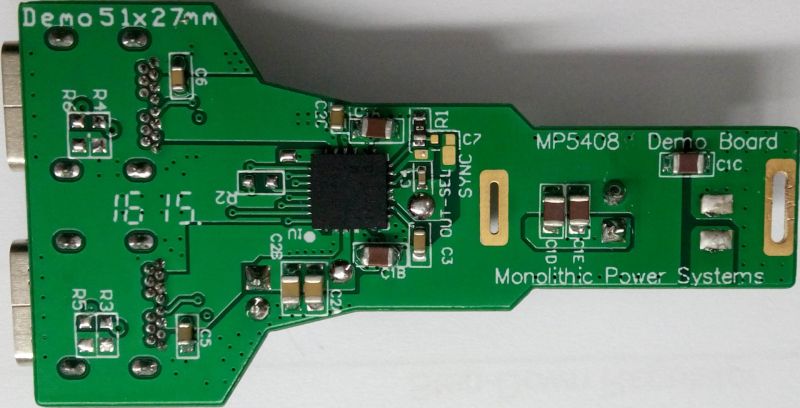

EV5408-U-00A Evaluation Kit Smart, Dual USB Charging Port Power Converter with Programmable Frequency
The MP5408 integrates a monolithic step-down switch-mode converter with two USB current-limit switches and charging port identification circuitry for each port. It achieves 6A output current over a wide input-supply range with excellent load and line regulation.
The output of the USB switch is current limited. Both USB ports support DCP schemes for Battery Charging specification (BC1.2), the Divider Mode, 1.2V/1.2V Mode and USB TYPE-C 5V@3A DFP Mode eliminating outside user interaction.
MP5408 Resources
-
