MP5099
Active Part Numbers:
MP5099GDT-Z MP5099GDT-P
Meaning of P & Z
Related Products

EV5099-D-00A 12V/5V Dual-Channel Current-Limit Switch with Current Monitor Evaluation Board

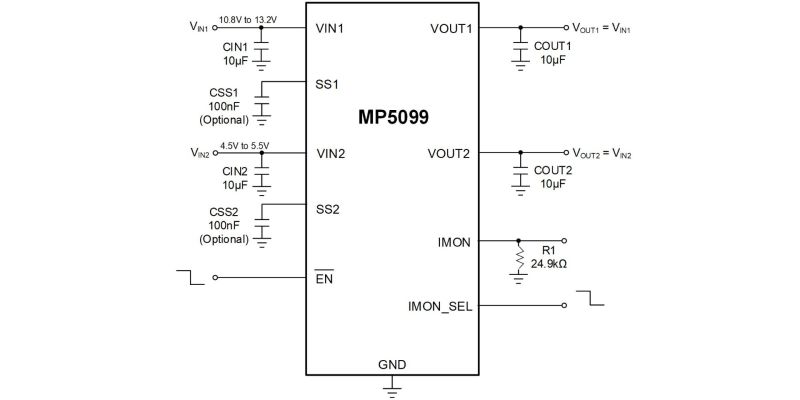

The EV5099-D-00A evaluation board is designed to demonstrate the capabilities of the MP5099, a protection device that protects circuitry on the output from transients on the input. The MP5099 also prevents undesired shorts at the input and transients from the output. The MP5099 is a small on resistance (RDS(ON)), low quiescent current (IQ), dual-channel current-limit switch.
At start-up, the inrush current is limited by the slew rate at the output. The slew rate is controlled by a capacitor at the SS pin (CSS). The maximum load at the output is current-limited. The current limit magnitude is internally fixed.
The output voltage (VOUT) is limited by the output over-voltage protection (OVP) function. The output current (IOUT) of each rail can be monitored via a resistor connected to the IMON pins.

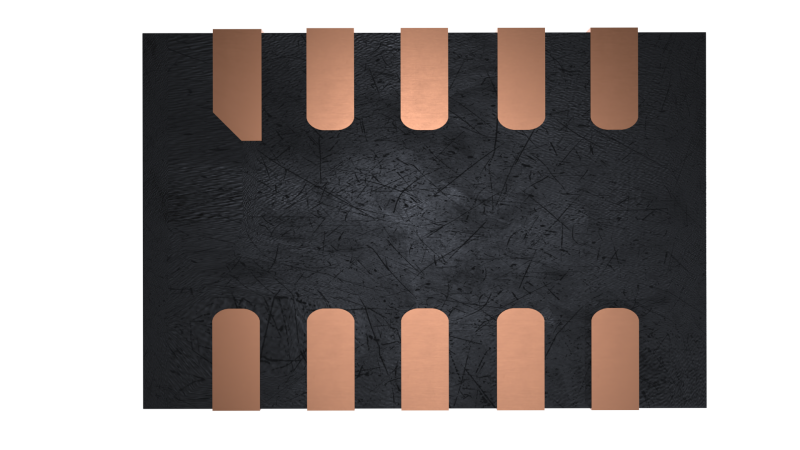

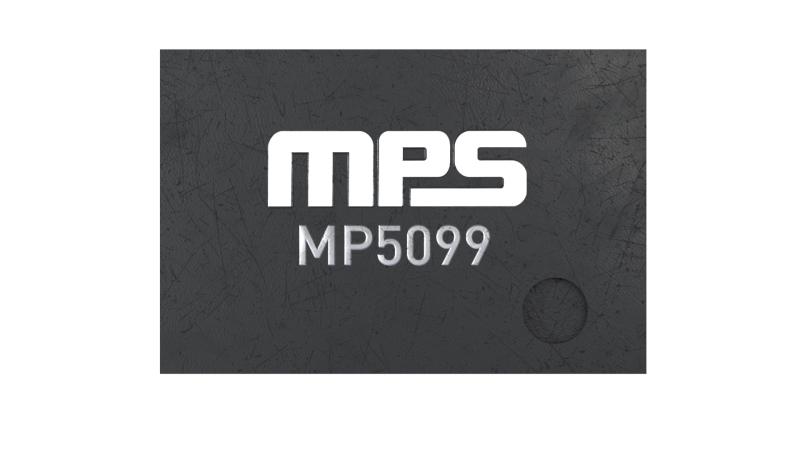

The MP5099 is available in a space-saving TQFN-10 (2mmx3mm) package.
