MP2162A

High Efficiency, 2A, 6V, 1.5MHz, 17uA Iq, COT Synchronous Step Down Converter with better Vfb accuracy and better load regulation in QFN package

Datasheet

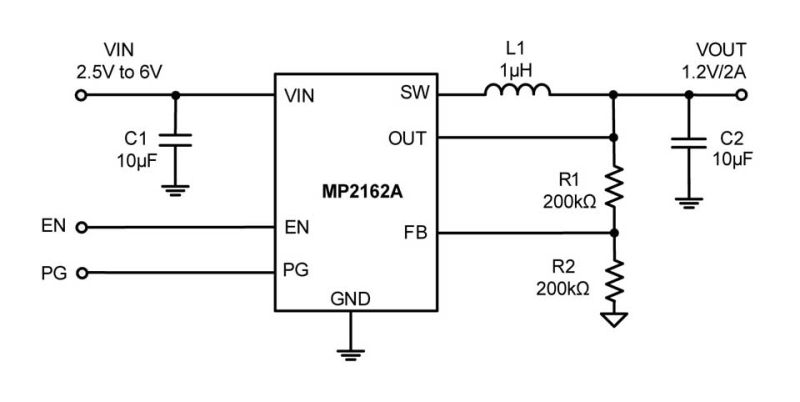

Description

The MP2162A is a monolithic step-down, switch-mode converter with built-in internal power MOSFETs. It achieves 2A of continuous output current from a 2.5V to 6V input voltage with excellent load and line regulation. The output voltage can be regulated as low as 0.6V.
The constant-on-time control scheme provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown.
The MP2162A is available in small QFN-8 (2.0x1.5mm) and TQFN-8 (2.0x1.5mmx0.75mm) packages and requires only a minimal number of readily available, standard, external components.
The MP2162A is ideal for a wide range of applications, including high performance DSPs, FPGAs, PDAs, and portable instruments.

Features & Benefits

Very Low IQ of 17μA
Default 1.5MHz Switching Frequency
1.5% VFB Accuracy
EN and Power Good for Power Sequencing
Wide 2.5V to 6V Operating Input Range
Output Adjustable from 0.6V
Up to 2A of Output Current
100% Duty Cycle in Dropout
110mΩ and 60mΩ Internal Power MOSFET Switches
Cycle-by-Cycle Over-Current Protection
Short-Circuit Protection with Hiccup Mode
Stable with Low ESR Output Ceramic Capacitors
Available in QFN-8 (2.0x1.5mm) and TQFN-8 (2.0x1.5mmx0.75mm) Packages

Active Part Numbers:

MP2162AGQH-P MP2162AGQHT-P MP2162AGQHT-Z MP2162AGQH-Z MP2162AGQHU-Z
