- MIE1W0505BGY
MIE1W0505BGY
Session textval
Session Titefor popup

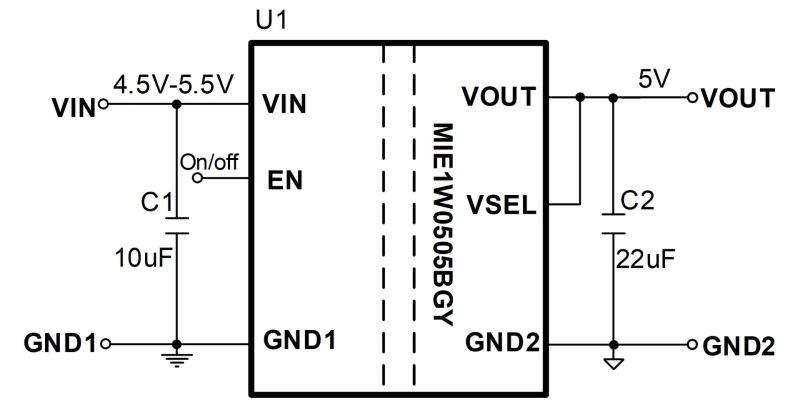

Description
The MIE1W0505BGY is an isolated, regulated, DC/DC power module. It can support 3V to 5.5V input voltage (VIN) applications. The MIE1W0505BGY features excellent load and line regulation, supporting up to 1W of output power (POUT).
The MIE1W0505BGY integrates the power MOSFET, transformer, and feedback circuit all in one chip, achieving excellent performance and saving size. When the output voltage (VOUT) is below the target VOUT, the IC starts switching to deliver power from VIN to VOUT. Once VOUT rises to the target VOUT, switching stops.
The MIE1W0505BGY uses capacitive isolation technology for feedback blocking, which can regulate VOUT without the need for a traditional optocoupler. This module provides a smaller size and higher reliability operation compared to traditional isolated power modules. The MIE1W0505BGY features continuous short-circuit protection (SCP) and over-temperature protection (OTP).
It is available in a compact SOIC-16 wide-body (WB) package.
-
Show more
Show less
Features & Benefits
- 3V to 5.5V Input Voltage (VIN) Operation Range
- Selectable 5V or 3.3V Output Voltage (VOUT):
- 5V to 5V: ≥200mA Available Load Current (ILOAD)
- 5V to 3.3V: ≥200mA Available ILOAD
- 3.3V to 3.3V: ≥75mA Available ILOAD
- Max 1W of Output Power (POUT)
- Supports Infinite Capacitive Load
- 0.5% Load Regulation
- 0.2% Line Regulation
- Continuous Short-Circuit Protection (SCP)
- Over-Temperature Protection (OTP)
- CB Certification According to IEC62368-1 (Planning)
- Meets EN55032 Class B Emissions Standards
- -40°C to 125°C Operating Temperature Range
- Available in an SOIC-16 Wide-Body (WB) Package

Active Part Numbers:
MIE1W0505BGY-3R-Z MIE1W0505BGY-3R-P MIE1W0505BGY-5R-Z MIE1W0505BGY-5R-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
Meaning of P & Z
