MPQ2177-AEC1

MPQ2177-AEC1

5.5V, 1A, 2.4MHz, Synchronous Step-Down Converter with Power Good and Soft Start, AEC-Q100 Qualified

Datasheet

Description

The MPQ2177 is a monolithic, step-down, switch-mode converter with built-in internal power MOSFETs. It achieves 1A of continuous output current (I_OUT) across a 2.5V to 5.5V input voltage (V_IN) range, with excellent load and line regulation. The output voltage (V_OUT) can be regulated to as low as 0.6V.

The constant-on-time (COT) control scheme provides fast transient response and eases loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown. The MPQ2177 is ideal for a wide range of applications, including automotive infotainment systems, clusters, and telematics.

The MPQ2177 requires a minimal number of readily available, standard external components, and is available in an ultra-small QFN-8 (1.5mmx2mm) package.

Features & Benefits

Designed for Automotive Applications:

Wide 2.5V to 5.5V Operating V_IN Range
Up to 1A Output Current (I_OUT)
1% FB Accuracy
Junction Temperature Operation from -40°C to +150°C

High Performance for Improved Thermals

75mΩ and 45mΩ Internal Power MOSFETs

Optimized for EMC/EMI:

2.4MHz Switching Frequency (f_SW)
Forced Continuous Conduction Mode (FCCM) across the Full Load Range
Mesh-Connect^TM Flip-Chip Package

Optimized for Board Size and BOM

Built-In Internal Power MOSFETs
Integrated Compensation Network
Fixed Output Options

Additional Features:

EN for Power Sequencing
Power Good (PG)
100% Duty Cycle On
External Soft Start (SS) Control
Output Discharge
Output Over-Voltage Protection (V_OUT OVP)
Short-Circuit Protection (SCP) with Hiccup Mode
Available in a QFN-8 (1.5mmx2mm) Package
Available in a Wettable Flank Package
Available in AEC-Q100 Grade 1

Active Part Numbers:

MPQ2177GQHE-Z MPQ2177GQHE-P MPQ2177GQHE-AEC1-Z MPQ2177GQHE-AEC1-P MPQ2177GQHE-12-AEC1-Z MPQ2177GQHE-12-AEC1-P MPQ2177GQHE-18-AEC1-Z MPQ2177GQHE-18-AEC1-P

Meaning of P & Z

Related Products

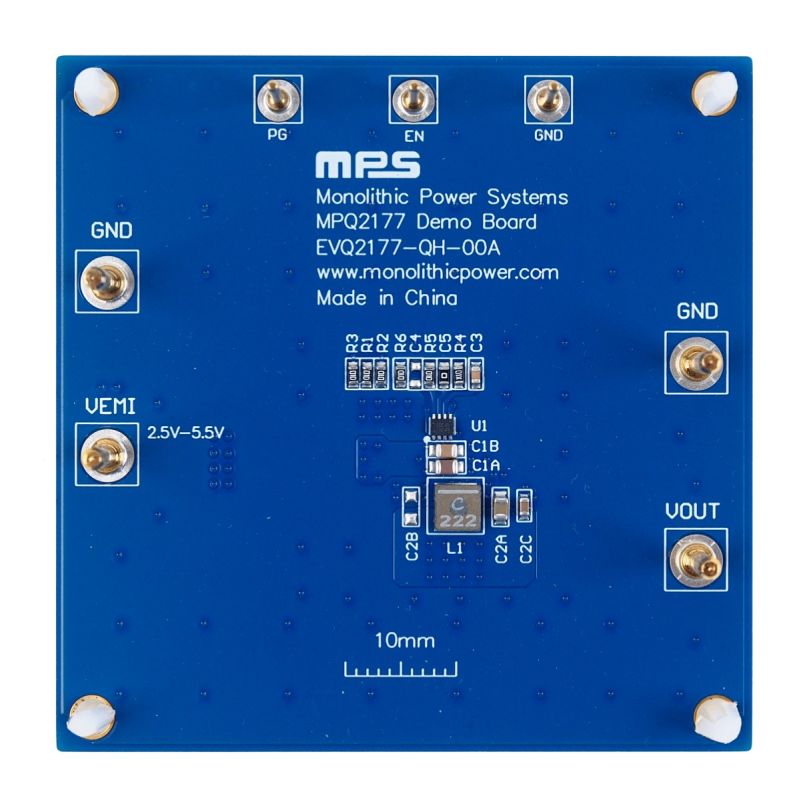

EVQ2177-QH-00A 1A, 6V, 2.4MHz, Synchronous Step-Down Converter Evaluation Board, AEC-Q100 Qualified

The EVQ2177-QH-00A is an evaluation board designed to demonstrate the capabilities of the MPQ2177GQHE-AEC1, a monolithic, step-down switch-mode converter with built-in internal power MOSFETs. The MPQ2177-AEC1 achieves up to 1A of output current (I_OUT) from a 2.5V to 6V input voltage (V_IN) range, with excellent load and line regulation. The output voltage (V_OUT) can be regulated to as low as 0.6V. A 100% maximum duty cycle can be reached in low-dropout (LDO) mode.

Constant-on-time (COT) control offers a simpler control loop and faster transient response. By using V_IN feed-forward, the MPQ2177-AEC1 maintains a nearly constant switching frequency (f_SW) across the input and load ranges. Forced continuous conduction mode (FCCM) provides a stable frequency and a lower output ripple.

An open-drain power good (PG) signal indicates nominal voltage after the soft-start time (t_SS) elapses. Once the feedback (FB) voltage (V_FB) reaches 90% of the reference voltage (V_REF), PG is pulled high. Once V_FB drops to 85% of V_REF, PG is pulled to GND.

Full protection features include cycle-by-cycle current limiting, short-circuit protection (SCP), reliable over-voltage protection (OVP), and auto-recovery thermal protection.

The EVQ2177-QH-00A is a fully assembled and tested evaluation board. The MPQ2177-AEC1 is available in a QFN-8 (1.5mmx2mm) package, and it is available in AEC-Q100 Grade 1.
