mEZDPD3603AS

PROGRAMMABLE
Active
mEZDPD3603AS

Configurable 36V DC/DC Step-Down Power Module up to 3A

Need to configure a different VIN, IOUT?

Up to 6A
Up to 20A

Create Custom Power Module

& Buy Now
Show me how
Customizable Specs
Step 1: Input your custom specs




VIN Typ. 4.5V-36V
VIN Min 4.5V-36V
VIN Max 4.5V-36V
VOUT 0.6V-5V
IOUT Up to 3A
Step 2: View Custom Datasheet with parameters & simulation
Step 3: Save Design to Your Account
Step 4: Order your custom evaluation
board or module.

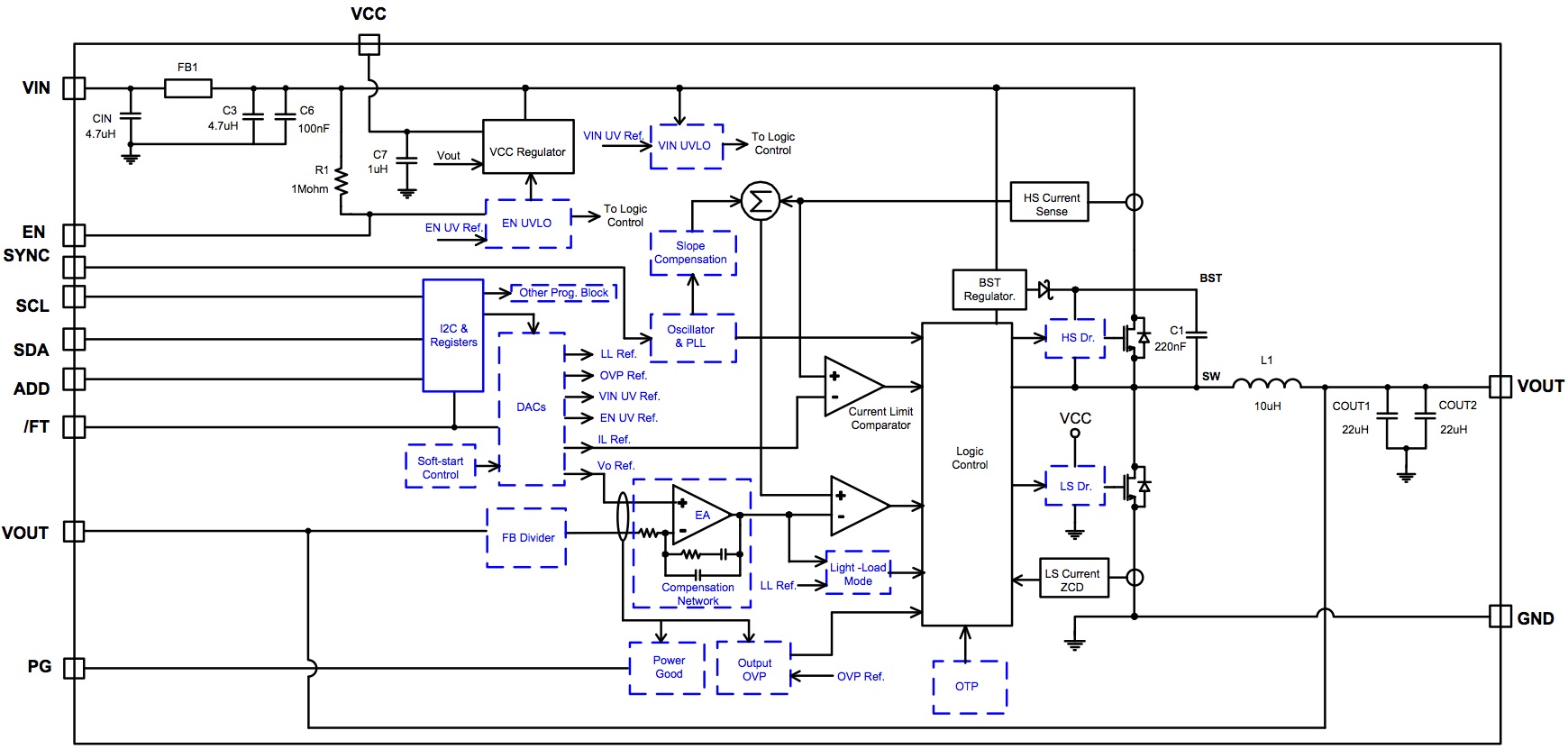

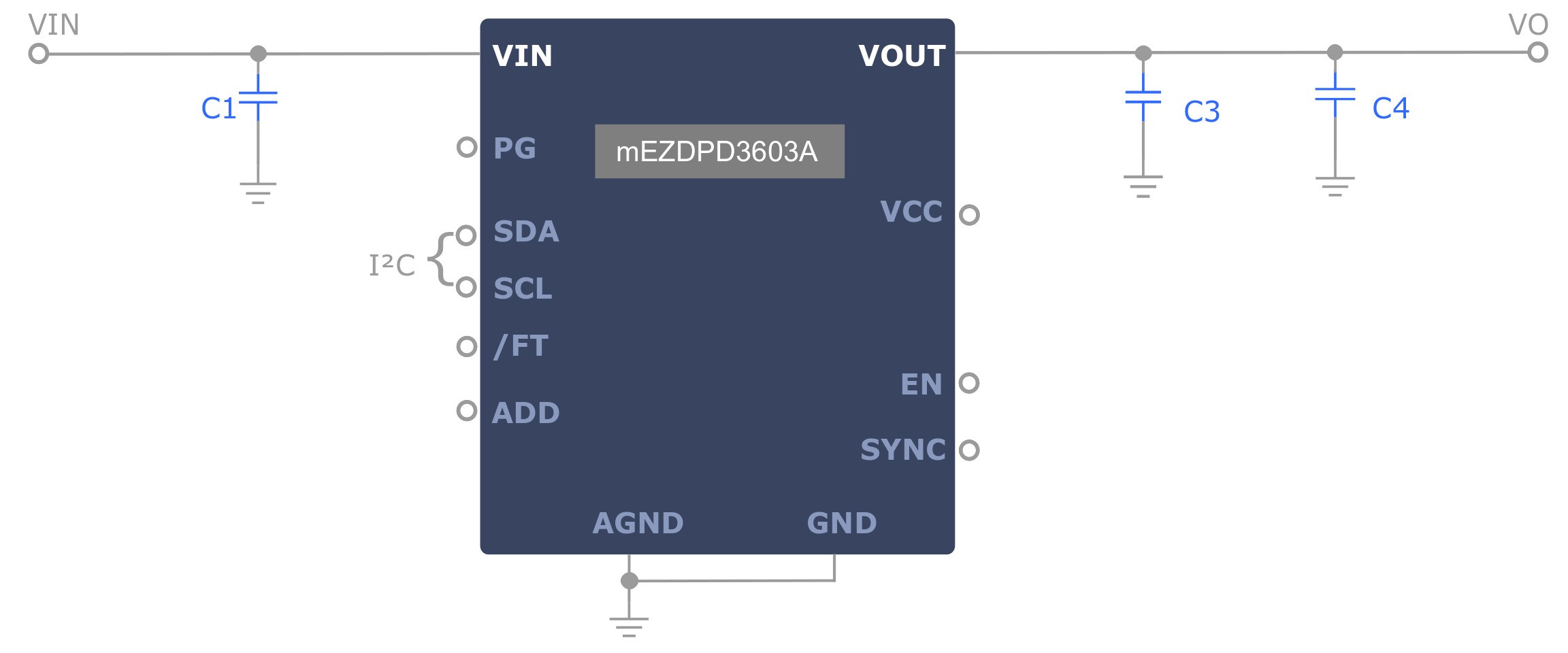

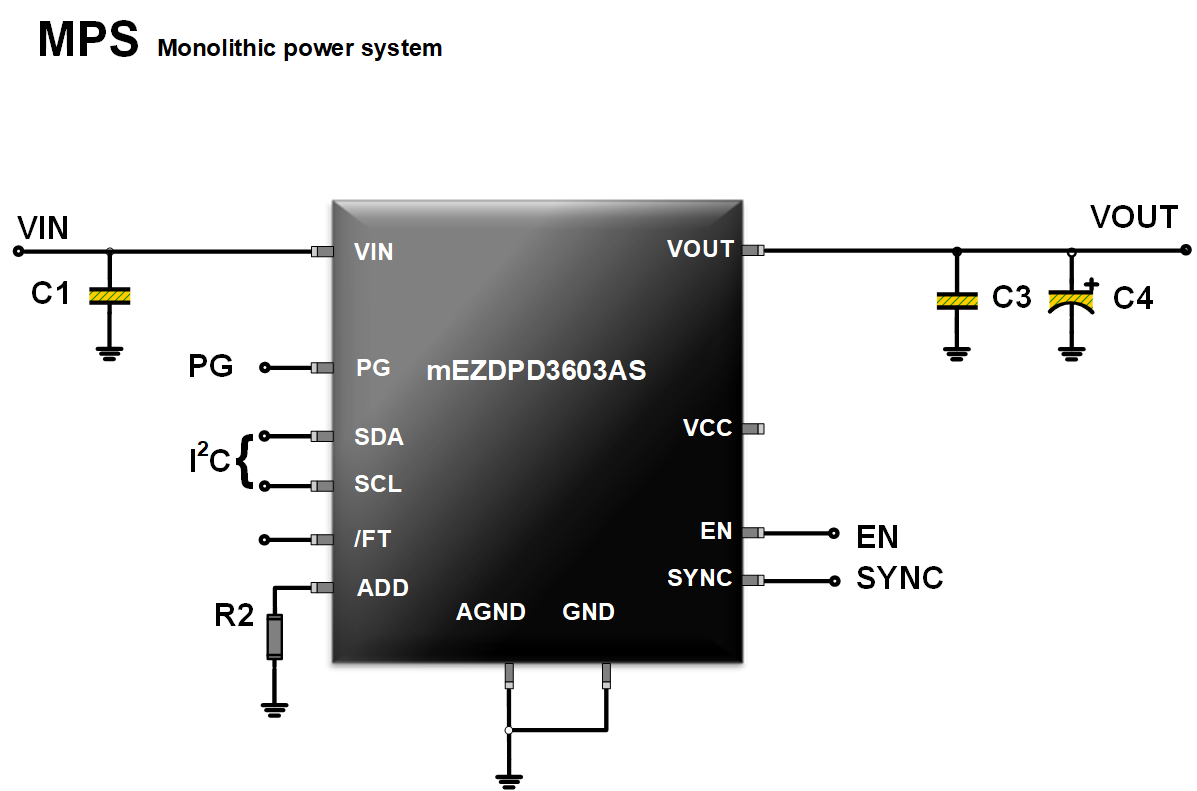

The mEZDPD3603AS is a configurable DC/DC step-down power module up to 3A and 0.6-5V output voltage. This part has a multiple time programmable memory and a simple GUI to program.

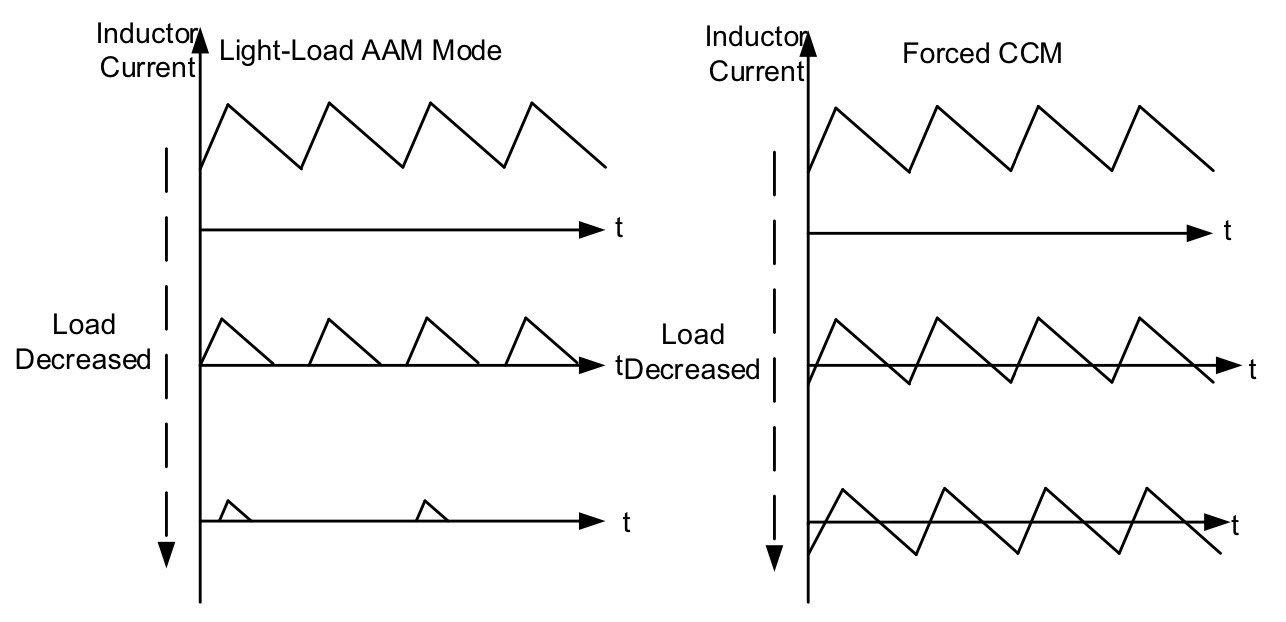

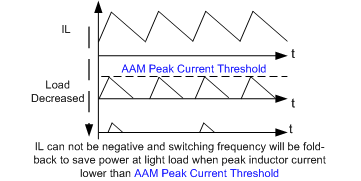

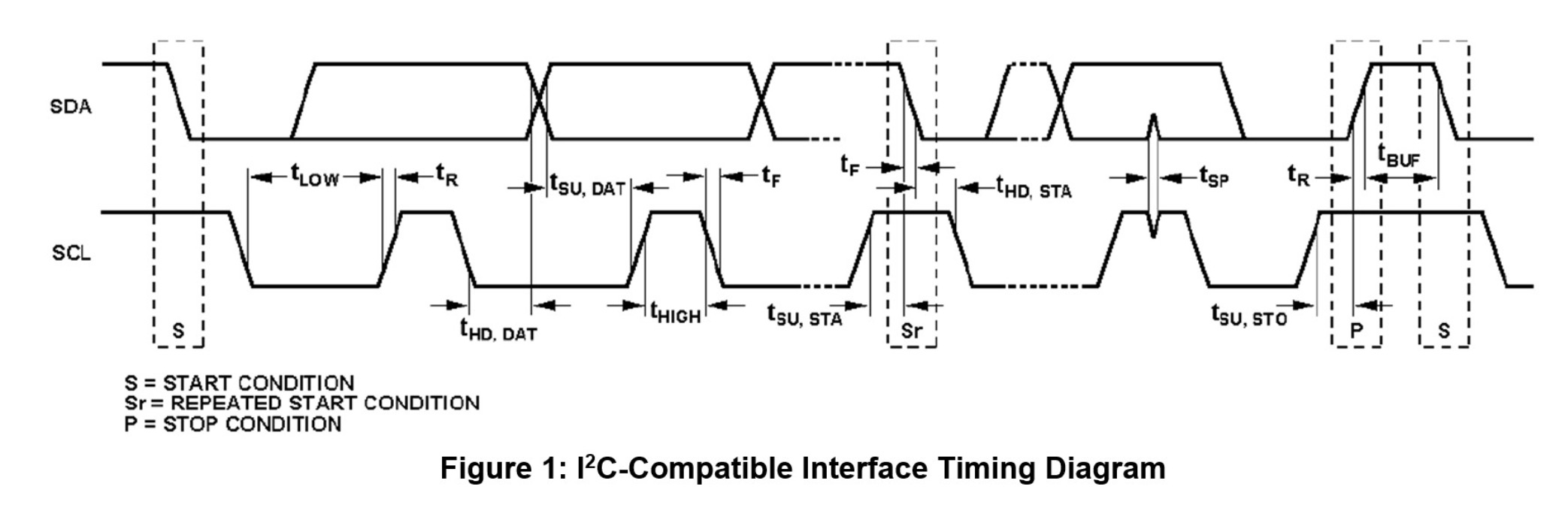

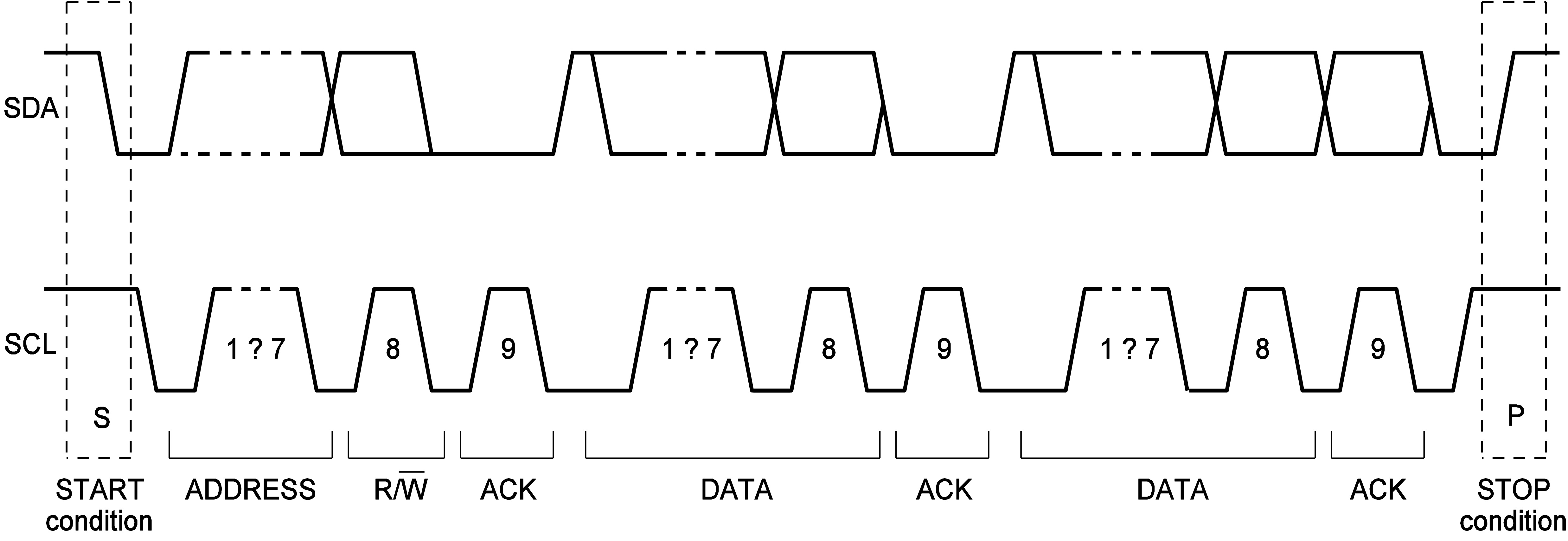

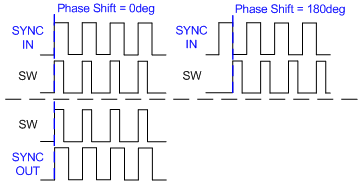

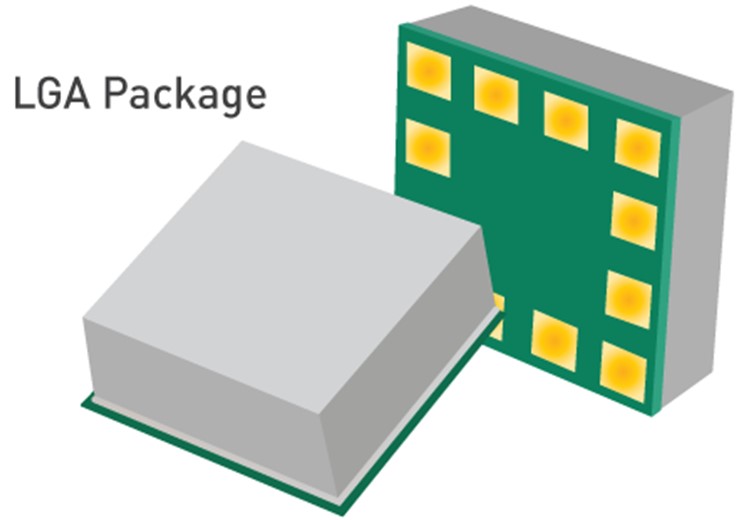

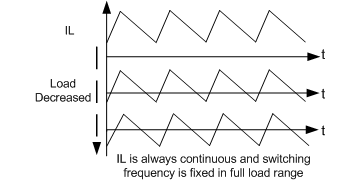

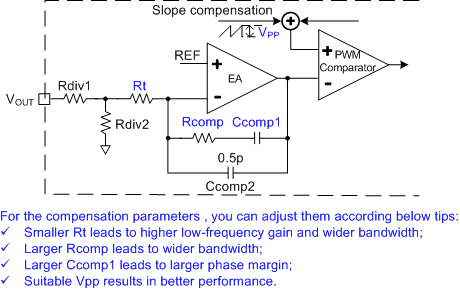

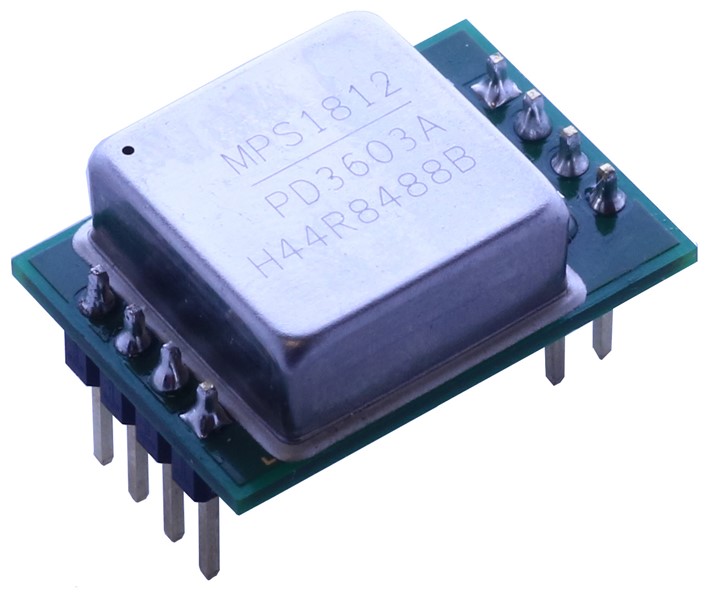

Digital programmable features enable the mEZDPD36030AS to be controlled and programmed via an I2C PMBus. Operation parameters can be programmed, including compensation, the output voltage transition slew rate, the switching frequency, and power save mode. Pre-configured DIP package modules are available to provide quick evaluation.

Want your custom configuration pre-loaded to the evaluation board module? Create and save a module configuration and order evaluation board here

  • Quantity Price
  • 1+
    $12.40 /unit
  • 10+
    $10.33 /unit  17 % Discount
  • 100+
    $9.93 /unit  20 % Discount
  • 250+
    $8.54 /unit  31 % Discount
  • 500+
    $7.76 /unit  37 % Discount


Learn about our Evaluation Kit
Talk to an Engineer or get a Quote

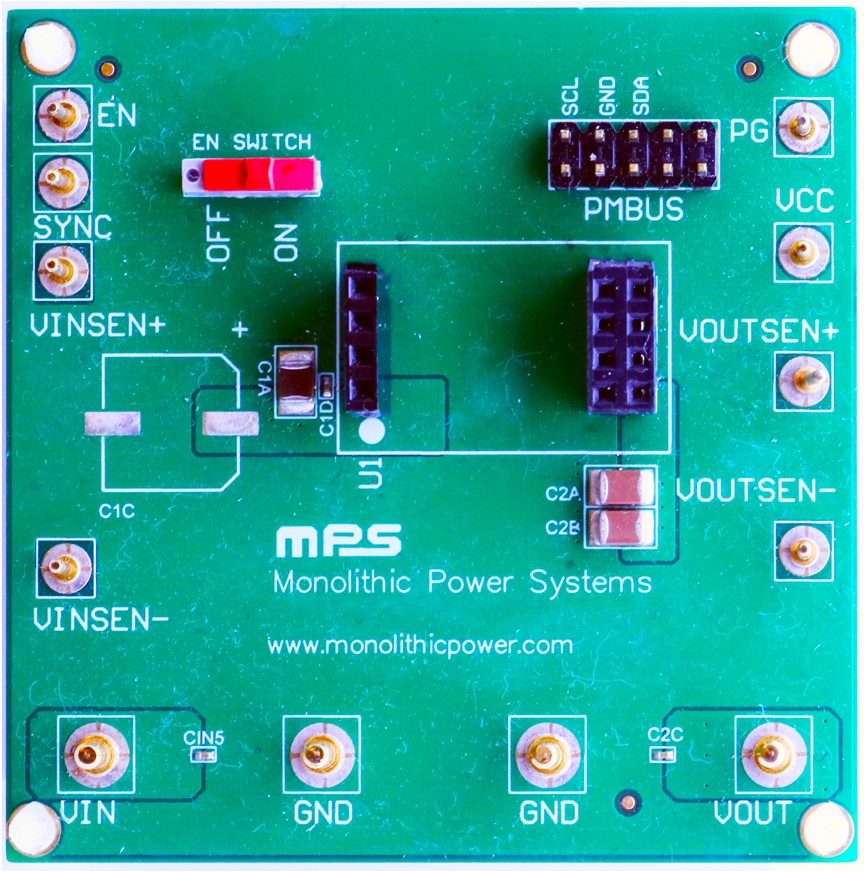

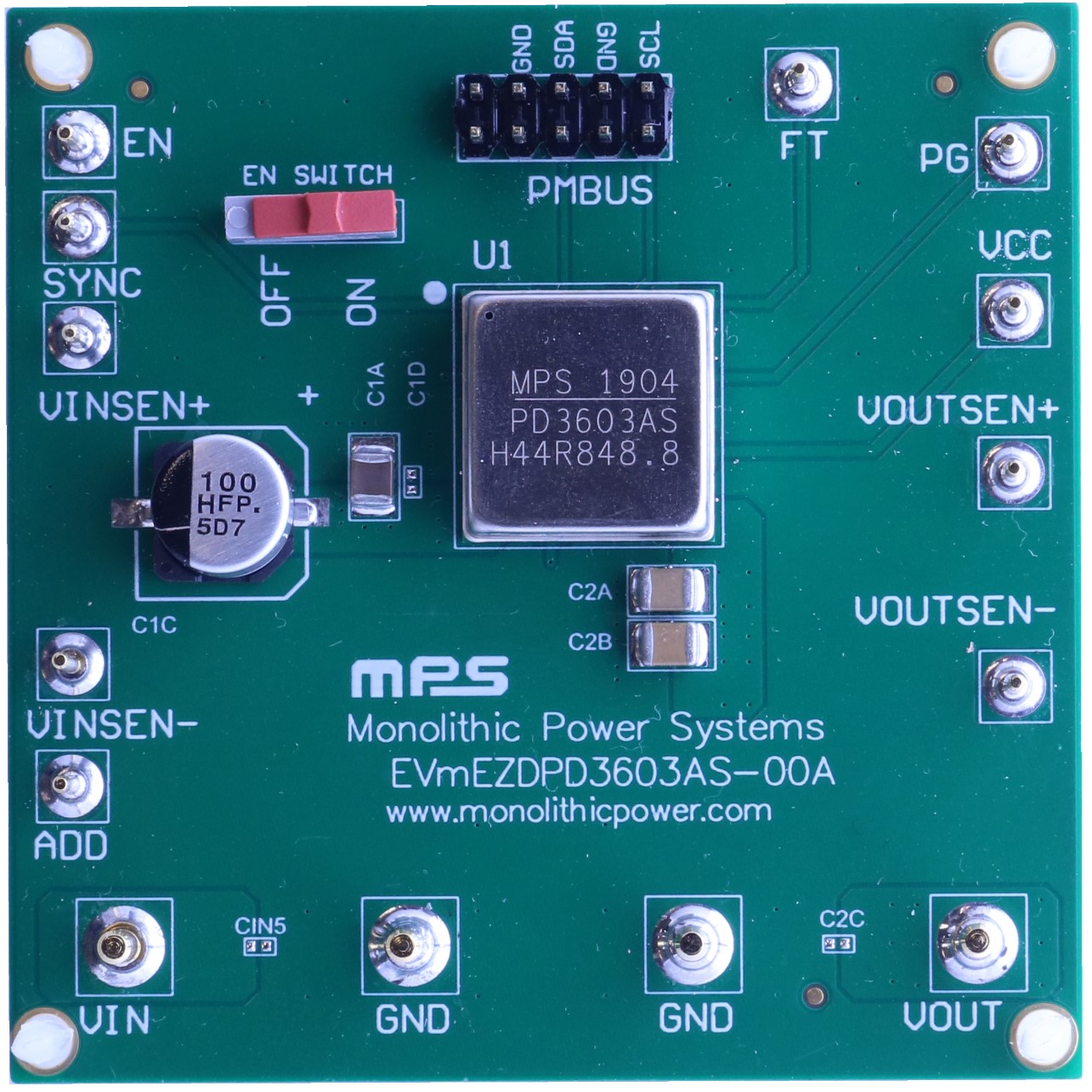

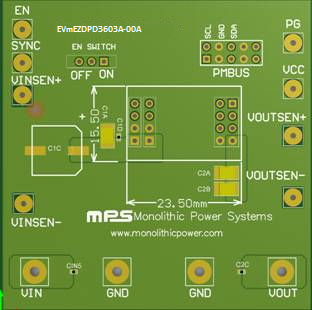

Evaluation board for the mEZDPD3603A configurable power module.

The EVmEZDPD3603A is the evaluation board for the mEZDPD3603A configurable DC/DC power module with up to 3A and 0.6-5V output voltage. This part has a multiple time programmable memory and can be programmed with the Virtual Bench Pro GUI software available below.

Use the GUI to configure and monitor part performance such as Vin, Vout, Iout & Temperature. Current and output voltage values are all that is needed to start evaluation. Additional parameters have default settings and can be re-configured as needed.

$5.00 + tax



Evaluation kit for the mEZDPD3603A configurable power module.

The PKT-mEZDPD3603A is the evaluation kit for the mEZDPD3603A configurable DC/DC power module with up to 3A and 0.6-5V output voltage. This part has a multiple time programmable memory and can be programmed with the Virtual Bench Pro GUI software available below.

Use the GUI to configure and monitor part performance such as Vin, Vout, Iout & Temperature. Current and output voltage values are all that is needed to start evaluation. Additional parameters have default settings and can be re-configured as needed.

$75.00 + tax



Software to configure and monitor I2C digital parts & evaluation kits

View & Edit Registers
Monitor
  • Input & Output Voltage
  • Input & Output Current
  • Temperature
Hardware & Software Requirements:
  • USB to I2C Communication Device EVKT-USBI2C-02
  • PC running Window 7 or later
  • .Net Framework 4.0 or later
Use this software with evaulation kits and products using I2C Communication protocol



Communication Interface Device USB to I2C/PMBus, included with product evaluation kit or can be purchased separately.

The EVKT-USBI2C-02 is included with product evaluation kits, or it can be purchased separately. EVKT-USBI2C-02 provides the communication interface for USB to I2C or USB to PMBus. It is designed to work with MPS I2C and PMBus products, and Virtual Bench Pro, and I2C GUI tools. USB driver will install automatically or download directly.

The EVKT-USBI2C-02 kit includes:

  • 1 USB to I2C communication device interface
  • 1 USB cable
  • 1 10-pin ribbon cable
  • 1 3-pin ribbon cable
  • Datasheet and driver files

$25.00 + tax


Quality Policy, Certificates & Reliability Reports
All MPS parts are lead-free, halogen-free and adhere to the RoHS directive. See Environmental section for details.
