MP4601

Power-Leverage Buck-Boost WLED Driver

NRFND

MP4601

NOT RECOMMENDED FOR NEW DESIGNS

Power-Leverage Buck-Boost WLED Driver

NRFND

MP4601 continues to be in production for existing customers. Please consider this alternative for new designs:

MP4603

Active

MP4603

Active

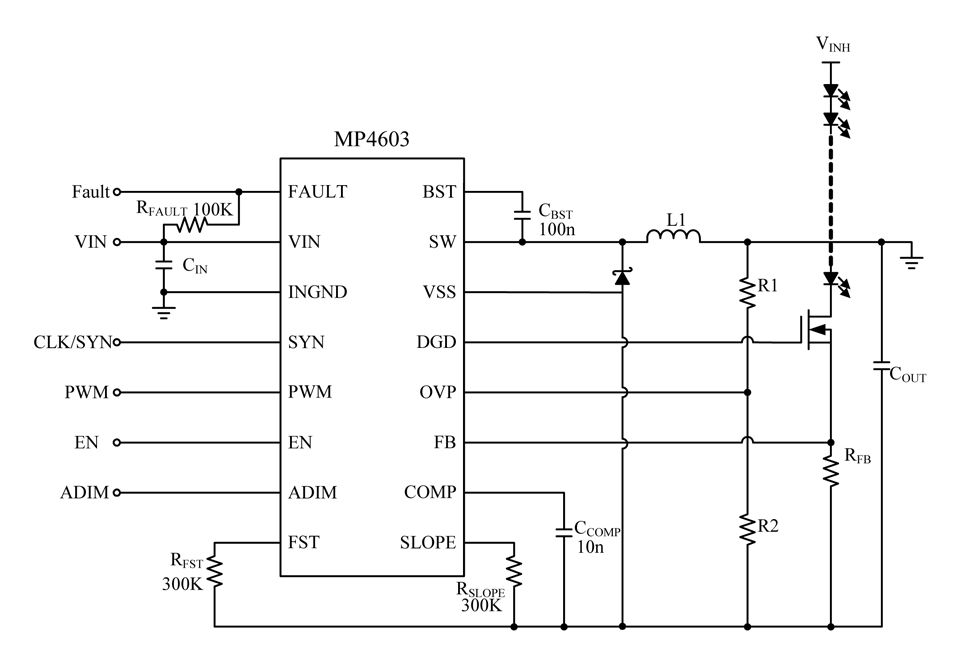

Power-Leverage Buck-Boost WLED Driver with Separate ADIM and PDIM

Features & Benefits

  • Novel Power-Leverage-Control Technology
  • Unique Step-Up/Down Operation
  • Up to 99.5% Efficiency
  • 0.5Ω Internal Power MOSFET
  • Switching Frequency Synchronization
  • Over 1:1000 Dimming Ratio
  • Separate Analog and PWM Dimming
  • ±5% 200mV Reference Voltage
  • 10μA Shutdown Mode
  • Cycle-by-Cycle Over-Current Protection
  • Thermal Shutdown Protection
  • LED String Open and Short Protection
  • FAULT Output at LED Protection
  • Output Short-Circuit Protection
  • Available in SOIC16 Package

… and many more!

Active Part Numbers:

MP4601EF-LF-P MP4601EF-LF-Z MP4601ES-LF-P MP4601ES-LF-Z

Design Resources

Symbol, Footprint & 3D Model
30+ more formats Show more
Cad Symbols Symbols (36)
Cad Footprints Footprint (34)
Cad 3D Models 3D Models (15)

Buy direct from MPS



Learn about our Evaluation Kit
Talk to an Engineer or get a Quote
Quality Policy, Certificates & Reliability Reports
All MPS parts are lead-free, halogen-free and adhere to the RoHS directive. See Environmental section for details.
