MP2349
Active Part Numbers:
MP2349GG-Z MP2349GG-P
Meaning of P & Z
Related Products
EV2349-G-00A 24V, 6.5A, Low-IQ, Step-Down Converter Evaluation Board
The EV2349-G-00A is an evaluation board designed to demonstrate the capabilities of the MP2349, a fully integrated, high-frequency, synchronous, rectified, step-down switch-mode converter. It offers a very compact solution that can achieve up to 6.5A of continuous output current (IOUT) and 7.5A of peak output current (IOUT_MAX) across a wide input supply range.
The MP2349 operates at high efficiency across a wide IOUT load range based on MPS’s proprietary switching loss reduction technology and internal, low on resistance (RDS(ON)) power MOSFETs.
Adaptive constant-on-time (COT) control mode provides fast transient response and eases loop stabilization. The DC auto-tune loop and remote differential sense provide excellent load and line regulation.
Full protection features include over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), and thermal shutdown.

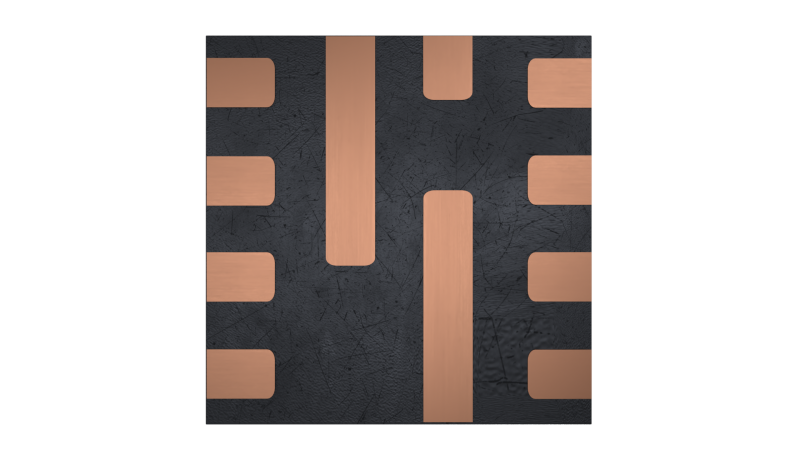

The MP2349 requires a minimal number of external components, and is available in a QFN-11 (2mmx2mm) package.
