MP20044
NOT RECOMMENDED FOR NEW DESIGNS
MP20044 continues to be in production for existing customers. Please consider this alternative for new designs:
MP20041

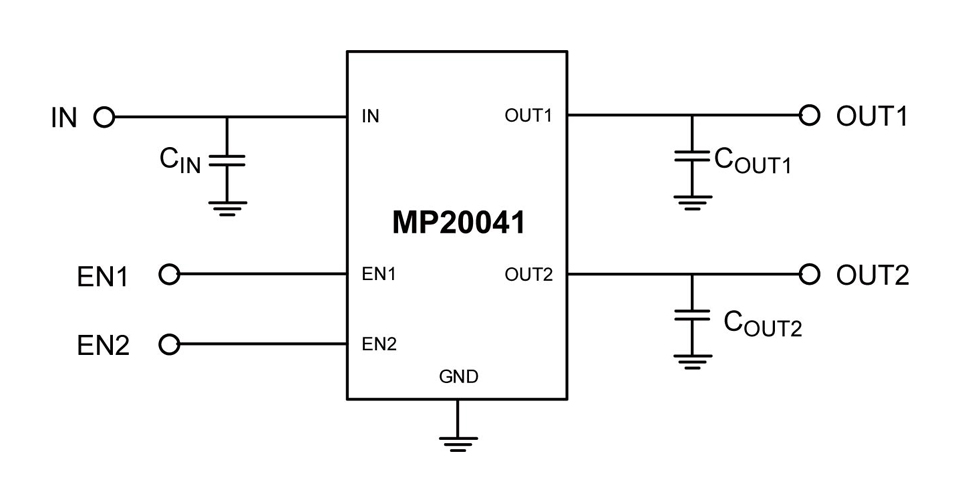

MP20041
Dual, Ultra Low Noise, High PSRR 300mA Linear Regulator
Features & Benefits
- Wide Operating Voltage Ranges: 2.5V to 6V
- Two LDOs in a 2mmx2mm TQFN8 Package
- Up to 300mA Output Current (Per Channel)
- Dual Enable Pins Control Each Output
- 72dB PSRR at 10kHz
- 11μVRMS Ultra Low Noise Output with No Noise Bypass Capacitor Required
- 73mV Dropout at 100mA Load
- Very Fast Line/Load Transient Responses with Small Input/Output Capacitor
- Current Limit and Thermal Protection
… and many more!
Active Part Numbers:
MP20044DGT-JG-LF-Z MP20044DGT-SG-LF-Z
Meaning of P & Z
