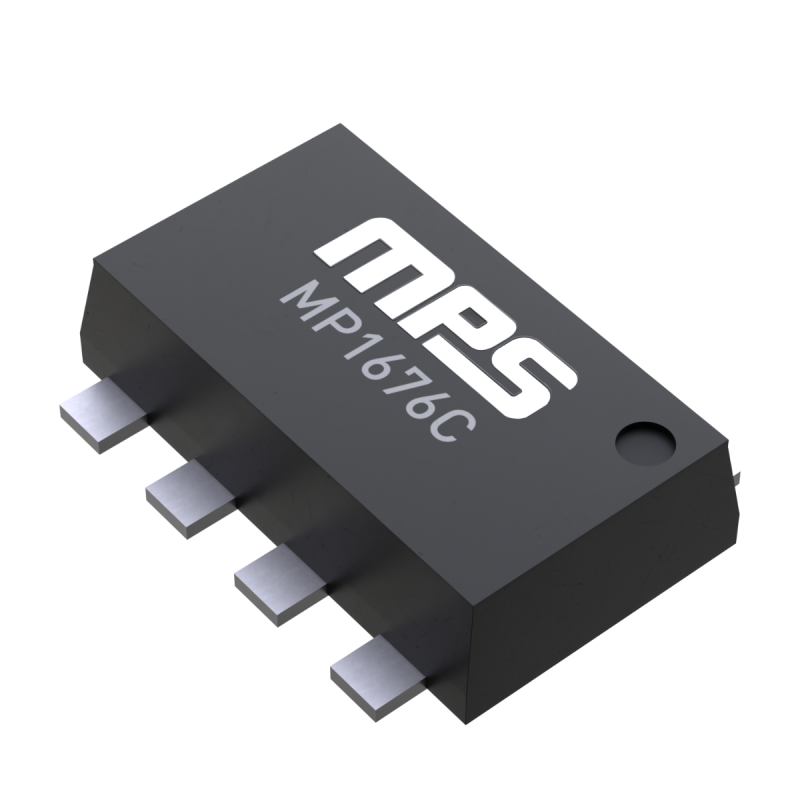

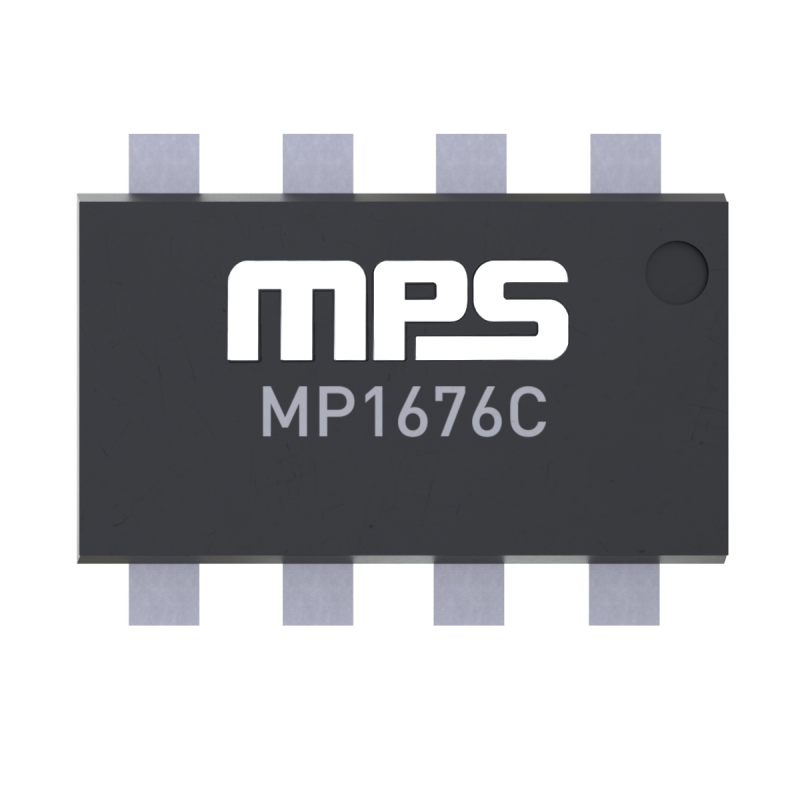

MP1676C

16V, 6A, 800kHz, Step-Down Converter with FCCM in an SOT583 Package

MPL

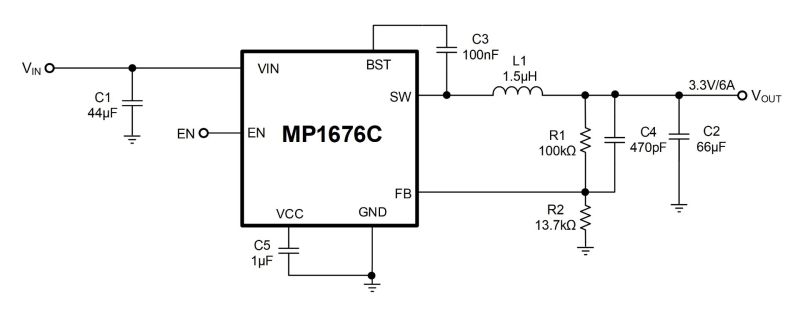

Description

MPL

Optimized Performance with MPS Inductor

The MP1676C is a synchronous, rectified, step-down switch-mode converter with built-in, internal power MOSFETs. It offers a very compact solution to achieve 6A of continuous output current (I_OUT) across a wide input supply range.

The M1676C operates at a high efficiency across a wide I_OUT load range based on MPS's proprietary switching loss reduction technique and internal low on resistance (R_DS(ON)) power MOSFETs.

Adaptive constant-on-time (COT) control provides fast transient response, facilitates loop stabilization, and provides tight output regulation.

Full protection features include over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), and thermal shutdown.

The MP1676C requires a minimal number of readily available, standard external components, and it is available in a space-saving SOT583-8 (1.6mmx2.1mm) package

Features & Benefits

Forced Continuous Conduction Mode (FCCM)
4.2V to 16V Wide Input Voltage (V_IN) Operating Range
6A of Continuous Output Current (I_OUT)
Adaptive Constant-On-Time (COT) Control for Fast Transient Response
400mV Reference Voltage (V_REF)
±1% Reference Accuracy at 0°C to 85°C
800kHz Fixed Switching Frequency (f_SW)
Output Voltage (V_OUT) Adjustable from 0.4V
Low-Dropout (LDO) Mode
Output Discharge
Pre-Biased Start-Up
Hiccup Mode Over-Current Protection (OCP) and Short-Circuit Protection (SCP)
Over-Voltage Protection (OVP)
Under-Voltage Protection (UVP)
Thermal Shutdown Protection
Available in an SOT583-8 (1.6mmx2.1mm) Package
Optimized Performance with MPS Inductor MPL-AL6050 Series

Active Part Numbers:

MP1676CGTL-Z MP1676CGTL-P

Meaning of P & Z

Related Products

Optimized Performance with MPS Inductor

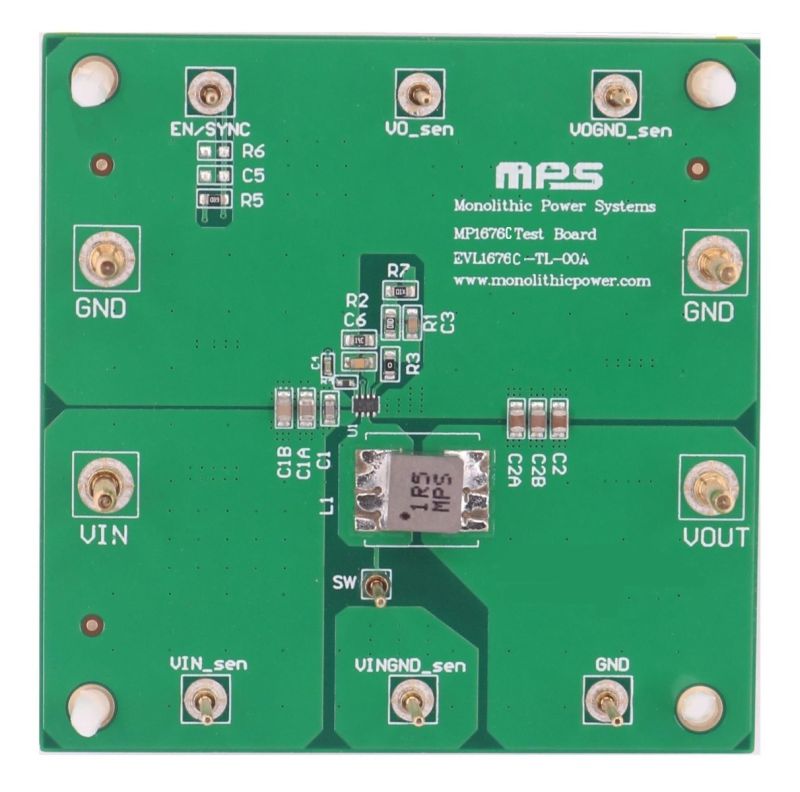

EVL1676C-TL-00A 16V, 6A, Synchronous, Step-Down Converter with FCCM Evaluation Board

MPL

Optimized Performance with MPS Inductor

The EVL1676C-TL-00A evaluation board is designed to demonstrate the capabilities of the MP1676C, a synchronous, rectified, step-down switch-mode converter with built-in internal power MOSFETs.

The MP1676C can achieve up to 6A of continuous output current (I_OUT) from a 4.2V to 16V input voltage (V_IN) range, with excellent load and line regulation. The output voltage (V_OUT) can be regulated to as low as 0.4V.

Constant-on-time (COT) control provides fast transient response, easy loop design, and tight output regulation. Full protection features include over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), and thermal shutdown.

The MP1676C requires a minimal number of readily available, standard external components, and is available in an ultra-small SOT583 (1.6mmx2.1mm) package.
