MPQ2143

MPQ2143

NOT RECOMMENDED FOR NEW DESIGNS

Industrial Grade, 3A, 5.5V, 1.2MHz, 40μA I_Q, COTSynchronous Step-Down Switcher AEC-Q100 Qualified

ALTERNATIVE PART

NRFND Datasheet

MPQ2143 continues to be in production for existing customers. Please consider this alternative for new designs:

MPQ2179GQHE-AEC1

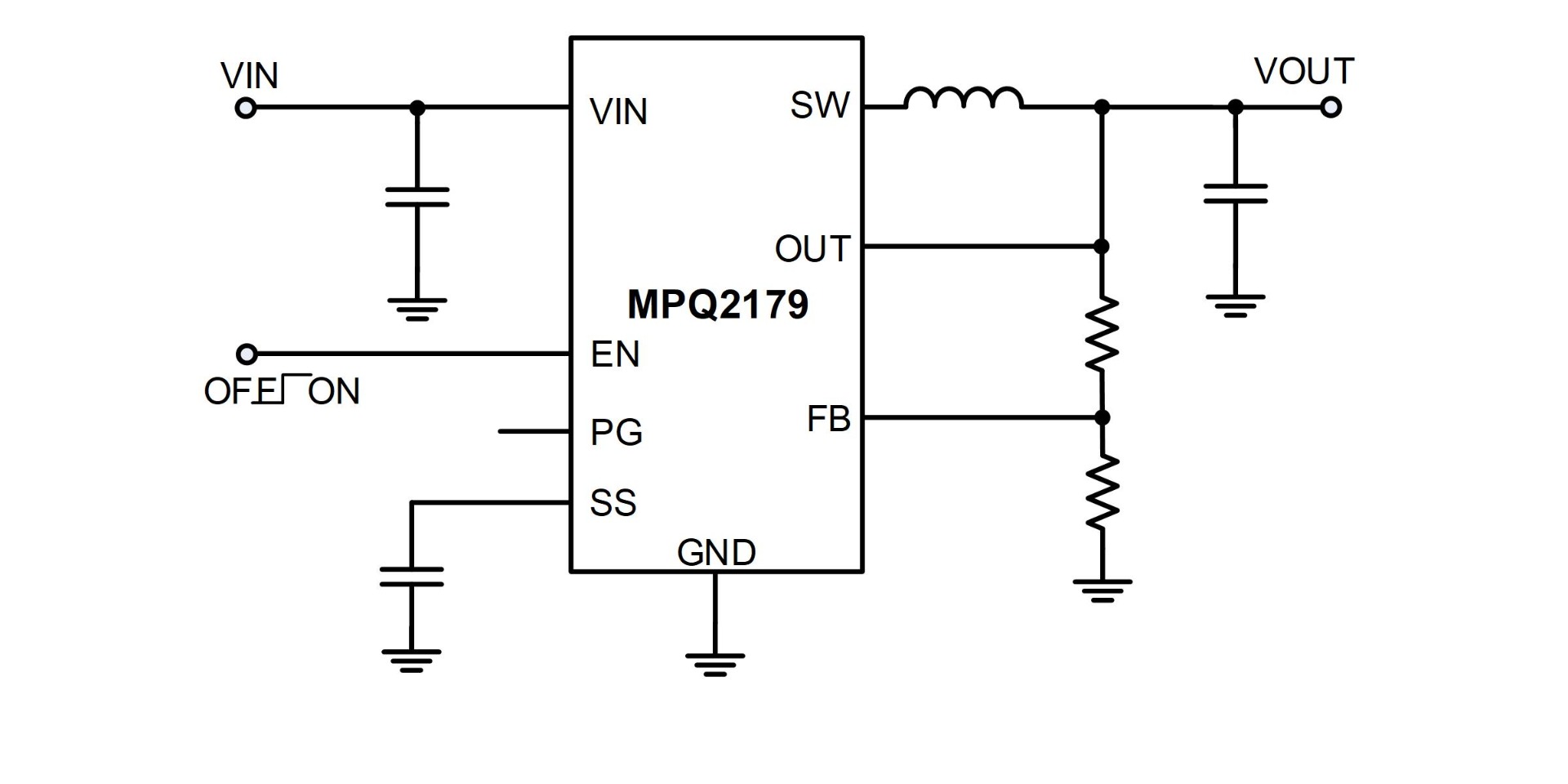

5.5V, Peak 3A, 2.4MHz, Synchronous Step-Down Converter with PG and SS, AEC-Q100 Qualified

Features & Benefits

Wide 2.5V to 5.5V Operating Input Voltage (V_IN) Range
Up to 3A Peak Output Current (I_OUT)
2.4MHz Switching Frequency (f_SW)
EN for Power Sequencing
1% FB Accuracy
Output Voltage (V_OUT) Adjustable from 0.6V
65mΩ and 35mΩ Internal Power MOSFET Switches
100% Duty Cycle On
Output Discharge
Power Good (PG)
External Soft Start (SS) Control
Output Over-Voltage Protection (OVP)
Short-Circuit Protection (SCP) with Hiccup Mode
Forced Continuous Conduction Mode (FCCM)
Available in a QFN-8 (1.5mmx2mm) Package
Available in a Wettable Flank Package
Available in AEC-Q100 Grade 1

… and many more!

Description

The MPQ2143 is a monolithic, step-down, switch-mode converter with internal power MOSFETs. It can achieve up to 3A continuous output current from a 2.5V–to-5.5V input voltage with excellent load and line regulation. The output voltage can be regulated as low as 0.6V.
Constant-on-time control provides fast transient response and eases loop stabilization. Fault-condition protections include cycle-by-cycle current limiting and thermal shutdown.
The MPQ2143 is available in small TSOT23-8 package and requires only a minimal number of readily-available standard external components.
The MPQ2143 is ideal for a wide range of applications including high-performance DSPs, FPGAs, smartphones, portable instruments, and DVD drivers.
