The EVM3808-LE-00A evaluation board is designed to demonstrate the capabilities of the MPM3808, an easy-to-use, fully integrated, synchronous step-down power module with a built-in inductor and power MOSFETs. It can achieve up to 3A of continuous output current (I_OUT), with excellent load and line regulation.

The constant-on-time (COT) control scheme provides fast transient response and eases loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown. An open-drain power good (PG) signal indicates when the output voltage (V_OUT) exceeds 90% of its nominal voltage.

The MPM3808 is ideal for a wide range of applications, including high-performance digital signal processors (DSPs), advanced driver-assistance system (ADAS) sensors, portable and mobile devices, and other low-power systems with size constraints.

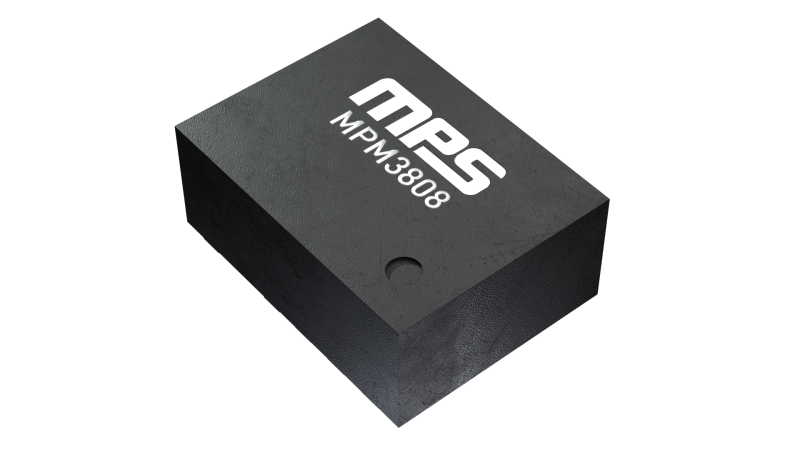

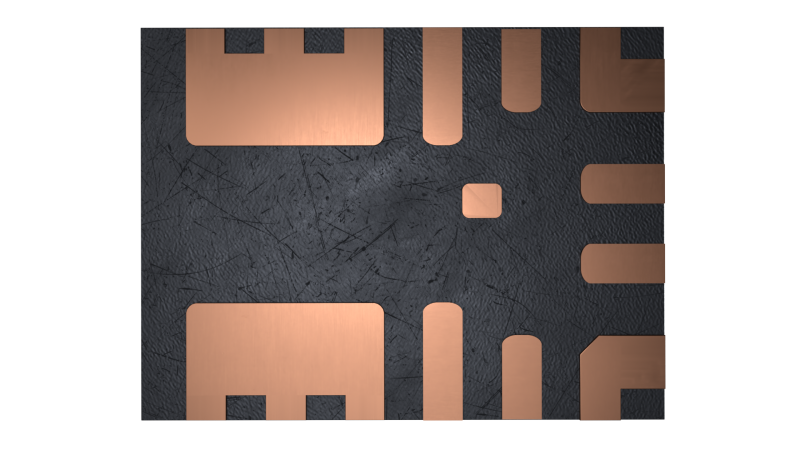

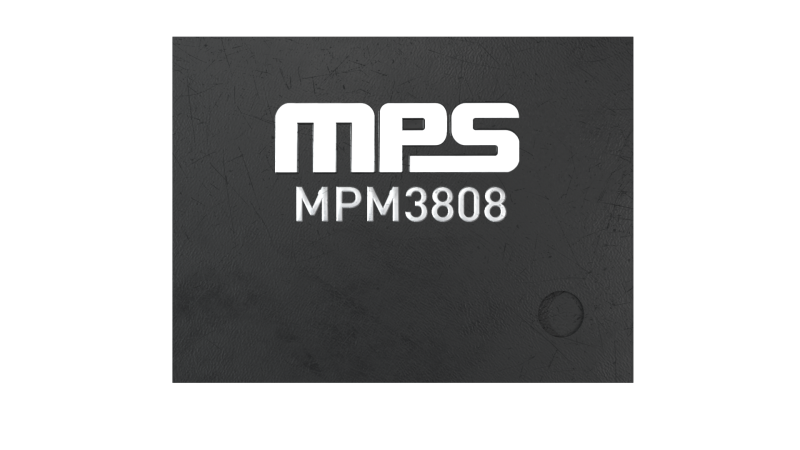

The EVM3808-LE-00A is fully assembled and tested. The MPM3808 is available in a small QFN-15 (3mmx4mmx1.6mm) package with wettable flanks, and requires a minimal number of readily available, standard external components.
