MCQ1805

MCQ1805

3kV_RMS Isolated Hall-Effect Current Sensor with 580V_RMS Working Voltage and Over-Current Detection, AEC-Q100 Qualified

Datasheet

Description

The MCQ1805 is an automotive-grade, linear Hall-effect current sensor for AC or DC current sensing. The Hall array is differential, which cancels out any stray magnetic field.

A primary conductor with a low resistance allows the current to flow close to the IC, which contains high-accuracy Hall-effect sensors. This current generates a magnetic field that is sensed at two different points by the integrated Hall-effect transducers. The magnetic field difference between these two points is then converted into a voltage that is proportional to the applied current. A spinning current technique is used for a low, stable offset.

The galvanic isolation between the pins of the primary conductive path and the sensor leads allows the MCQ1805 to replace optoisolators and other isolation devices.

The MCQ1805 provides fast over-current detection (OCD) to monitor the system for over-current (OC) faults.

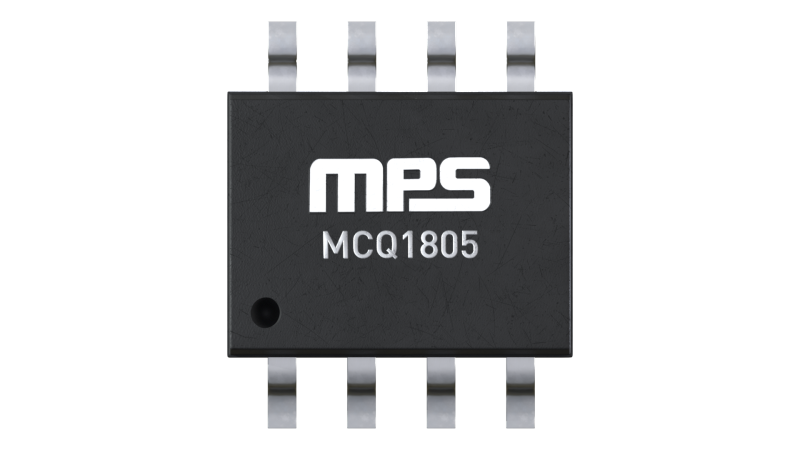

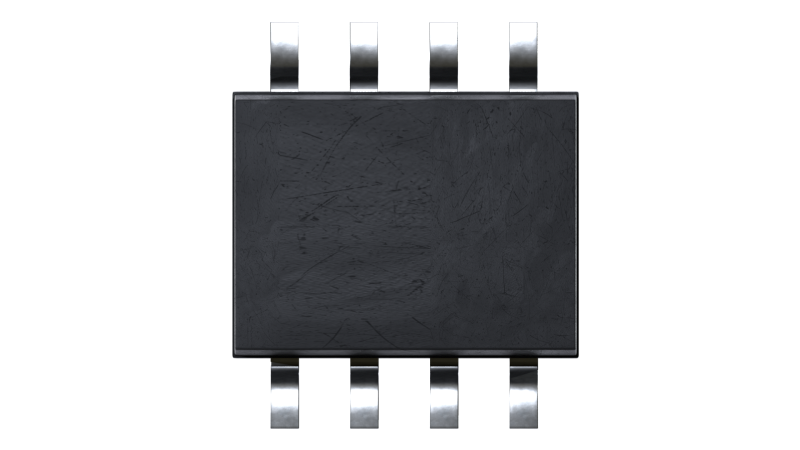

The MCQ1805 requires a minimal number of readily available, standard external components. The device’s small SOIC-8 footprint saves board area and makes it well-suited for space-constrained applications.

Features & Benefits

3.3V or 5V Single-Supply Options
Immune to External Gradient Magnetic Fields via Differential Sensing
Extreme Low-Noise Density
3kV_RMS Minimum Isolation Voltage
580V_RMS Maximum Working Voltage
±2.5% Total Accuracy
5A to 50A Bidirectional or Unidirectional Range
120kHz Bandwidth
Custom Over-Current Detection (OCD) from 50% to 240% of the Rated Current (I_PMAX)
Fast OCD with 1μs Response Time
Output Voltage (V_OUT) Proportional to AC or DC Currents
Ratiometric Output from Supply Voltage
Factory-Trimmed for Accuracy

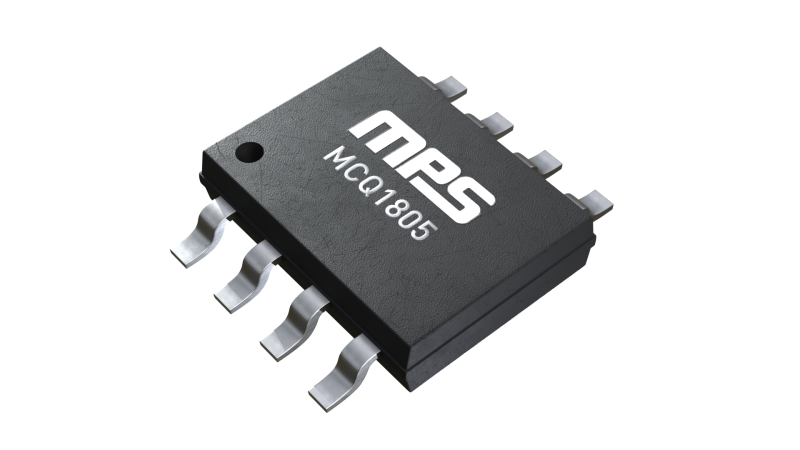

Available in an SOIC-8 Package
Available in AEC-Q100 Grade 1

Active Part Numbers:

MCQ1805GS-505-UAEC-Z MCQ1805GS-505-UAEC-P MCQ1805GS-310-BAEC-Z MCQ1805GS-310-BAEC-P MCQ1805GS-550-UAEC-Z MCQ1805GS-550-UAEC-P

Meaning of P & Z
