OrderMP3437
Active Part Numbers:
MP3437GRP-P MP3437GRP-Z MP3437GJ-P MP3437GJ-Z
Meaning of P & Z
Evaluation Tools
EV3437-RP-00A Evaluation Kit High Efficiency, Fully-Integrated Synchronous Boost Converter EV Board for QFN-10 Package
EV3437-RP-00A Evaluation Board is designed to demonstrate the capability of MP3437. It is a 600kHz fixed frequency, wide input range, highly integrated boost converter. It starts from an input voltage as low as 2.7V, and supports up to 20W load power from 1-cell battery.
MP3437 adopts constant-off-time (COT) control topology providing fast transient response. QFN package has MODE pin which can support mode selection of PSM, FCCM and USM in light load condition. And the integrated low-side and high-side MOSFET simplify the design and save BOM cost.
The MP3437 supports auto-pass-through mode when VIN is higher than VOUT-SET in PSM mode. It also features with programmable input under-voltage lockout (UVLO) and over temperature protection.

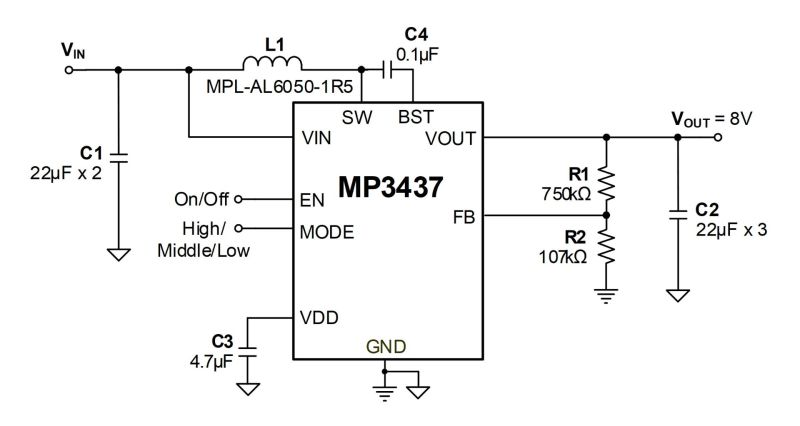

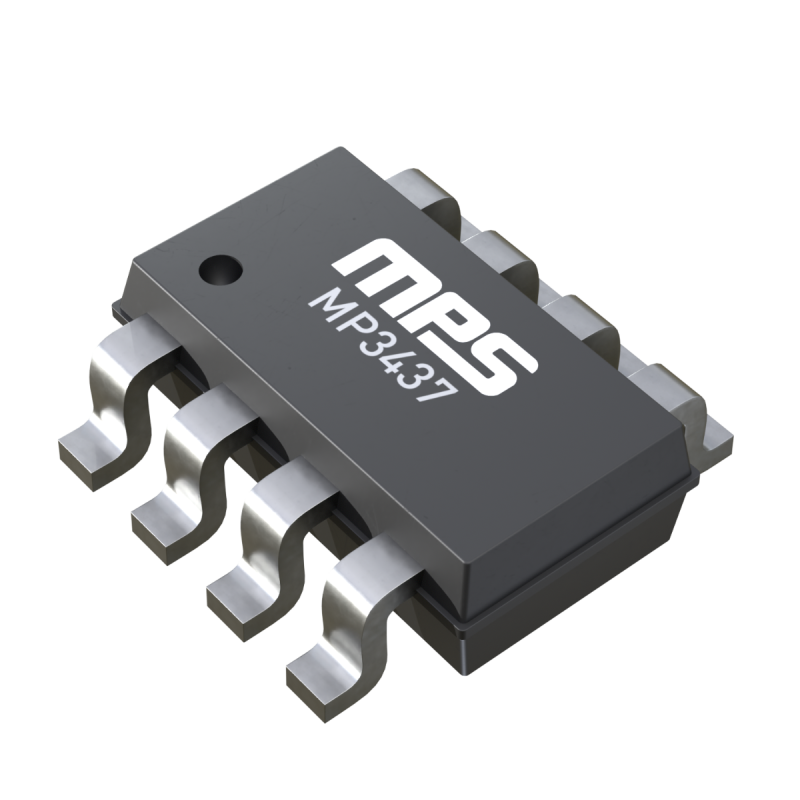

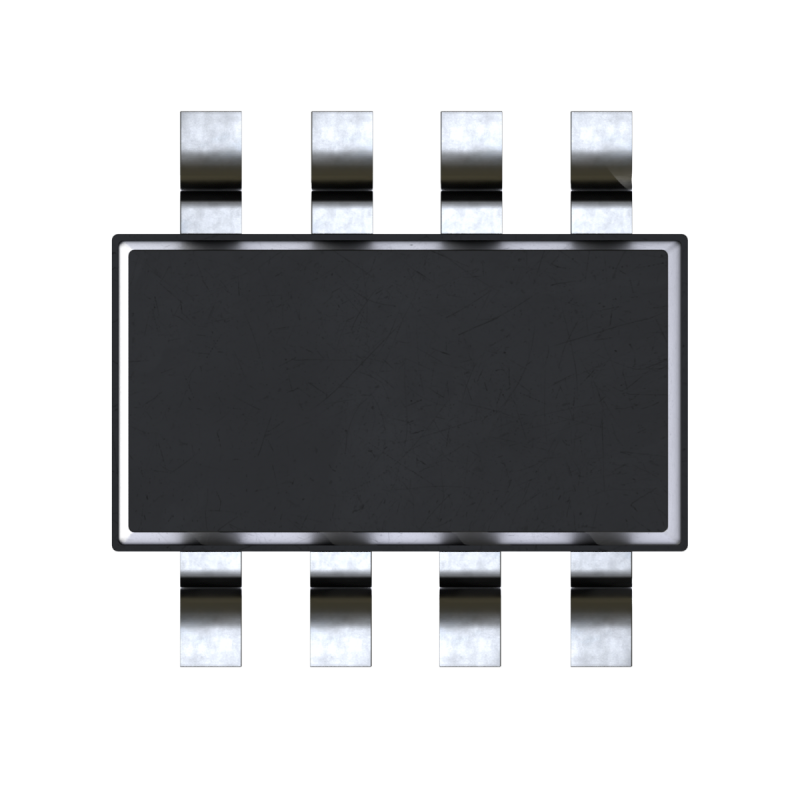

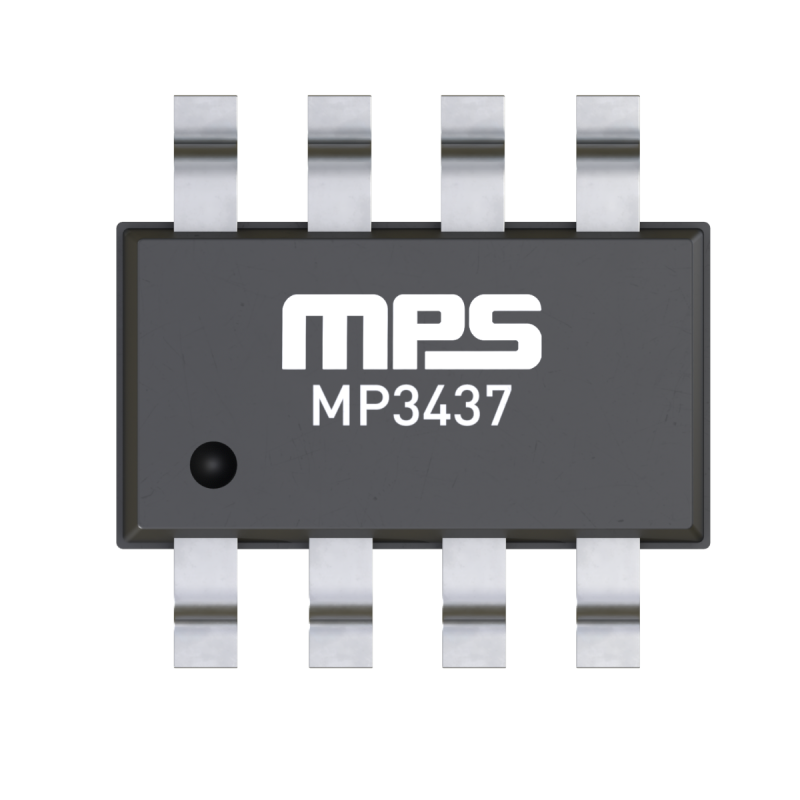

The MP3437 is available in QFN-10 (2mmx2.5mm) and TSOT23-8 package. This board is available in QFN-10 package.
High Efficiency, Fully-Integrated Synchronous Boost Converter EV Board in TSOT23-8 package
Recommended Inductors
MPL
MP3437 Resources
-
