mEZD41501A-B

mEZD41501A-B

2.7V - 10V Input, 12V Output, 1A, Step-Up Power Supply

Datasheet

Description

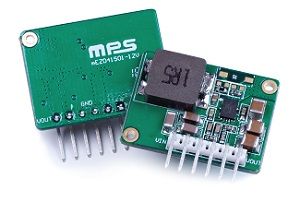

The mEZD41501A-B is an open-frame, 2.7-10V input step-up power module with 1A continuous output current and 12V output voltage. It provides up to 97.3% peak efficiency.

The mEZD41501A uses the MPS’ MP3429 Boost converter, further details about this device can be found here.

Features & Benefits

2.7V to 10V Operating Input
12V Output Voltage
1A Continuous Output Current
Open Design Files and BOM
600kHz Fixed Frequency
High Efficiency
Over-Temperature Protection

Active Part Numbers:

mEZD41501A-B

Design Resources

Symbol, Footprint & 3D Model

Buy direct from MPS

Standard Pricing

Quantity Price
1

$14.33 /unit

In stock

Arrives 3-4 business days.
Shipping only $5 per order.

Quantity

500 Max per Company.
Limited Inventory to support product development.
