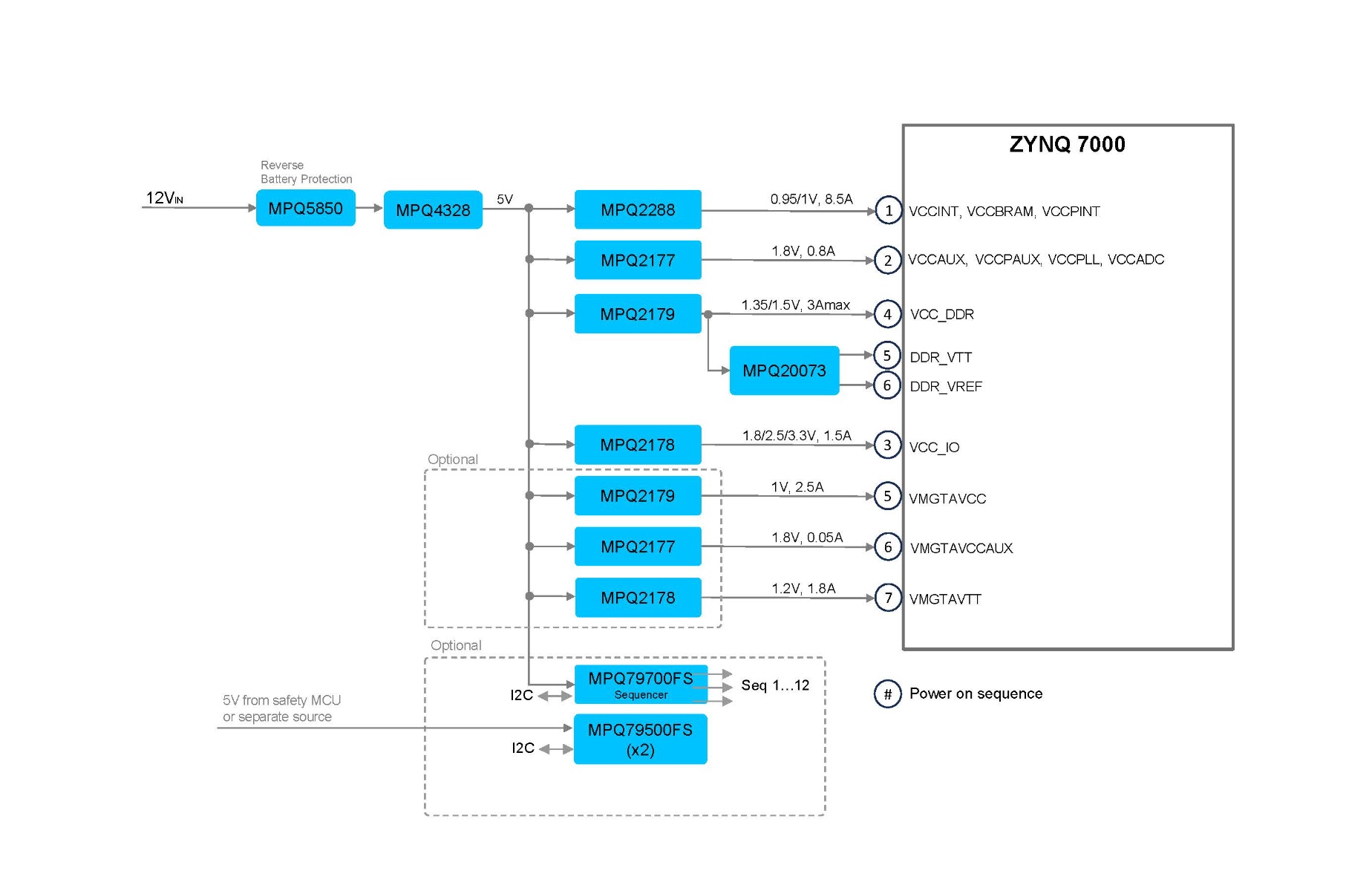

ZYNQ 7000 Automotive Solution Reference Design
For more information on reference designs
Response within 2 business days
MPS Products
| Part Number | Quantity | Description |
| MPQ5850-AEC1 | 1 | 36V, Smart Diode Controller with Reverse Protection, AEC-Q100 Qualified |
| MPQ4328 | 1 | 36V, 4A, Low Quiescent Current, Synchronous Step-Down Converter, AEC-Q100 Qualified |
| MPQ2288 | 1 | Request Information |
| MPQ2177 | 1 (Optional: 2) | 5.5V, 1A, 2.4MHz, Synchronous Step-Down Converter with Power Good and Soft Start, AEC-Q100 Qualified |
| MPQ2179 | 1 (Optional: 2) | 5.5V, Peak 3A, 2.4MHz, Synchronous Step-Down Converter with PG and SS, AEC-Q100 Qualified |
| MPQ20073 | 1 | 2A, 1.3V to 6V DDR Memory Termination Regulator AEC-Q100 Qualified |
| MPQ2178 | 1 (Optional: 2) | 5.5V, 2A, 2.4MHz, Synchronous Step-Down Converter with Power Good and Soft Start, AEC-Q100 Qualified |
| MPQ79700FS | (Optional: 1) | MPSafeTM 12-Channel ASIL-D Power Sequencer, AEC-Q100 Qualified |
| MPQ79500FS | (Optional: 1) | MPSafeTM 6-Channel ASIL-D Voltage Monitor, AEC-Q100 Qualified |
