MP2452

MP2452

1A, 36V, 1MHz, Step-Down Converter in QFN

Datasheet

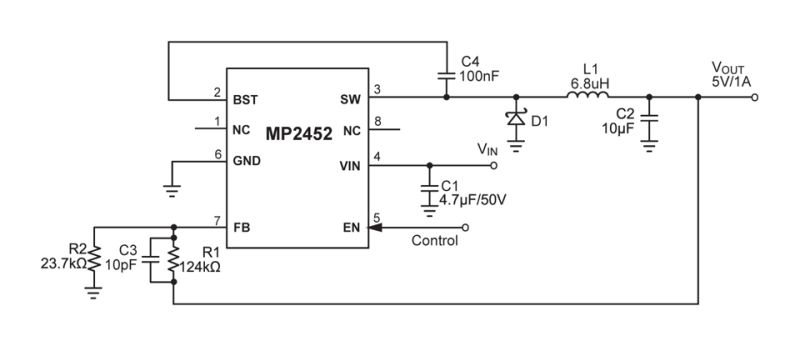

Description

The MP2452 is a high frequency (1MHz) step-down switching regulator with integrated internal high-side high voltage power MOSFET. It provides up to 1A highly efficient output current with current mode control for fast loop response. The wide 3.3V to 36V input range accommodates a variety of step-down applications in automotive input environment. A 1μA shutdown mode quiescent current allows use in battery-powered applications. High power conversion efficiency over a wide load range is achieved by scaling down the switching frequency at light load condition to reduce the switching and gate driving losses. Frequency fold-back helps prevent inductor current runaway during start-up. Thermal shutdown provides reliable, fault-tolerant operation. The MP2452 is available in the 2mmx3mm QFN8 package.

Features & Benefits

1A Continuous Load Current
230μA Operating Quiescent Current
Wide 3.3V to 36V Operating Input Range
500mΩ Internal Power MOSFET
1MHz Fixed Switching Frequency
Internally Compensated
Stable with Ceramic Output Capacitors
Internal Soft-Start
>90% Efficiency
+0.8V FB Reference Voltage
Output Adjustable from +0.8V to 0.8xVIN
Low Current Shutdown Mode: <1uA
2x3mm QFN8 Package

Active Part Numbers:

MP2452DD-LF-P MP2452DD-LF-Z

Meaning of P & Z

Recommended Inductors

Low-Profile Molded Inductor 6.8µH

Molded Inductor 6.8µH

Molded Inductor 6.8µH

Show more

Show more

Inductor Selector Tool

*Based on Nominal Values
