EVM3680-RE-00A

EVM3680-RE-00A

18V 6A Step-Down Power Module Evaluation Board

Datasheet

Description

The EVM3680-RE-00A is used for demonstrating the performance of MPS’ MPM3680, a 6A step-down power module with built-in power MOSFETs and power inductor.

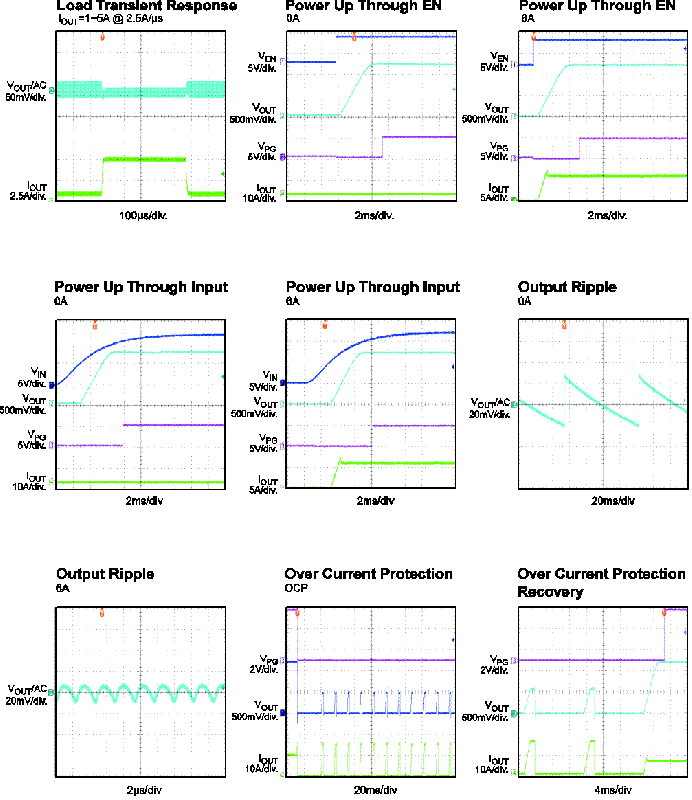

High power efficiency over a wide load range is achieved by scaling down the switching frequency at light load to reduce the switching related loss by constant on time control. Over-Current-Protection, Over-Voltage Protection, Under-Voltage Protection, and thermal shutdown provide reliable operation.

MPM3680 is available in QFN 12x12x4mm package.

Product Evaluated

18V 6A Step-Down Power Module in 12x12x4mm QFN

Features & Benefits

Complete 6ADC-to-DCSolution
WideInputVoltageRangefrom 2.5V:
-- 2.5V to 18V with External 5V Bias
-- 4.5V to 18V with Internal Bias
1% Reference Voltage Over 0˚C to 70˚CJunctionTemperatureRange
Adaptive COT Control for Ultrafast Transient Response
Programmable Switching Frequency from 200KHz to 1MHz
Support Pre-Bias Start Up
Programmable Soft-Start Time with Default 3ms
Non-latch OCP, OVP and Thermal Shutdown
Output Adjustable from 0.65V to 5V
12 x 12 x 4 (mm) QFN package

Active Part Numbers:

EVM3680-RE-00A
