Inductors

Inductors

Our surface-mounted power inductors are designed for applications ranging from power supplies to power converters. The molded, shielded, and semi-shielded series comprise inductance ranges from 0.33μH to 100μH and saturation current ranges from 0.8A to 64A.

Designed for optimal performance with MPS ICs and provides an easy, complete power solution.
Highly efficient molded and semi-shielded options, with operating temperatures up to 155°C.
Includes a wide range of specifications and sizes that cover use cases across our entire portfolio of ICs.
Molded inductors

Molded Inductors

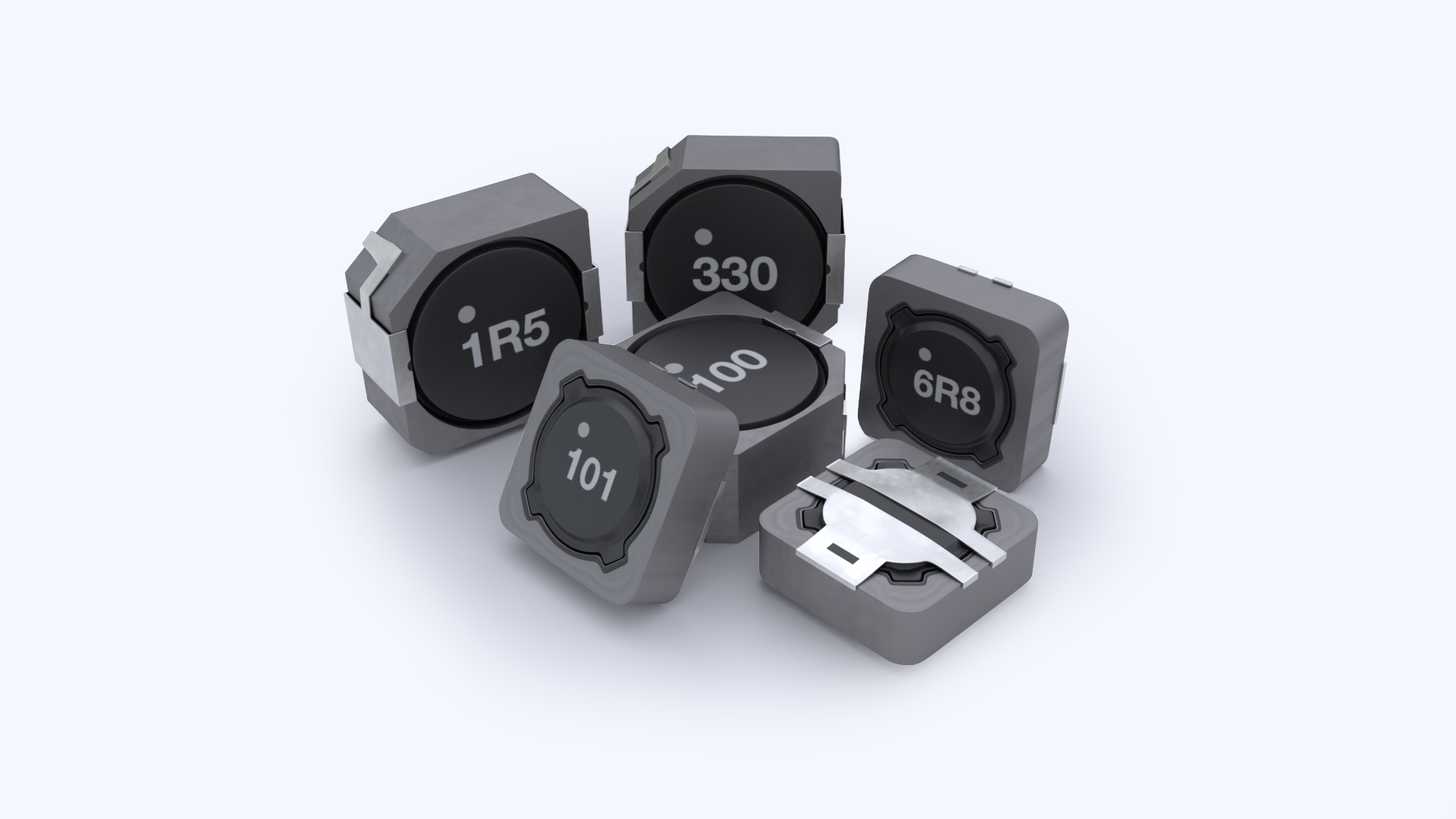

Shielded inductors

Shielded Inductors

Semi-shielded inductors

Semi-Shielded Inductors

AEC-Q100 Qualified
Automotive application ready

High Power Efficiency
Excellent thermal performance

Leading Power Density
Reduces space requirements

Molded Inductors (98) Show More Show Less
View all
Shielded Inductors (1) Show More Show Less
Semi-Shielded Inductors (41) Show More Show Less
View all
Inductor Sample Kits (6) Show More Show Less

Inductor Articles

Understanding Power Inductor Parameters

VIEW ALL

Inductor Selector Tool

Buck Sync Image Buck Non-Sync Image Boost Sync Image Boost Non-Sync Image
*Based on Nominal Values
Show Columns
Status
MPS Inventory
Series Description
L (µH)
RDC (typ) (mΩ)
IR (40K) (A)
Isat (30%) (A)
Size Code
A Dimension (L) (mm)
B Dimension (W) (mm)
C Dimension (H) (mm)
Operating Temp (max) (℃)
Mounting Type
MPSafe
MPL
Product URL
RESET TABLE
Series Description
L (µH)
RDC (typ) (mΩ)
IR (40K) (A)
Isat (30%) (A)
Size Code
A Dimension (L) (mm)
B Dimension (W) (mm)
C Dimension (H) (mm)
Operating Temp (max) (℃)
Mounting Type
MPS
Molded
Molded Low Profile
Molded Low Resistance
Semi-Shielded
Shielded
1050
1265
2010
2512
2514
3020
4020
4030
5030
5040
5050
6040
6050
6060
7345
+125°C
+155°C
SMD
Is MPSafe Has MPL Product URL

EVSK-001
ACTIVE

Power Inductor Sample Kit, MPL-AT Low-Profile Molded Inductor Series (Sizes 2010, 2512, 2514)

 Buy On MPS Molded Low Profile 2010, 2512, 2514 1 0 https://www.monolithicpower.com/en/products/inductor/evsk-001.html
EVSK-002
ACTIVE

Power Inductor Sample Kit, MPL-AY Molded Inductor Series (Sizes 3020, 4020)

 Buy On MPS Molded 3020, 4020 1 0 https://www.monolithicpower.com/en/products/inductor/evsk-002.html
EVSK-003
ACTIVE

Power Inductor Sample Kit, MPL-AY Molded Inductor Series (Sizes 1050, 1265)

 Buy On MPS Molded 1050, 1265 1 0 https://www.monolithicpower.com/en/products/inductor/evsk-003.html
EVSK-004
ACTIVE

Power Inductor Sample Kit, MPL-AL Low-Resistance Molded Inductor Series (Sizes 4020, 5030, 5050, 6050, 6060)

 Buy On MPS Molded Low Resistance 4020, 5030, 5050, 6050, 6060 1 0 https://www.monolithicpower.com/en/products/inductor/evsk-004.html
EVSK-005
ACTIVE

Power Inductor Sample Kit, MPL-SE Semi-Shielded Inductor Series (Sizes 4030, 5040, 6040)

 Buy On MPS Semi-Shielded 4030, 5040, 6040 1 0 https://www.monolithicpower.com/en/products/inductor/evsk-005.html
EVSK-006
ACTIVE

Power Inductor Sample Kit, MPL-SE Semi-Shielded Inductor Series (Size 2512)

 Buy On MPS Semi-Shielded 2512 1 0 https://www.monolithicpower.com/en/products/inductor/evsk-006.html
MPL-AL4020-1R0
ACTIVE
Low-Resistance Molded Inductor 1.0µH
 Buy On MPS Molded Low Resistance 1.0 10.1 7.9 8.6 4020 4.10 4.10 1.90 155°C SMD 1 0 https://www.monolithicpower.com/en/mpl-al4020-1r0.html
MPL-AT2010-R47
ACTIVE
Low-Profile Molded Inductor 0.47µH
 Buy On MPS Molded Low Profile 0.47 27 4.5 5.7 2010 2.0 1.60 1.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-at-molded-low-profile/mpl-at2010-r47.html
MPL-AT2010-R68
ACTIVE
Low-Profile Molded Inductor 0.68µH
 Buy On MPS Molded Low Profile 0.68 41 3.6 4.9 2010 2.0 1.60 1.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-at-molded-low-profile/mpl-at2010-r68.html
MPL-AT2010-1R0
ACTIVE
Low-Profile Molded Inductor 1.0µH
 Buy On MPS Molded Low Profile 1.0 50 3.3 4.2 2.0 1.60 1.0 125°C 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-at-molded-low-profile/mpl-at2010-1r0.html
MPL-AT2010-1R5
ACTIVE
Low-Profile Molded Inductor 1.5µH
 Buy On MPS Molded Low Profile 1.5 85 2.4 3.2 2010 2.0 1.60 1.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-at-molded-low-profile/mpl-at2010-1r5.html
MPL-AT2010-2R2
ACTIVE
Low-Profile Molded Inductor 2.2µH
 Buy On MPS Molded Low Profile 2.2 125 2 2.6 2010 2.0 1.60 1.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-at-molded-low-profile/mpl-at2010-2r2.html
MPL-AT2010-4R7
ACTIVE
Low-Profile Molded Inductor 4.7µH
 Buy On MPS Molded Low Profile 4.7 200 1.5 2 2010 2.0 1.60 1.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-at-molded-low-profile/mpl-at2010-4r7.html
MPL-SE2512-R47
ACTIVE
Semi-Shielded Inductor 0.47µH
 Buy On MPS Semi-Shielded 0.47 20 4.5 6.5 2512 2.5 2.0 1.2 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se2512-r47.html
MPL-AT2512-R33
ACTIVE
Low-Profile Molded Inductor 0.33µH
 Buy On MPS Molded Low Profile 0.33 13 6.4 7.8 2512 2.50 2.0 1.20 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-at-molded-low-profile/mpl-at2512-r33.html
MPL-AT2512-R47
ACTIVE
Low-Profile Molded Inductor 0.47µH
 Buy On MPS Molded Low Profile 0.47 14 5.8 6.4 2512 2.50 2.0 1.20 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-at-molded-low-profile/mpl-at2512-r47.html
MPL-AT2512-R68
ACTIVE
Low-Profile Molded Inductor 0.68µH
 Buy On MPS Molded Low Profile 0.68 23 4.8 6 2512 2.50 2.0 1.20 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-at-molded-low-profile/mpl-at2512-r68.html
MPL-AT2512-1R0
ACTIVE
Low-Profile Molded Inductor 1.0µH
 Buy On MPS Molded Low Profile 1.0 33 4.1 5.2 2512 2.50 2.0 1.20 125°C SMD 1 0 https://www.monolithicpower.com/en/mpl-at2512-1r0.html
MPL-AT2512-1R5
ACTIVE
Low-Profile Molded Inductor 1.5µH
 Buy On MPS Molded Low Profile 1.5 43 3.4 4.2 2512 2.50 2.0 1.20 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-at-molded-low-profile/mpl-at2512-1r5.html
MPL-AT2512-3R3
ACTIVE
Low-Profile Molded Inductor 3.3µH
 Buy On MPS Molded Low Profile 3.3 116 2.2 3 2010 2.50 2.0 1.20 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-at-molded-low-profile/mpl-at2512-3r3.html
MPL-AT2512-6R8
ACTIVE
Low-Profile Molded Inductor 6.8µH
 Buy On MPS Molded Low Profile 6.8 260 1.4 2.2 2512 2.50 2.0 1.20 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-at-molded-low-profile/mpl-at2512-6r8.html
MPL-AL4020-R47
ACTIVE
Low-Resistance Molded Inductor 0.47µH
 Buy On MPS Molded Low Resistance 0.47 6.2 9.2 12.5 4020 4.10 4.10 1.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al4020-r47.html
MPL-AL4020-R68
ACTIVE
Low-Resistance Molded Inductor 0.68µH
 Buy On MPS Molded Low Resistance 0.68 7.5 8.7 11 4020 4.10 4.10 1.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al4020-r68.html
MPL-AL4020-R82
ACTIVE
Low-Resistance Molded Inductor 0.82µH
 Buy On MPS Molded Low Resistance 0.82 9.0 8.4 9.5 4020 4.10 4.10 1.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al4020-r82.html
MPL-AL4020-1R2
ACTIVE
Low-Resistance Molded Inductor 1.2µH
 Buy On MPS Molded Low Resistance 1.2 12.2 7.4 7.5 4020 4.10 4.10 1.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al4020-1r2.html
MPL-AL4020-1R5
ACTIVE
Low-Resistance Molded Inductor 1.5µH
 Buy On MPS Molded Low Resistance 1.5 14.5 6.4 7.1 4020 4.10 4.10 1.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al4020-1r5.html
MPL-AL4020-2R2
ACTIVE
Low-Resistance Molded Inductor 2.2µH
 Buy On MPS Molded Low Resistance 2.2 21.5 5.5 6.2 4020 4.10 4.10 1.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al4020-2r2.html
MPL-AL4020-3R3
ACTIVE
Low-Resistance Molded Inductor 3.3µH
 Buy On MPS Molded Low Resistance 3.3 34.5 4.4 5.2 4020 4.10 4.10 1.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al4020-3r3.html
MPL-AL4020-4R7
ACTIVE
Low-Resistance Molded Inductor 4.7µH
 Buy On MPS Molded Low Resistance 4.7 52.2 3.65 4.2 4020 4.10 4.10 1.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al4020-4r7.html
MPL-AL5030-3R3
ACTIVE
Low-Profile Molded Inductor 3.3µH
 Buy On MPS Molded Low Resistance 3.3 21 6.0 10 5030 5.50 5.30 2.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al5030-3r3.html
MPL-AL5030-4R7
ACTIVE
Low-Profile Molded Inductor 4.7µH
 Buy On MPS Molded Low Resistance 4.7 33 5.3 8 5030 5.50 5.30 2.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al5030-4r7.html
MPL-AL5030-1R0
ACTIVE
Low-Profile Molded Inductor 1.0µH
 Buy On MPS Molded Low Resistance 1.0 6.5 11.2 16 5030 5.50 5.30 2.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al5030-1r0.html
MPL-AL5030-1R2
ACTIVE
Low-Profile Molded Inductor 1.2µH
 Buy On MPS Molded Low Resistance 1.2 8.0 10.0 14 5030 5.50 5.30 2.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al5030-1r2.html
MPL-AL5030-1R5
ACTIVE
Low-Profile Molded Inductor 1.5µH
 Buy On MPS Molded Low Resistance 1.5 9.7 9.0 12.5 5030 5.50 5.30 2.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al5030-1r5.html
MPL-AL5030-1R8
ACTIVE
Low-Profile Molded Inductor 1.8µH
 Buy On MPS Molded Low Resistance 1.8 10.5 8.8 12 5030 5.50 5.30 2.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al5030-1r8.html
MPL-AL5030-2R2
ACTIVE
Low-Profile Molded Inductor 2.2µH
 Buy On MPS Molded Low Resistance 2.2 12.3 8.2 11 5030 5.50 5.30 2.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al5030-2r2.html
MPL-AL5030-R47
ACTIVE
Low-Profile Molded Inductor 0.47µH
 Buy On MPS Molded Low Resistance 0.47 3.78 13.6 26.5 5030 5.50 5.30 2.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al5030-r47.html
MPL-AL5030-R56
ACTIVE
Low-Profile Molded Inductor 0.56µH
 Buy On MPS Molded Low Resistance 0.56 3.92 13.2 22 5030 5.50 5.30 2.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al5030-r56.html
MPL-AL5030-R82
ACTIVE
Low-Profile Molded Inductor 0.82µH
 Buy On MPS Molded Low Resistance 0.82 5.0 12.8 18 5030 5.50 5.30 2.90 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al5030-r82.html
MPL-AL5050-5R6
ACTIVE
Low-Profile Molded Inductor 5.6µH
 Buy On MPS Molded Low Resistance 5.6 20 6.8 8 5050 5.50 5.30 4.80 155°C 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al5050-5r6.html
MPL-AL5050-6R8
ACTIVE
Low-Profile Molded Inductor 6.8µH
 Buy On MPS Molded Low Resistance 6.8 25 6.1 7.6 5050 5.50 5.30 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al5050-6r8.html
MPL-AL5050-8R2
ACTIVE
Low-Profile Molded Inductor 8.2µH
 Buy On MPS Molded Low Resistance 8.2 28 5.8 7.2 5050 5.50 5.30 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al5050-8r2.html
MPL-AL5050-100
ACTIVE
Low-Profile Molded Inductor 10µH
 Buy On MPS Molded Low Resistance 10 37 4.8 5.5 5050 5.50 5.30 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al5050-100.html
MPL-AL6050-R82
ACTIVE
Low-Profile Molded Inductor 0.82µH
 Buy On MPS Molded Low Resistance 0.82 3.9 16.9 24 6050 6.60 6.40 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al6050-r82.html
MPL-AL6050-1R0
ACTIVE
Low-Profile Molded Inductor 1.0µH
 Buy On MPS Molded Low Resistance 1.0 4.3 16.2 21 6050 6.60 6.40 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al6050-1r0.html
MPL-AL6050-1R2
ACTIVE
Low-Profile Molded Inductor 1.2µH
 Buy On MPS Molded Low Resistance 1.2 5.3 14.6 20 6050 6.60 6.40 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al6050-1r2.html
MPL-AL6050-1R5
ACTIVE
Low-Profile Molded Inductor 1.5µH
 Buy On MPS Molded Low Resistance 1.5 6.0 13.3 18 6050 6.60 6.40 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al6050-1r5.html
MPL-AL6050-2R2
ACTIVE
Low-Profile Molded Inductor 2.2µH
 Buy On MPS Molded Low Resistance 2.2 8.3 12.0 15 6050 6.60 6.40 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al6050-2r2.html
MPL-AL6050-3R3
ACTIVE
Low-Profile Molded Inductor 3.3µH
 Buy On MPS Molded Low Resistance 3.3 11.7 10.1 12 6050 6.60 6.40 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al6050-3r3.html
MPL-AL6050-4R7
ACTIVE
Low-Profile Molded Inductor 4.7µH
 Buy On MPS Molded Low Resistance 4.7 16.5 7.5 11 6050 6.60 6.40 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al6050-4r7.html
MPL-AL6050-5R6
ACTIVE
Low-Profile Molded Inductor 5.6µH
 Buy On MPS Molded Low Resistance 5.6 19 7 10 6050 6.60 6.40 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al6050-5r6.html
MPL-AL6060-4R7
ACTIVE
Low-Profile Molded Inductor 4.7µH
 Buy On MPS Molded Low Resistance 4.7 12 10.0 9 6060 6.60 6.40 5.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al6060-4r7.html
MPL-AL6060-5R6
ACTIVE
Low-Profile Molded Inductor 5.6µH
 Buy On MPS Molded Low Resistance 5.6 13 9.4 8.6 6060 6.60 6.40 5.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al6060-5r6.html
MPL-AL6060-6R8
ACTIVE
Low-Profile Molded Inductor 6.8µH
 Buy On MPS Molded Low Resistance 6.8 16 8.5 8 6060 6.60 6.40 5.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al6060-6r8.html
MPL-AL6060-8R2
ACTIVE
Low-Profile Molded Inductor 8.2µH
 Buy On MPS Molded Low Resistance 8.2 19 8.0 7 6060 6.60 6.40 5.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al6060-8r2.html
MPL-AL6060-100
ACTIVE
Low-Profile Molded Inductor 10µH
 Buy On MPS Molded Low Resistance 10 24 6.9 6.6 6060 6.60 6.40 5.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al6060-100.html
MPL-AL6060-150
ACTIVE
Low-Profile Molded Inductor 15µH
 Buy On MPS Molded Low Resistance 15 35 5.8 5.5 6060 6.60 6.40 5.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-al-molded-low-resistance/mpl-al6060-150.html
MPL-AY3020-R47
ACTIVE
Molded Inductor 0.47µH
 Buy On MPS Molded 0.47 19.5 6.3 9 3020 3.5 3.2 1.8 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay3020-r47.html
MPL-AY3020-R68
ACTIVE
Molded Inductor 0.68µH
 Buy On MPS Molded 0.68 26 5.15 8.6 3020 3.5 3.2 1.8 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay3020-r68.html
MPL-AY3020-R82
ACTIVE
Molded Inductor 0.82µH
 Buy On MPS Molded 0.82 28 4.7 8 3020 3.5 3.2 1.8 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay3020-r82.html
MPL-AY3020-1R0
ACTIVE
Molded Inductor 1.0µH
 Buy On MPS Molded 1.0 30 4.3 6.2 3020 3.5 3.2 1.8 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay3020-1r0.html
MPL-AY3020-1R5
ACTIVE
Molded Inductor 1.5µH
 Buy On MPS Molded 1.5 35 3.4 5.9 3020 3.5 3.2 1.8 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay3020-1r5.html
MPL-AY3020-2R2
ACTIVE
Molded Inductor 2.2µH
 Buy On MPS Molded 2.2 64 3.0 5.3 3020 3.5 3.2 1.8 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay3020-2r2.html
MPL-AY3020-3R3
ACTIVE
Molded Inductor 3.3µH
 Buy On MPS Molded 3.3 121 2.5 3.7 3020 3.5 3.2 1.8 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay3020-3r3.html
MPL-AY3020-4R7
ACTIVE
Molded Inductor 4.7µH
 Buy On MPS Molded 4.7 173 2.0 3.1 3020 3.5 3.2 1.8 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay3020-4r7.html
MPL-AY3020-5R6
ACTIVE
Molded Inductor 5.6µH
 Buy On MPS Molded 5.6 209 1.8 2.8 3020 3.5 3.2 1.8 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay3020-5r6.html
MPL-AY3020-6R8
ACTIVE
Molded Inductor 6.8µH
 Buy On MPS Molded 6.8 250 1.65 2.6 3020 3.5 3.2 1.8 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay3020-6r8.html
MPL-AY3020-8R2
ACTIVE
Molded Inductor 8.2µH
 Buy On MPS Molded 8.2 345 1.4 1.95 3020 3.5 3.2 1.8 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay3020-8r2.html
MPL-AY3020-100
ACTIVE
Molded Inductor 10µH
 Buy On MPS Molded 10 370 1.3 1.75 3020 3.5 3.2 1.8 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay3020-100.html
MPL-AY4020-5R6
ACTIVE
Molded Inductor 5.6µH
 Buy On MPS Molded 5.6 97 2.45 2.6 4020 4.45 4.1 1.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay4020-5r6.html
MPL-AY4020-6R8
ACTIVE
Molded Inductor 6.8µH
 Buy On MPS Molded 6.8 129 2.20 2.4 4020 4.45 4.1 1.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay4020-6r8.html
MPL-AY4020-8R2
ACTIVE
Molded Inductor 8.2µH
 Buy On MPS Molded 8.2 136 2.10 2.1 4020 4.45 4.1 1.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay4020-8r2.html
MPL-AY4020-100
ACTIVE
Molded Inductor 10µH
 Buy On MPS Molded 10 163 1.90 2 4020 4.45 4.1 1.80 155°C SMD 1 0 https://www.monolithicpower.com/en/mpl-ay4020-100.html
MPL-AY1050-R47
ACTIVE
Molded Inductor 0.47µH
 Buy On MPS Molded 0.47 1.25 25 41 1050 11.0 10.0 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1050-r47.html
MPL-AY1050-R68
ACTIVE

Molded Inductor 0.68µH

 Buy On MPS Molded 0.68 1.75 23 36 1050 11.0 10.0 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1050-r68.html
MPL-AY1050-1R0
ACTIVE
Molded Inductor 1.0µH
 Buy On MPS Molded 1.0 2.6 19 33 1050 11.0 10.0 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1050-1r0.html
MPL-AY1050-1R5
ACTIVE
Molded Inductor 1.5µH
 Buy On MPS Molded 1.5 3.4 17 26.5 1050 11.0 10.0 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1050-1r5.html
MPL-AY1050-2R2
ACTIVE
Molded Inductor 2.2µH
 Buy On MPS Molded 2.2 4.9 15 19.5 1050 11.0 10.0 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1050-2r2.html
MPL-AY1050-3R3
ACTIVE
Molded Inductor 3.3µH
 Buy On MPS Molded 3.3 8 12.5 17 1050 11.0 10.0 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1050-3r3.html
MPL-AY1050-4R7
ACTIVE
Molded Inductor 4.7µH
 Buy On MPS Molded 4.7 9.5 11.5 15 1050 11.0 10.0 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1050-4r7.html
MPL-AY1050-5R6
ACTIVE
Molded Inductor 5.6µH
 Buy On MPS Molded 5.6 13 9.8 14 1050 11.0 10.0 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1050-5r6.html
MPL-AY1050-6R8
ACTIVE
Molded Inductor 6.8µH
 Buy On MPS Molded 6.8 15 9 13 1050 11.0 10.0 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1050-6r8.html
MPL-AY1050-100
ACTIVE
Molded Inductor 10µH
 Buy On MPS Molded 10 19 7.8 12 1050 11.0 10.0 4.80 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1050-100.html
MPL-AY1265-R47
ACTIVE
Molded Inductor 0.47µH
 Buy On MPS Molded 0.47 0.89 33 64 1265 13.50 12.60 6.20 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1265-r47.html
MPL-AY1265-R56
ACTIVE

Molded Inductor 0.56µH

 Buy On MPS Molded 0.56 1.1 31 58 1265 13.50 12.60 6.20 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1265-r56.html
MPL-AY1265-R68
ACTIVE

Molded Inductor 0.68µH

 Buy On MPS Molded 0.68 1.25 29 51 1265 13.50 12.60 6.20 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1265-r68.html
MPL-AY1265-R82
ACTIVE
Molded Inductor 0.82µH
 Buy On MPS Molded 0.82 1.3 27 46 1265 13.50 12.60 6.20 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1265-r82.html
MPL-AY1265-1R0
ACTIVE
Molded Inductor 1.0µH
 Buy On MPS Molded 1.0 1.5 25.5 43 1265 13.50 12.60 6.20 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1265-1r0.html
MPL-AY1265-1R2
ACTIVE
Molded Inductor 1.2µH
 Buy On MPS Molded 1.2 1.8 24 37 1265 13.50 12.60 6.20 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1265-1r2.html
MPL-AY1265-1R5
ACTIVE
Molded Inductor 1.5µH
 Buy On MPS Molded 1.5 2.3 22 34 1265 13.50 12.60 6.20 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1265-1r5.html
MPL-AY1265-1R8
ACTIVE
Molded Inductor 1.8µH
 Buy On MPS Molded 1.8 3.3 20 29 1265 13.50 12.60 6.20 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1265-1r8.html
MPL-AY1265-2R2
ACTIVE
Molded Inductor 2.2µH
 Buy On MPS Molded 2.2 3.7 17 26.5 1265 13.50 12.60 6.20 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1265-2r2.html
MPL-AY1265-3R3
ACTIVE
Molded Inductor 3.3µH
 Buy On MPS Molded 3.3 5.5 16 25 1265 13.50 12.60 6.20 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1265-3r3.html
MPL-AY1265-4R7
ACTIVE
Molded Inductor 4.7µH
 Buy On MPS Molded 4.7 7.0 14 23 1265 13.50 12.60 6.20 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1265-4r7.html
MPL-AY1265-5R6
ACTIVE
Molded Inductor 5.6µH
 Buy On MPS Molded 5.6 8.6 13 20 1265 13.50 12.60 6.20 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1265-5r6.html
MPL-AY1265-6R8
ACTIVE
Molded Inductor 6.8µH
 Buy On MPS Molded 6.8 9.9 12 19.5 1265 13.50 12.60 6.20 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1265-6r8.html
MPL-AY1265-8R2
ACTIVE
Molded Inductor 8.2µH
 Buy On MPS Molded 8.2 12.5 11.5 18 1265 13.50 12.60 6.20 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1265-8r2.html
MPL-AY1265-100
ACTIVE
Molded Inductor 10µH
 Buy On MPS Molded 10 13.3 10.7 16 1265 13.50 12.60 6.20 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1265-100.html
MPL-AY1265-150
ACTIVE
Molded Inductor 15µH
 Buy On MPS Molded 15 21.8 8.5 12 1265 13.50 12.60 6.20 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1265-150.html
MPL-AY1265-220
ACTIVE
Molded Inductor 22µH
 Buy On MPS Molded 22 31.4 7 9 1265 13.50 12.60 6.20 155°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-ay-molded/mpl-ay1265-220.html
MPL-SE2512-R68
ACTIVE
Semi-Shielded Inductor 0.68µH
 Buy On MPS Semi-Shielded 0.68 28 3.9 5 2512 2.5 2.0 1.2 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se2512-r68.html
MPL-SE2512-3R3
ACTIVE

Semi-Shielded Inductor 3.3µH

 Buy On MPS Semi-Shielded 3.3 90 2.1 2.4 2512 2.5 2.0 1.2 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se2512-3r3.html
MPL-SE2512-1R5
ACTIVE
Semi-Shielded Inductor 1.5µH
 Buy On MPS Semi-Shielded 1.5 50 2.9 3.2 2512 2.5 2.0 1.2 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se2512-1r5.html
MPL-SE2512-1R0
ACTIVE
Semi-Shielded Inductor 1.0µH
 Buy On MPS Semi-Shielded 1.0 35 3.4 4.2 2512 2.5 2.0 1.2 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se2512-1r0.html
MPL-SE2512-2R2
ACTIVE
Semi-Shielded Inductor 2.2µH
 Buy On MPS Semi-Shielded 2.2 72 2.5 2.7 2512 2.5 2.0 1.2 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se2512-2r2.html
MPL-SE2512-4R7
ACTIVE
Semi-Shielded Inductor 4.7µH
 Buy On MPS Semi-Shielded 4.7 165 1.6 1.9 2512 2.5 2.0 1.2 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se2512-4r7.html
MPL-SE2512-100
ACTIVE
Semi-Shielded Inductor 10µH
 Buy On MPS Semi-Shielded 10 410 1.1 1.3 2512 2.5 2.0 1.2 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se2512-100.html
MPL-SE2512-150
ACTIVE
Semi-Shielded Inductor 15µH
 Buy On MPS Semi-Shielded 15 620 0.85 0.9 2512 2.5 2.0 1.2 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se2512-150.html
MPL-SE2512-220
ACTIVE
Semi-Shielded Inductor 22µH
 Buy On MPS Semi-Shielded 22 885 0.7 0.8 2512 2.5 2.0 1.2 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se2512-220.html
MPL-SE4030-1R0
ACTIVE
Semi-Shielded Inductor 1.0µH
 Buy On MPS Semi-Shielded 1.0 14 5.5 7.0 4030 4.0 4.0 3.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se4030-1r0.html
MPL-SE4030-2R2
ACTIVE
Semi-Shielded Inductor 2.2µH
 Buy On MPS Semi-Shielded 2.2 30 3.7 5.5 4030 4.0 4.0 3.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se4030-2r2.html
MPL-SE4030-3R3
ACTIVE
Semi-Shielded Inductor 3.3µH
 Buy On MPS Semi-Shielded 3.3 40 3.3 4.1 4030 4.0 4.0 3.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se4030-3r3.html
MPL-SE4030-4R7
ACTIVE
Semi-Shielded Inductor 4.7µH
 Buy On MPS Semi-Shielded 4.7 62 2.6 3.4 4030 4.0 4.0 3.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se4030-4r7.html
MPL-SE4030-6R8
ACTIVE
Semi-Shielded Inductor 6.8µH
 Buy On MPS Semi-Shielded 6.8 90 2.2 2.9 4030 4.0 4.0 3.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se4030-6r8.html
MPL-SE4030-100
ACTIVE
Semi-Shielded Inductor 10µH
 Buy On MPS Semi-Shielded 10 100 2 2.2 4030 4.0 4.0 3.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se4030-100.html
MPL-SE4030-150
ACTIVE
Semi-Shielded Inductor 15µH
 Buy On MPS Semi-Shielded 15 185 1.4 1.8 4030 4.0 4.0 3.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se4030-150.html
MPL-SE4030-220
ACTIVE
Semi-Shielded Inductor 22µH
 Buy On MPS Semi-Shielded 22 220 1.3 1.5 4030 4.0 4.0 3.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se4030-220.html
MPL-SE5040-R47
ACTIVE
Semi-Shielded Inductor 0.47µH
 Buy On MPS Semi-Shielded 0.47 7.3 8.0 16 5040 4.90 4.90 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se5040-r47.html
MPL-SE5040-1R0
ACTIVE
Semi-Shielded Inductor 1.0µH
 Buy On MPS Semi-Shielded 1.0 9.4 7.6 10.5 5040 4.90 4.90 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se5040-1r0.html
MPL-SE5040-1R5
ACTIVE
Semi-Shielded Inductor 1.5µH
 Buy On MPS Semi-Shielded 1.5 14 6.2 9.3 5040 4.90 4.90 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se5040-1r5.html
MPL-SE5040-2R2
ACTIVE
Semi-Shielded Inductor 2.2µH
 Buy On MPS Semi-Shielded 2.2 16 5.4 7.9 5040 4.90 4.90 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se5040-2r2.html
MPL-SE5040-3R3
ACTIVE
Semi-Shielded Inductor 3.3µH
 Buy On MPS Semi-Shielded 3.3 22 5.2 6.4 5040 4.90 4.90 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se5040-3r3.html
MPL-SE5040-4R7
ACTIVE
Semi-Shielded Inductor 4.7µH
 Buy On MPS Semi-Shielded 4.7 33 4.3 5 5040 4.90 4.90 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se5040-4r7.html
MPL-SE5040-6R8
ACTIVE
Semi-Shielded Inductor 6.8µH
 Buy On MPS Semi-Shielded 6.8 45 3.5 4.6 5040 4.90 4.90 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se5040-6r8.html
MPL-SE5040-100
ACTIVE
Semi-Shielded Inductor 10µH
 Buy On MPS Semi-Shielded 10 56 3.2 3.6 5040 4.90 4.90 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se5040-100.html
MPL-SE5040-150
ACTIVE
Semi-Shielded Inductor 15µH
 Buy On MPS Semi-Shielded 15 83 2.5 2.9 5040 4.90 4.90 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se5040-150.html
MPL-SE5040-220
ACTIVE
Semi-Shielded Inductor 22µH
 Buy On MPS Semi-Shielded 22 124 2.1 2.4 5040 4.90 4.90 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se5040-220.html
MPL-SE6040-1R5
ACTIVE
Semi-Shielded Inductor 1.5µH
 Buy On MPS Semi-Shielded 1.5 11.5 6.8 8.9 6040 6.0 6.0 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se6040-1r5.html
MPL-SE6040-2R2
ACTIVE
Semi-Shielded Inductor 2.2µH
 Buy On MPS Semi-Shielded 2.2 14.5 6.3 7.2 6040 6.0 6.0 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se6040-2r2.html
MPL-SE6040-3R3
ACTIVE
Semi-Shielded Inductor 3.3µH
 Buy On MPS Semi-Shielded 3.3 19.5 5.6 5.6 6040 6.0 6.0 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se6040-3r3.html
MPL-SE6040-4R7
ACTIVE
Semi-Shielded Inductor 4.7µH
 Buy On MPS Semi-Shielded 4.7 23 5.2 5 6040 6.0 6.0 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se6040-4r7.html
MPL-SE6040-6R8
ACTIVE
Semi-Shielded Inductor 6.8µH
 Buy On MPS Semi-Shielded 6.8 33 4.4 4.1 6040 6.0 6.0 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se6040-6r8.html
MPL-SE6040-8R2
ACTIVE
Semi-Shielded Inductor 8.2µH
 Buy On MPS Semi-Shielded 8.2 39 4.0 3.6 6040 6.0 6.0 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se6040-8r2.html
MPL-SE6040-100
ACTIVE
Semi-Shielded Inductor 10µH
 Buy On MPS Semi-Shielded 10 41 3.8 3.4 6040 6.0 6.0 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se6040-100.html
MPL-SE6040-150
ACTIVE
Semi-Shielded Inductor 15µH
 Buy On MPS Semi-Shielded 15 70 2.8 2.7 6040 6.0 6.0 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se6040-150.html
MPL-SE6040-220
ACTIVE
Semi-Shielded Inductor 22µH
 Buy On MPS Semi-Shielded 22 97 2.35 2.25 6040 6.0 6.0 4.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se6040-220.html
MPL-SE2512-6R8
ACTIVE

Semi-Shielded Inductor 6.8μH

 Buy On MPS Semi-Shielded 6.8 305 1.2 1.6 2512 2.5 2.0 1.2 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se2512-6r8.html
MPL-SE4030-R68
ACTIVE

Semi-Shielded Inductor 0.68μH

 Buy On MPS Semi-Shielded 0.68 10 6 7.5 4030 4.0 4.0 3.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se4030-r68.html
MPL-SE4030-330
ACTIVE

Semi-Shielded Inductor 33μH

 Buy On MPS Semi-Shielded 33 330 1.1 1.2 4030 4.0 4.0 3.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se4030-330.html
MPL-SE4030-470
ACTIVE

Semi-Shielded Inductor 47μH

 Buy On MPS Semi-Shielded 47 480 0.9 1 4030 4.0 4.0 3.0 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/shielded-optimized-for-mps-dc-dc/mpl-se4030-470.html
MPL-AT2512-2R2
ACTIVE

Low-Profile Molded Inductor 2.2μH

 Buy On MPS Molded Low Profile 2.2 68 2.8 3.4 2512 2.50 2.0 1.20 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-at-molded-low-profile/mpl-at2512-2r2.html
MPL-AT2512-4R7
ACTIVE

Low-Profile Molded Inductor 4.7μH

 Buy On MPS Molded Low Profile 4.7 170 1.8 2.4 2512 2.50 2.0 1.20 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-at-molded-low-profile/mpl-at2512-4r7.html
MPL-AT2512-100C
ACTIVE

Low-Profile Molded Inductor, 10μH

 Buy On MPS Molded Low Profile 10 335 1.2 1.7 2512 2.50 2.0 1.20 125°C SMD 1 0 https://www.monolithicpower.com/en/mpl-at2512-100c.html
MPL-SR7345-4R7
ACTIVE

4.7μH Shielded Inductor

 Buy On MPS Shielded 4.7 24 4.8 6.4 7345 7.30 7.30 4.50 125°C SMD 1 0 https://www.monolithicpower.com/en/mpl-sr7345-4r7.html
MPL-AT2512-100
EOL
Low-Profile Molded Inductor 10µH
 Buy On MPS Molded Low Profile 10 355 1.2 1.7 2512 2.50 2.0 1.20 125°C SMD 1 0 https://www.monolithicpower.com/en/products/inductor/molded-optimized-for-mps-dc-dc/mpl-at-molded-low-profile/mpl-at2512-100.html
MPL-AT2514-4R7
OBSOLETE
Low-Profile Molded Inductor 4.7µH
 Molded Low Profile 4.7 180 1.7 2.4 2.50 2.0 1.40 125°C 1 0 https://www.monolithicpower.com/en/mpl-at2514-4r7.html
Load More No more parts left for display.
