Isolation
Isolation Solutions
MPS has an entire family of isolated solutions designed to meet the most stringent high-power requirements in harsh industrial and automotive applications. MPS’s isolated products use capacitive isolation to provide a robust solution with high CMTI and high immunity to magnetic noise, while minimizing supply current.
These products are ideal for high-power applications, such as solar inverters, DC fast charging stations, on-board chargers, traction inverters, battery storage/wall power, uninterruptible power supplies (UPS), and PLCs among many other AC/DC and DC/AC conversion applications.
Capacitive Isolation
High reliability
High isolation voltage
Small solution size
Innovative Solutions
High switching frequency up to 10MHz
Totem Pole PFC controller
Advanced protection features
Robust Solutions
Supports isolation up to 5kV
VDE/UL1577/CQC Certification
AEC-Q100 Qualified Solutions
Isolation Articles
Isolation Videos

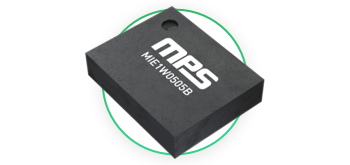

MIE1W0505BGLVH
5V, 1W, Regulated, 2.5kVRMS Isolated DC/DC Power Module
The MIE1W0505BGLVH is an isolated, regulated, DC/DC power module. It can support up to 3V to 5.5V input voltage (VIN) applications, up to 1W of output power (POUT), and features excellent load and line regulation.
The MIE1W0505BGLVH uses capacitive isolation technology for feedback blocking, which can regulate the output voltage (VOUT) without the need for a traditional optocoupler and shunt regulator. This module and higher reliability operation in a small form factor compared to traditional isolation power modules. The MIE1W0505BGLVH features continuous short-circuit protection (SCP) and over-temperature protection (OTP).
It is available in a small LGA-12 (4mmx5mm) package.
