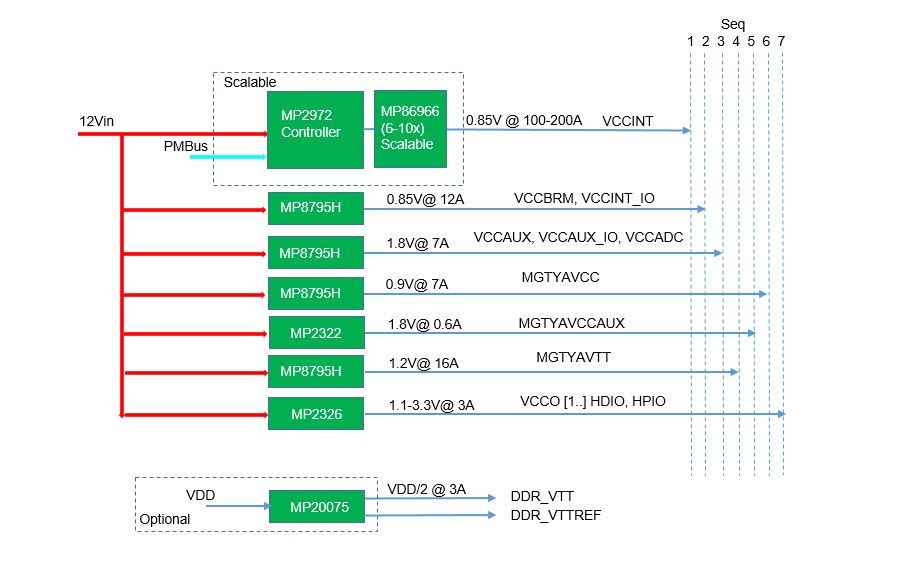

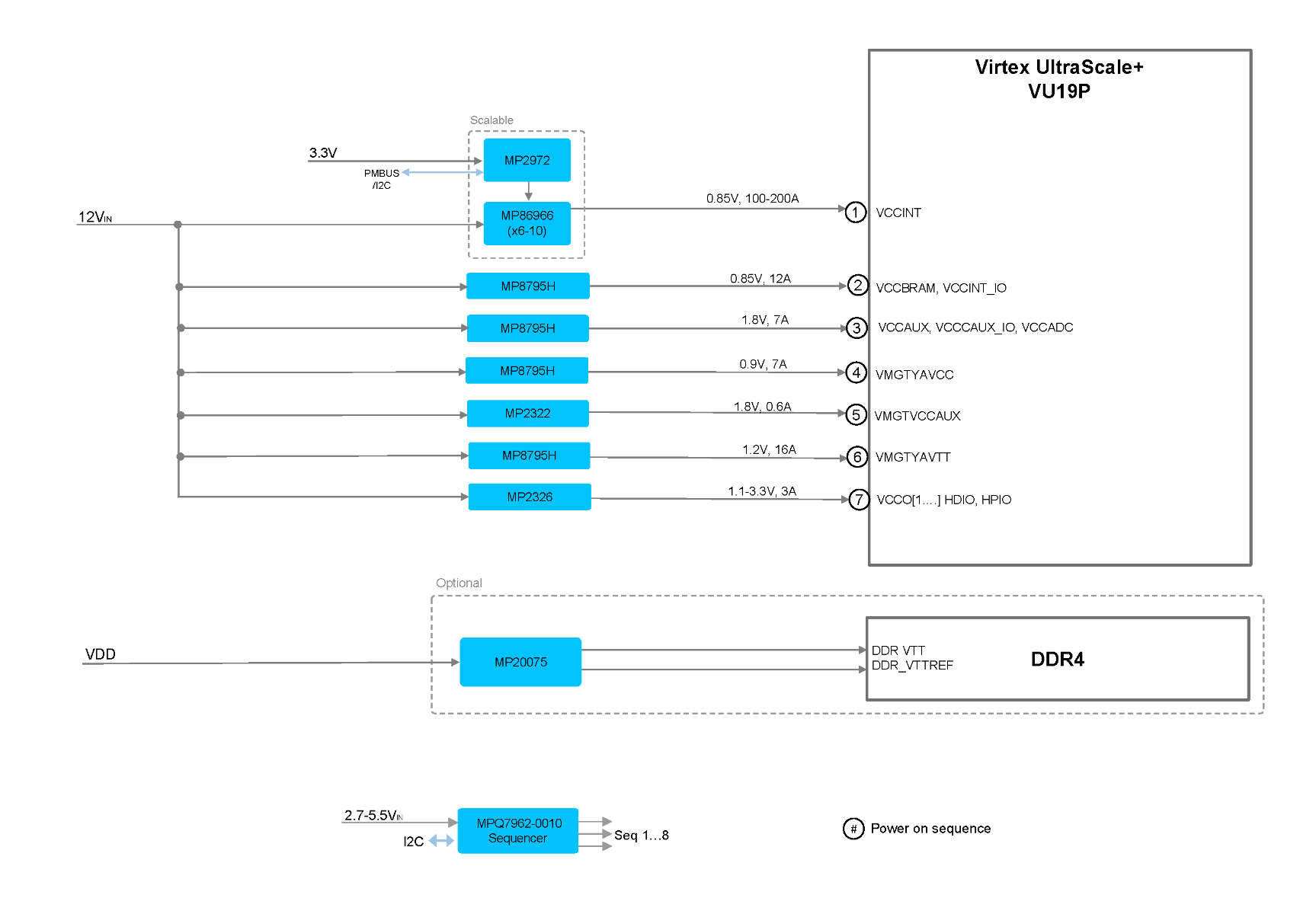

VU19P UltraScale+ Extended Portfolio High Efficiency Power Management Reference Design

REFERENCE DESIGN

Design Files:

For more information on reference designs

Contact Us

Response within 2 business days

AMD Xilinx part numbers

  • XCVU19P

                                                                           EVXLVU19A

MPS Products Used

Part Number Quantity Description
MP2972 1 Request Information
MP86966 1 Request Information
MP8795H 4 16V, 20A, Synchronous, Step-Down Converter with Adjustable Current Limit, Programmable Frequency, and Voltage Tracking
MP2322 1 1A, 3V to 22V, 5μA IQ, Synchronous, Step-Down Converter in a QFN-8 (1.5mmx2mm) Package
MP2326 1 4A, 19V, 40µA IQ, High Efficiency, Step-Down Converter with PG and External SS
MP20075 (Optional: 1) 3A, DDR Termination Regulator
MPQ7962-0010 1 Request Information
