MP6402

NOT RECOMMENDED FOR NEW DESIGNS

Dual Channel, 500mA Linear Regulator with Integrated Reset Circuit

ALTERNATIVE PART

NRFND Datasheet

MP6402 continues to be in production for existing customers. Please consider this alternative for new designs:

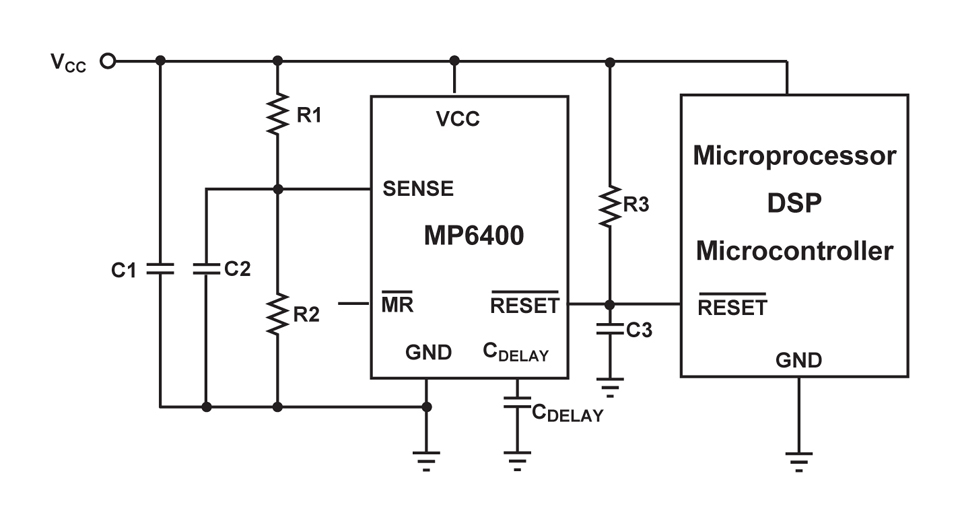

MP6400

low quiescent current programmable-delay supervisory circuit, Reset Voltage can be Preset or Adjustable

Features & Benefits

Fixed Threshold Voltages for Standard Voltage Rails From 0.9V to 5V and Adjustable Voltage From 0.4V are Available
Low Quiescent Current: 1.6uA Typ
Power-On Reset Generator with Adjustable
Delay Time: 2.1ms to 10s
High Threshold Accuracy: ±1% Typ
Manual Reset ( ) Input
Open-Drain Output
Immune to Short Negative SENSE Voltage
Guaranteed Reset Valid to VCC=0.8V
6-Pin TSOT23 and 2×2mm QFN

… and many more!

Description

The MP6402 is a dual-channel, high PSRR linear regulator with reset function.?The outputs range from 0.9V and 3.3V with ?.5% voltage accuracy at both channels by operating from a +2.5V to +5.5V input. OUT2 pin voltage is recommended to be higher than OUT1 pin voltage. Short circuit protection and thermal protection are built in to prevent damage caused by output short circuit and overloading, respectively. A reset circuit is designed to monitor output voltage of channel 2. The?becomes active (low) when OUT2 pin voltage drops below its threshold. To ensure that a complete reset occurs, the? remains active for a pre-set delay time. The delay time is programmable by the user through changing the external capacitor. The MP6402 is available in SOIC8E and 3x3mm TQFN8 packages and is specified for operation TJ from -40?C to +125?C.
