MP2752

MP2752

Bidirectional, 2:1/1:2, Switched Capacitor Converter

Description

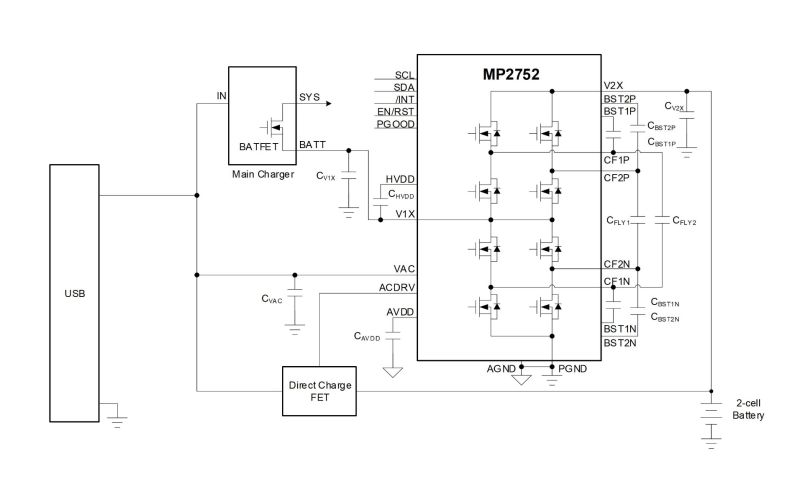

The MP2752 is a highly integrated bidirectional charging solution for 2-cell Li-ion or Li-polymer batteries. It uses a switched capacitor architecture that does not require an inductor, and can provide up to 10A of output current (I_OUT) in forward mode and up to 5A of charging current in reverse mode.

The MP2752 is suitable for applications migrating from 1-cell battery to 2-cell battery configurations. Combined with a 2-cell battery, the MP2752 can be treated as a virtual 1-cell battery, allowing the existing downstream 1-cell power architecture to be compatible with 2-cell battery packs.

The I²C interface offers complete operating control, charging/discharging parameter configuration, and status monitoring.

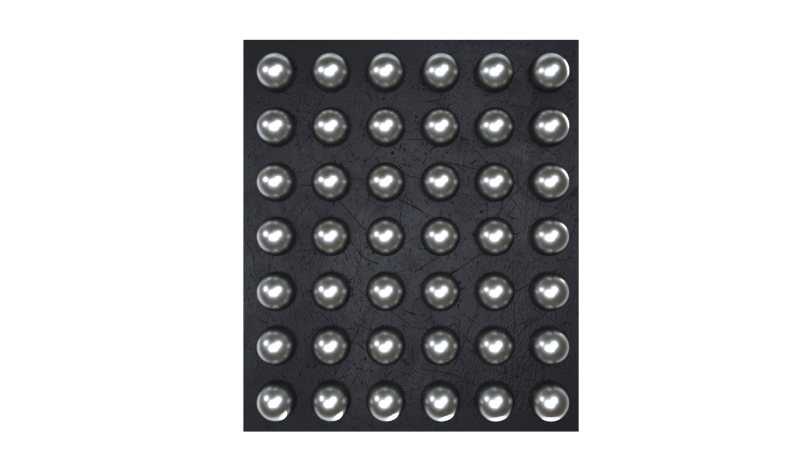

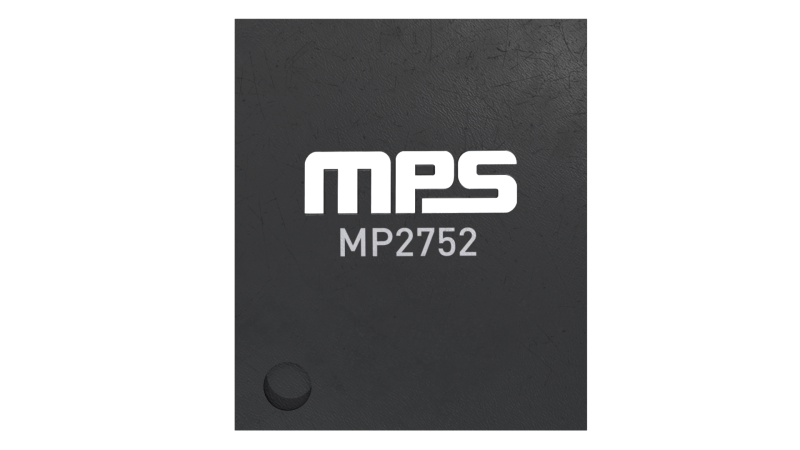

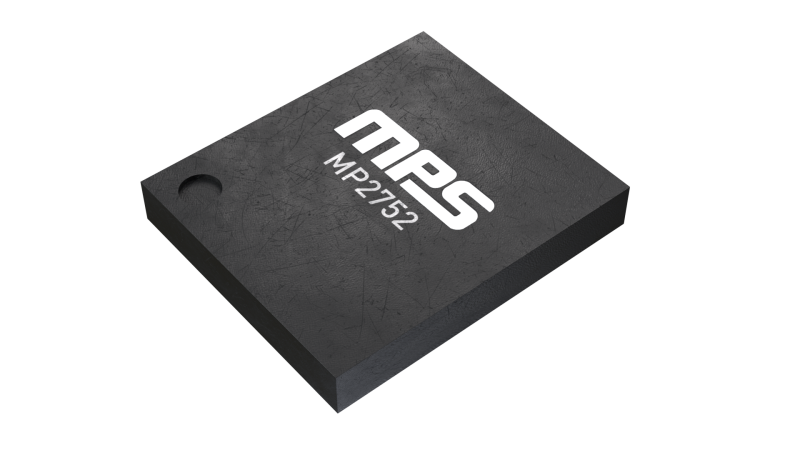

The MP2752 is available in a WLCSP-42 (2.9mmx2.55mm) package.

Features & Benefits

Bidirectional Switched Capacitor Converter:
- Forward 2:1 Conversion
- Reverse 1:2 Conversion
Dual-Phase Operation with Up to 10A of Output Current (I_OUT) Capability in Forward Direction
Up to 5A of Charge Current Capability in Reverse Direction
Up to 99.3% Efficiency in Forward Conversion
Audio Mode to Eliminate Audible Noise
Integrated External High-Side Driver for GAN FET or MOSFET
Dead Battery Activation Power Path
Shipping Mode Control
Available in a WLCSP-42 (2.90mmx2.55mm) Package

Active Part Numbers:

MP2752GC-xxxx-Z MP2752GC-xxxx-P MP2752GC-0000-Z MP2752GC-0000-P
